Piezoelectric ceramics transfer electrical energy to ultrasonic vibration and are widely used in various fields including actuators, arresters, sensors, ultrasonic medical treatment, ultrasonic cleaning, non-destructive metal detection, and underwater fish detection.

We can produce custom piezoelectric ceramic components based on customer samples, drawings, and application requirements. Available in disc and ring plate configurations with diameters from 4mm to over 70mm and thicknesses from below 0.1mm to over 30mm.

The surface features 700-800°C high-temperature sintering sealing glass glaze, providing bright appearance, strong acid and alkali resistance, and lifetime exceeding 5,000 hours. Our atomizing film features stable performance, small fog particles, large atomization capacity, and corrosion resistance.

• Positive and negative piezoelectric effect applications
• Piezoelectric Ceramic Buzzer | Speaker
• Piezoelectric ceramic pickup
• Piezoelectric transformer
• Piezoelectric ceramic igniter
• Ultrasonic beauty equipment
• Sonar, ultrasonic flowmeter
• Ultrasound medical equipment

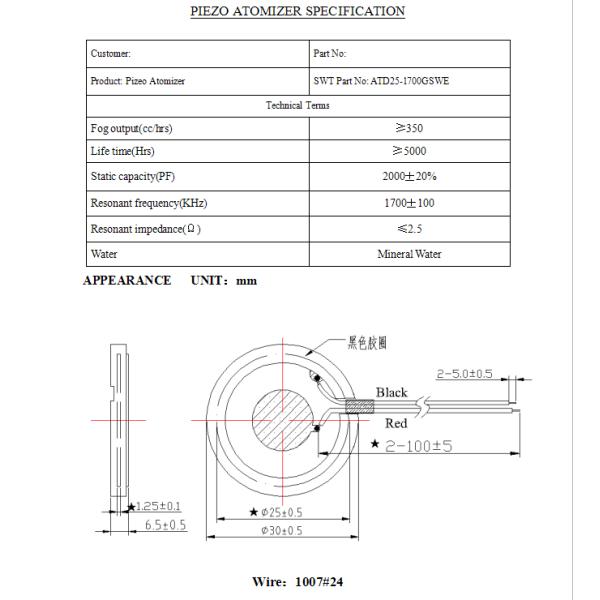

• Components: Piezoelectric vibrator, rubber ring, yellow wax tube, 1007 24AWG red and black electronic wire
• Electrode: Ag
• Electrode protector: glass glaze
• Lifetime: ≥ 5000 hours
• Piezo ceramic thickness: 1.7M frequency 1.25mm, 2.4M frequency 0.8-0.82mm, 3M frequency 0.75mm

• Produces negative ions and atomization simultaneously for sterilization and smoke deposition
• Generates cold water mist for cooling and humidifying air
• Improves oxygen absorption and carbon dioxide emission capacity
• Provides therapeutic effects for respiratory diseases and asthma
• Replenishes skin moisture without high-temperature burns
• Removes second-hand smoke, formaldehyde, carbon monoxide, bacteria and odors
