Waterproof OD 25mm 25khz transmitter and receiver Aluminum Ultrasonic transducer sensor
Waterproof OD 25mm 25khz transmitter and receiver Aluminum Ultrasonic transducer sensor
Waterproof OD 25mm 25khz transmitter and receiver Aluminum Ultrasonic transducer sensor
Waterproof OD 25mm 25khz transmitter and receiver Aluminum Ultrasonic transducer sensor
Waterproof OD 25mm 25khz transmitter and receiver Aluminum Ultrasonic transducer sensor
Waterproof OD 25mm 25khz transmitter and receiver Aluminum Ultrasonic transducer sensor
Waterproof OD 25mm 25khz transmitter and receiver Aluminum Ultrasonic transducer sensor
Waterproof OD 25mm 25khz transmitter and receiver Aluminum Ultrasonic transducer sensor
Specifications
Brand Name :
TaiMI
Model Number :
TM-A2525H12TR Ultrasonic transducer
Certification :
ROHS/REACH
Place of Origin :
CHINA
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
Western Union, MoneyGram, T/T ,PAYPAL
Supply Ability :
10000000/Month
Delivery Time :
2 weeks
Packaging Details :
safety packing
TYEP :
25MM,25KHZ waterproof sensor
Detectable range :
50~1500cm
Material :
aluminum case sensor
Max.input voltage :
150Vp-p
Frequency :
25khz
USE Method :
transmitter and receiver
Size :
25*12
Pins distance :
10mm
Description

Waterproof OD 25mm 25khz transmitter and receiver Aluminum Ultrasonic transducer sensor

DESCRIPTION: Ultrasonic Sensor

MODEL: TM-A2525H12TR

Waterproof OD 25mm 25khz transmitter and receiver Aluminum Ultrasonic transducer sensor

SPECIFICATIONS

Item Value
Using method Transmitter and Receiver
Center frequency 25±1.5KHz
Capacitance 2500±20% pF
Total Beam Angle -6dB 40°( Typical )
Max.Driving Voltage 180Vp-p
Operating Temperature -30~+70℃
Storage Temperature -40~+85℃
Housing material Aluminum
Weight 6g

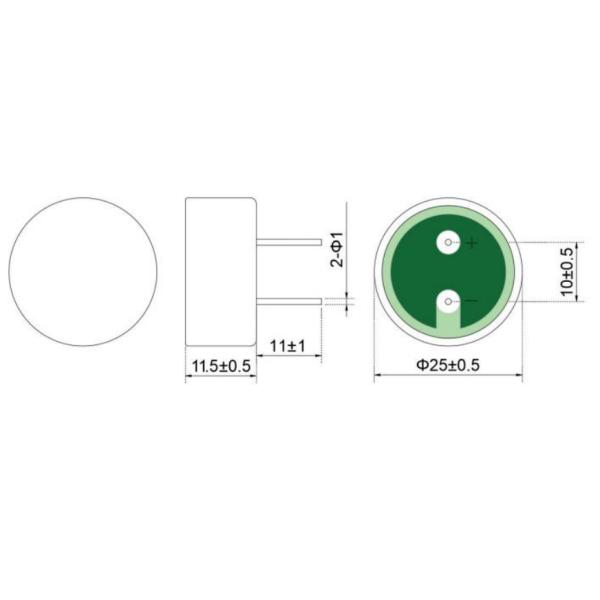

MECHANICAL DRAWING

unit:mm

Waterproof OD 25mm 25khz transmitter and receiver Aluminum Ultrasonic transducer sensor

TEST CIRCUITWaterproof OD 25mm 25khz transmitter and receiver Aluminum Ultrasonic transducer sensor

ENVIRONMENTAL CHARACTERISTICS

1. Sound pressure level and sensitivity shall not change by more than 15dB in temperature range of -20°C

to 60°C, at a relative humidity of 30%.

2. Sound pressure level and sensitivity shall not change by more than 6dB in the humidity of 10% to 90%, at

the temperature of 25° .

3. MOISTURE

Keep the sensor at 40°C±2°C and 90°C to 95°C R.H for 96±4 hours. Then, release the sensor into the room conditions for 24 hour prior to the measurement. It shall fulfill the specifications in Table 1.

4. VIBRATION

Subject the sensor to the vibration for 1 hour each in the X.Y and Z axes with the amplitude of 1.5mm

at 10 to 55 Hz. It shall fulfill the specifications in Table 1.

5. HIGH TEMPERATURE EXPOSURE

Subject the sensor to 80±5°C for 24± 1 hours. then, release the sensor into the room conditions for 1 hour prior to the measurement. It shall meet the specifications in Table 1.

4.6 LOW TEMPERATURE EXPOSURE

Subject the sensor to -30±5°C for 24± 1 hours. Then release the sensor into the room conditions for 1 hour prior to the measurement. It shall meet the specifications in Table 1.

TABLE 1

Waterproof OD 25mm 25khz transmitter and receiver Aluminum Ultrasonic transducer sensor
