Piezoelectric Horn Ultrasonic Speaker with 100 dB Sound Output, 20±5 kHz Resonant Frequency and ABS Material for Bird Dispelling
Piezoelectric Horn Ultrasonic Speaker with 100 dB Sound Output, 20±5 kHz Resonant Frequency and ABS Material for Bird Dispelling
Piezoelectric Horn Ultrasonic Speaker with 100 dB Sound Output, 20±5 kHz Resonant Frequency and ABS Material for Bird Dispelling
Piezoelectric Horn Ultrasonic Speaker with 100 dB Sound Output, 20±5 kHz Resonant Frequency and ABS Material for Bird Dispelling
Piezoelectric Horn Ultrasonic Speaker with 100 dB Sound Output, 20±5 kHz Resonant Frequency and ABS Material for Bird Dispelling
Piezoelectric Horn Ultrasonic Speaker with 100 dB Sound Output, 20±5 kHz Resonant Frequency and ABS Material for Bird Dispelling
Piezoelectric Horn Ultrasonic Speaker with 100 dB Sound Output, 20±5 kHz Resonant Frequency and ABS Material for Bird Dispelling
Piezoelectric Horn Ultrasonic Speaker with 100 dB Sound Output, 20±5 kHz Resonant Frequency and ABS Material for Bird Dispelling
Specifications
Brand Name :
TAIMI
Model Number :
TM-5120 Swallow nest dispelling bird ultrasonic horn speaker
Certification :
ISO9001、ISO14001、IATF16949
Place of Origin :
CHINA
MOQ :
1000PCS
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
1000000/month
Delivery Time :
10~15days
Packaging Details :
safe packaging
Material :
ABS Swallow nest dispelling bird ultrasonic horn speaker
Operating voltage :
3-24V Swallow nest dispelling bird ultrasonic horn speaker
Rated Voltage (Vrms) :
2.83VDC
Function :
Swallow nest dispelling bird ultrasonic horn speaker
Min Sound Output :
100 dB 12VDC/30cm
Warrenty :
3 years
Operating temperature :
-20℃ to 70℃
Type :
ultrasoinc speaker waterproof type Swallow nest dispelling bird
Sound Output at 10cm (dB) :
≥100
Weight :
6 g
Resonant Frequency :
20±5 khz
Size / Dimension :
51mm
Efficiency - Type :
Sound Pressure Level (SPL)
Temp. range :
-20℃~60℃
Capacitance 120Hz (PF) :
20000±500
Operating Voltage (Vrms) :
30 max
Description

Piezoelectric swallow house bird guiding horn piezo tweeter ultrasonic driving UAV shouting speaker



1. Description


Swallow nest dispelling bird ultrasonic horn speaker 5120 20khz 25khz

Model
TM-5120/5117
Rated Voltage (Vrms)
2.83
Operating Voltage (Vrms)
30 max
Resonant Frequency (Hz)
25000~60000
Capacitance 120Hz (PF)
20000±5000
Sound Output at 30cm (dB)
≥100
Operating Temperature (℃)
-20～+70
Storage Temperature (℃)
-30～+80
Weight (g)
7
RoHs
Yes


Piezoelectric Horn Ultrasonic Speaker with 100 dB Sound Output, 20±5 kHz Resonant Frequency and ABS Material for Bird Dispelling

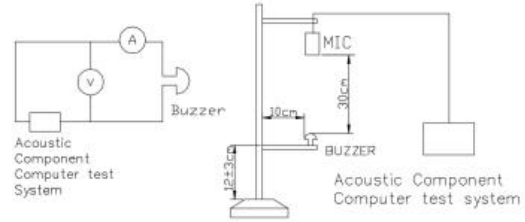

Test Circuit
Piezoelectric Horn Ultrasonic Speaker with 100 dB Sound Output, 20±5 kHz Resonant Frequency and ABS Material for Bird Dispelling
Frequency Response
Piezoelectric Horn Ultrasonic Speaker with 100 dB Sound Output, 20±5 kHz Resonant Frequency and ABS Material for Bird Dispelling



FAQ


1. Q: When can we get the reply?
Any inquiries will be replied within 24 hours.
2. Q: Can i have samples?
A: Yes. Sample is surely ok. We can even send you free sample and you should only pay for the freight fee.
3. Q: What about minimum order quantity?
A: We have no limit for MOQ, so you can even buy only 1 piece. Welcome to buy sample to test first.
4. Q: What about delivery time?
A: We will send sample to you within 3 days.
Production for big quantity needs 20 to 25 days. And it also depends on product and quantity.
5. Q: What about terms of payment?
A: Payment terms: T/T, west Union, Paypal and L/C etc.
6. Q: How you will send the goods to us?
A: We will send the goods to you by Air (DHL, Fedex, UPS, TNT) and Sea shipping etc.
7. Q: Are you trading company or manufacturer ?
A: We are in China buzzer manufactory
8. Q: Do you support OEM and ODM services?
A: Yes, surely support. we can customize products according to the drawing.
9. Q: Can you provide driven circuit?
A: Yes, of course sure.
10. Q: Can you solve technical problems for us?
A: Yes, Our Technical team will try our best to support you.
