Specifications
Brand Name :
TAIMI
Model Number :
TM-3825 Ultrasonic Horn Transducer Speaker
Certification :
ISO9001、ISO14001、IATF16949
Place of Origin :
CHINA
MOQ :
1000PCS
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
1000000/month
Delivery Time :
10~15days
Packaging Details :
safe packaging
Material :
ABS tweeter loudspeaker
Operating voltage :
3-24V Piezoelectric ultrasonic horn
Rated Voltage (Vrms) :
2.83VDC
Function :
Rat repellent dog mosquito bat insect mite removal 25 35 40K
Min Sound Output :
95dB 12VDC/30cm
Warrenty :
5 years
Operating temperature :
-20℃ to 70℃
Type :
ultrasoinc speaker 25KHZ
Sound Output at 10cm (dB) :
≥100
Weight :
6 g
Resonant Frequency :
20±5 khz

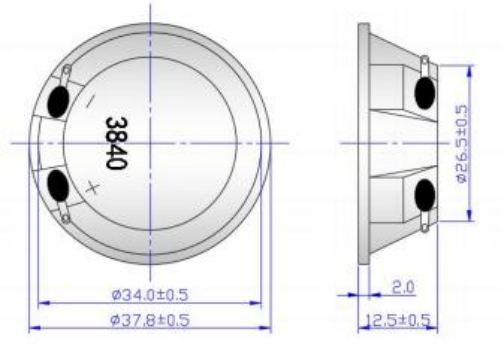

Size / Dimension :
38*12mm
Efficiency - Type :
Sound Pressure Level (SPL)
Temp. range :
-20℃~60℃
Capacitance 120Hz (PF) :
20000±500
Operating Voltage (Vrms) :
30 max
Description
Piezo Ultrasonic horn loudspeaker Rat repellent dog mosquito bat insect mite removal 25 35 40K
Description

38MM 25KHZ Piezo Ultrasonic horn loudspeaker Rat repellent dog mosquito bat insect mite removal installation use speaker

Specification
No. Parameter Value
1 Model No. TM-3825 ultrasonic speaker
2 Rated Voltage (Vp-p) 5.5V
3 Operating Voltage (Vp-p) 30V
4 *Resonant Frequency (Hz) 25±5KHz
5 Rated Frequency Range 2.5-50KHz

Capacitance at 100Hz 40,000pF±30%
6 *Sound Output at 50cm (dB) ≥90dB/50cm/5.5V

paper cone paper cone
7 Operating Temperature (℃) -20~+70
8 Storage Temperature (℃) -30~+80
ABS Ultrasonic Transducer Speaker 25KHZ Piezo Horn Loudspeaker for Rat Repellent and Pest Control

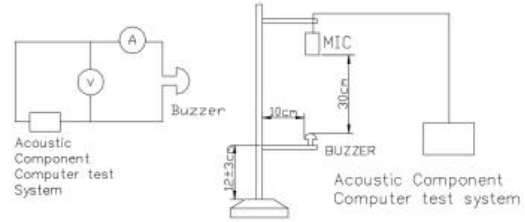

Ultrasonic Test Circuit
ABS Ultrasonic Transducer Speaker 25KHZ Piezo Horn Loudspeaker for Rat Repellent and Pest Control

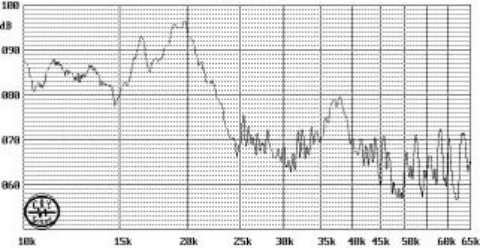

Ultrasonic Frequency Response
ABS Ultrasonic Transducer Speaker 25KHZ Piezo Horn Loudspeaker for Rat Repellent and Pest Control
Reliability Test
ITEM TESTING CONDITION VARIANCE AFTER TEST

High Temperature Test


After being worked in a chamber at +70±2℃ for 2h and then being placed in natural condition for 2h,sounder shall be measured.


After test,the transducr S.P.L.difference shall be within ±10dB,and the appearance not exist any change to be harmful to normal operation(e.g.cracks,rusts,damages and especially distortion)

Low Temperature Test


First being worked in a chamber at -30 ± 2 ℃ for 2h and then being planed in a chamber at -30±2℃ for16h,finally being placed in natural condition for2h,sounder shall be measured.

Humidity Test


After being placed in a chamber with 90 to 95%R.H.at+40 ± 2 ℃ for 48h and then being placed in natural condition for 2h,sounder shall be measured.

Vibration Test


Sounder shall be measured after being applied vibration of amplitude of 0.75mm with 10 to30 to10Hz band of vibration frequency to each of 3 perpendicular directions for 1hour.

Freely Falling Test


Sounder shall be measured after freely falling the products from 0.8m high to the wooden board with three sides per time.

Collision Test


Sounder shall be measured after the test of acceleration 100 ± 10m/s²,impulse lasting time 16ms,repeat frequency 1~3/min and time 1000±10.

Solderability


Lead terminals are immersed in rosin for 3 seconds and then immersed in solder bath at +250 ± 5 ℃ for 3 ± 0.5 seconds,terminals should be covered with the clean solder.

Terminal Strength Pulling


The force 10 seconds of 1N is applied to each terminal in axial direction.no looseness and falling off.
