Specifications
Brand Name :
UTOPTEK
Model Number :
UT-AT13G-C
Certification :
CE
Place of Origin :
China
MOQ :
100pcs
Payment Terms :
T/T,WU,Paypal,Alipay,RMB pay
Supply Ability :
10Kpcs per month
Delivery Time :
2-3days
Packaging Details :
200pcs/Carton,328x275x378mm,14.3KG
Data Rate :
10/100M Or 1000Mbps
Product name :
POE Repeater
POE input :
Port 1: 44~57V/30W max
Power output :
Port 2~3: 44~57V/25W max
POE Standard :
IEEE802.3af/at
POE pin :
1,2+/3,6-
Dimension :
98mm×148mm×34mm
Weight :
180g
Power Consumption :
IEEE802.3af/at
Working temperature :
-10~+60 degrees
Description

POE Extender 10/100M or 1000Mbps 1-IN 3-OUT, 100m
POE Input:44~57V/30W, POE Output(1~3):44~57V/25W, IEEE802.3AF/AT, for Cameras wireless AP

Product Description:

The AT13G-C is a 10/100/1000Mbps Ethernet PoE extender, which provides 1*Gigabit IEEE802.3af/at (PoE) powered port input and 3*1000Mbps IEEE802.3af/at (PoE) powered ports output. The whole device power is 30W, the maximum output power of each port is 25W.

Features:

  • With one IEEE802.3af/at (PoE/30w) power input port
  • with three IEEE802.3af/at (PoE) power ports for output
  • Has network and POE relay extension function
  • It has one click VLAN function

Technical Parameters:

Network Standard IEEE 802.3,IEEE 802.3u,IEEE 802.3x,IEEE 802.3AF/AT
Port

3*10/100/1000Mbps RJ45 power supply output port

1*10/100/1000Mbps RJ45 receiving input port
POE Power

Input power: 30W max

Output power: 24W max, average 8W per port.
POE Connection

POE input receiving wire core: 1/2+, 3/6-, 4/5+, 7/8-

POE output power supply core: 1/2+, 3/6-

100M Transmission
Performance

Store and forward

MAC address table 2k

Switching capacity 10Gbps
Forwarding Rate

10BASE-T:14880PPS/port

100BASE-tx:148800pps/port

1000BASE-tx:1488000pps/port
Port Function Power priority mechanism, fast and forward, MAC automatic learning and aging IEEE802.3X Full-duplex and backpressure for half-duplex mode
Environment Operating Temperature:-10℃--55℃
Power Input:DC44-57V,30W; Output:DC44-57V, 24W
Weight &Size 180g, 98mm×148mm×34mm(L×W×H)

Packing and Shipping:

UTOPTEK's POE Repeater are packaged in a foam boxes for protection during shipping. The box is then placed inside a larger shipping box with adequate packing materials to prevent damage during shipping and handling. All shipping boxes are labeled with the product name, Model number, and can be customized customer's Logo too.

The product is shipped via a reliable courier service such as FedEx, UPS, or DHL. Tracking numbers are provided to customers once the product has been shipped.

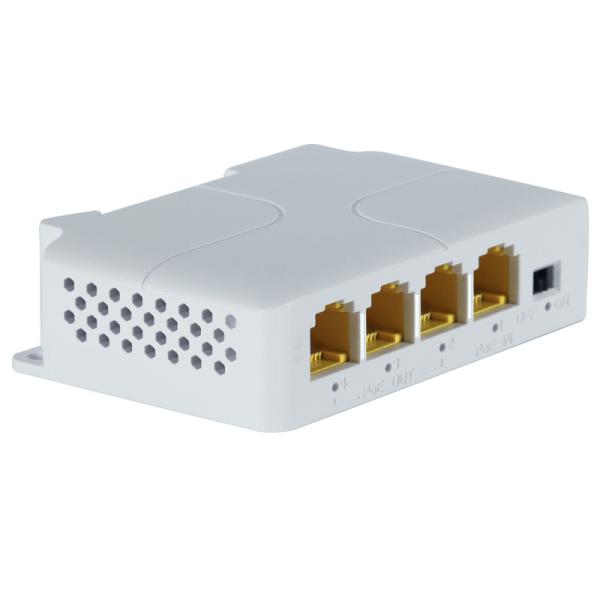

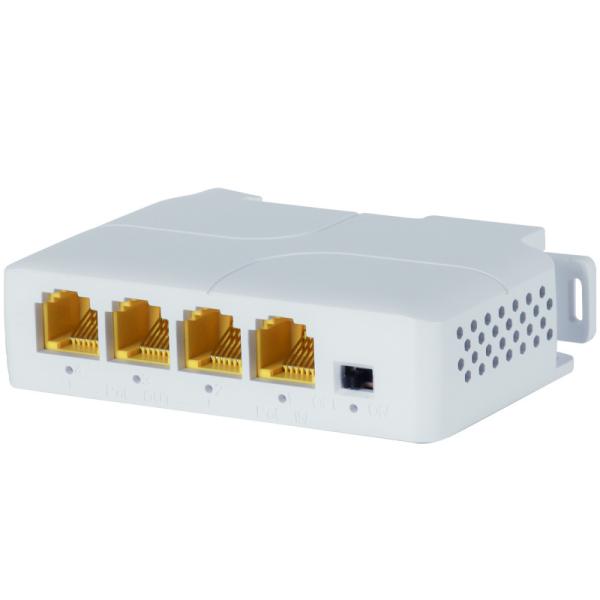

Product photoes:

DIN Rail POE Repeater Extender 1In 3Out 100m POE Input:44~57V/30W, POE Output 25W IEEE802.3AF/ATDIN Rail POE Repeater Extender 1In 3Out 100m POE Input:44~57V/30W, POE Output 25W IEEE802.3AF/ATDIN Rail POE Repeater Extender 1In 3Out 100m POE Input:44~57V/30W, POE Output 25W IEEE802.3AF/ATDIN Rail POE Repeater Extender 1In 3Out 100m POE Input:44~57V/30W, POE Output 25W IEEE802.3AF/ATDIN Rail POE Repeater Extender 1In 3Out 100m POE Input:44~57V/30W, POE Output 25W IEEE802.3AF/ATDIN Rail POE Repeater Extender 1In 3Out 100m POE Input:44~57V/30W, POE Output 25W IEEE802.3AF/ATDIN Rail POE Repeater Extender 1In 3Out 100m POE Input:44~57V/30W, POE Output 25W IEEE802.3AF/AT

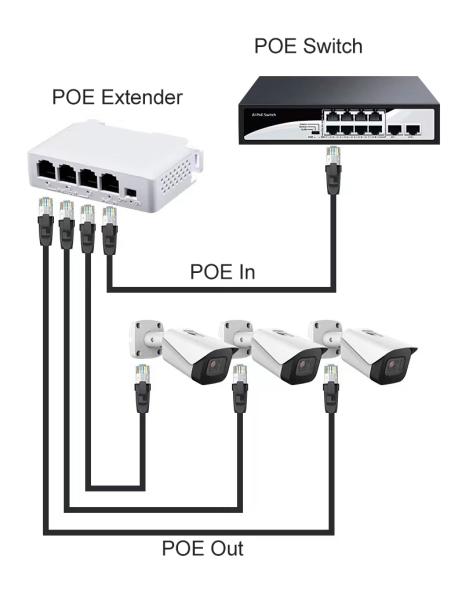

Product Application:

DIN Rail POE Repeater Extender 1In 3Out 100m POE Input:44~57V/30W, POE Output 25W IEEE802.3AF/ATDIN Rail POE Repeater Extender 1In 3Out 100m POE Input:44~57V/30W, POE Output 25W IEEE802.3AF/AT

Ordering Models:

FAQ:

Q1 . What's your MOQ?

A1 .1 pc/pair is ok, we don't have MOQ limited.

Q2.What certification did you get?
A2 : Our products passed the CE,FCC,ROHS and SGS test, you can trust our quality very good.

Q3 :What about your delivery time?
A3:For small sample QTY,we have in stock, need 1day.
For QTY 200-500, usually will take 2-3working days. for big QTY pls contact our sales about details.

Q4.What your common shipping method?
A4:By air, by sea or express(DHL,Fedex,UPS,TNT,EMS...), We will make a perfect delivery plan for you.

Q5.How about your product warranty time?
A5:Our products have 1/3/5years warranty for different product series.

Q6. How to handle quality issues with your product?
We give you the promise if any question during 1 year and not cause by human factors, we will fix it.
