10/100/1000Base-T Electric RJ45 Copper SFP module GLC-T cisco Compatible
10/100/1000Base-T Electric RJ45 Copper SFP module GLC-T cisco Compatible
10/100/1000Base-T Electric RJ45 Copper SFP module GLC-T cisco Compatible
10/100/1000Base-T Electric RJ45 Copper SFP module GLC-T cisco Compatible
Specifications
Brand Name :
UTOPTEK
Model Number :
UT-GLC-T
Certification :
CE FCC RoHs
Place of Origin :
China
MOQ :
2pcs
Payment Terms :
T/T, Western Union,Paypal, Alipay,Wechat etc.
Supply Ability :
2000pcs per week
Delivery Time :
1-2days
Packaging Details :
10pcs to one plastic plate
Transmission speed :
10/100/1000Mbps
Interface :
Rj45
Distance :
100M
DDM Function :
Support
Power supply :
3.3V
Working Temperature :
0~70℃
Ethernet Cable :
Cat 5 UTP
Warranty :
3 years
Compatible :
Cisco,Huawei,HP,H3C,Juniper,Extreme etc..
Description

10/100/1000BASE-T SFP Copper Transceiver
Hot Pluggable, 1.25Gb/s,Cat-5 UTP Cable, 100m


Description:

UTOPTEK’s UT-GLC-T 10/100/1000BASE-T copper SFP transceiver is high performance, cost effective module compliant with the Gigabit Ethernet and 10/100/1000BASE-T standards as specified in IEEE 802. 3-2002 and IEEE 802.3ab, which supporting 10/100/1000Mbps data- rate up to 100 meters reach over unshielded twisted-pair category 5 cable. The UT-GLC-T supports 10/100/1000 Mbps full duplex data-links with 5-level Pulse Amplitude Modulation (PAM) signals. All four pairs in the cable are used with symbol rate at 250Mbps on each pair. The UT-GLC-T provides standard serial ID information compliant with SFP MSA, which can be accessed with address of A0h via the 2-wire serial CMOS EEPROM protocol. The physical IC can also be accessed via 2-wire serial bus at address ACh..

Features:

Brand UTOPTEK, OEM
Condition100% New
Form FactorSFP
UTP cableCat5,Cat6
Distance100M
Data Rate (max)1.25G
Working Temperature (°C)0°C~70°C

Storage Temperature (°C)

 -40°C~+85°C

Relative Humidity

 0~85%
Voltage Supply3.3--5v
ConnectorRJ-45
Warranty3 years
Compatible with Cisco, Huawei, HP etc.
Time of delivery 1-2 working days
Package10 pcs/box


Applications:

  • 1.25 Gigabit Ethernet over Cat 5 cable
  • Switch/Router to Switch/Router Link
  • High speed I/O for file severs

Factory Show:
10/100/1000Base-T Electric RJ45 Copper SFP module GLC-T cisco Compatible

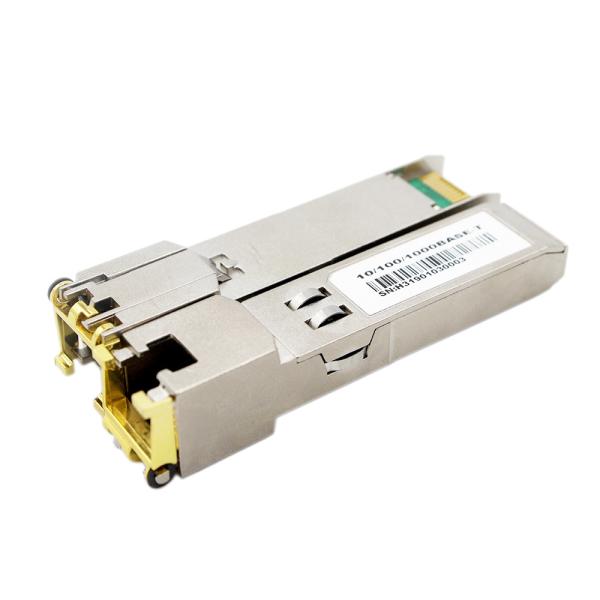

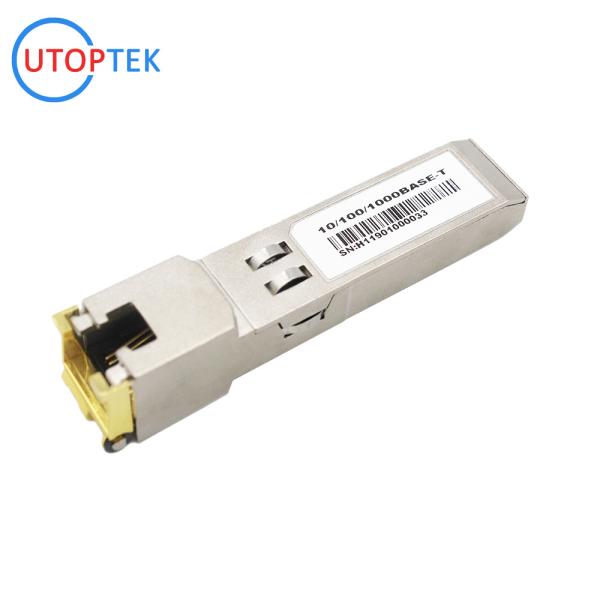

Products Picture:

10/100/1000Base-T Electric RJ45 Copper SFP module GLC-T cisco Compatible10/100/1000Base-T Electric RJ45 Copper SFP module GLC-T cisco Compatible

Mechanical Dimensions:

10/100/1000Base-T Electric RJ45 Copper SFP module GLC-T cisco Compatible

10/100/1000Base-T Electric RJ45 Copper SFP module GLC-T cisco Compatible

Ordering Information:

Part No.Data RateForm FactorDistanceWavelengthTransmitterReceiverInterfaceTemp.
SFP-FE-T100MbpsSFP100m///RJ450-70℃
SFP-GE-T1000MbpsSFP100m///RJ450-70℃
SFP-10G-T10000MbpsSFP80m///RJ450-70℃
SFP-10G-T10000MbpsSFP30m///RJ450-70℃
