Cisco Compatible QSFP 40G SR4 MTP/MPO Connector 150m fiber Optical Transceiver
Cisco Compatible QSFP 40G SR4 MTP/MPO Connector 150m fiber Optical Transceiver
Cisco Compatible QSFP 40G SR4 MTP/MPO Connector 150m fiber Optical Transceiver
Cisco Compatible QSFP 40G SR4 MTP/MPO Connector 150m fiber Optical Transceiver
Cisco Compatible QSFP 40G SR4 MTP/MPO Connector 150m fiber Optical Transceiver
Cisco Compatible QSFP 40G SR4 MTP/MPO Connector 150m fiber Optical Transceiver
Specifications
Brand Name :
UTOPTEK
Model Number :
QSFP-40G-SR4
Certification :
CE FCC RoHs
Place of Origin :
China
MOQ :
1piece
Payment Terms :
T/T, Western Union,Paypal, Alipay,Wechat etc.
Supply Ability :
5000pcs per month
Delivery Time :
1-2days
Packaging Details :
5pcs to one plastic plate
Transmission speed :
40Gb/s
Connector :
MPO/MTP
Distance :
150meters
DDM Function :
Support
Power supply :
3.3V
Working Temperature :
0~70℃
Wavelength :
TRx: 850nm
Warranty :
3 years
Compatible :
Cisco,Huawei,HP,H3C,Juniper,Extreme etc..
Fiber optical cable :
OM3 MMF or OM4 MMF
Description

40Gb/s 100m QSFP+ Transceiver
Hot Pluggable, MTP/MPO Connector, 850nm, VCSEL, Multimode

1.Features:

  • 4 independent full-duplex channels
  • Up to 11.2Gbps per channel bandwidth
  • Aggregate bandwidth of > 40Gbps
  • MTP/MPO optical connector
  • QSFP MSA compliant
  • Digital diagnostic capabilities
  • Capable of over 100m transmission on OM3 Multimode Fiber (MMF)and 150m on OM4 MMF
  • CML compatible electrical I/O
  • Single +3.3V power supply operating
  • TX input and RX output CDR retiming
  • Built-in digital diagnostic functions
  • Temperature range 0°C to 70°C
  • RoHS Compliant Part

2.Specifications:

Brand UTOPTEK, OEM
Condition 100% New
Form Factor QSFP+
Fiber Type Multi mode
Wavelength: TRx850nm
Distance

100m on OM3 Multimode Fiber (MMF)

150m on OM4 MMF
Data Rate (max) 40Gb/s
Working Temperature (°C) 0°C~70°C
Storage Temperature (°C) -40°C~+85°C
Relative Humidity 0~85%
Voltage Supply 3.3V
Power consuption

<2.5W
Connector MPO/MTP
Warranty 3 years
Compatible with Cisco, Haiwei, HP etc.
Time of delivery 1-2 working days
Package 4pcs/bag

3.Applications:

  • 40G Ethernet (40GBASE-SR4)
  • Proprietary high speed, high density data transmission.
  • Switch and router high speed backplane interconnect
  • High performance computing, server and data storage.

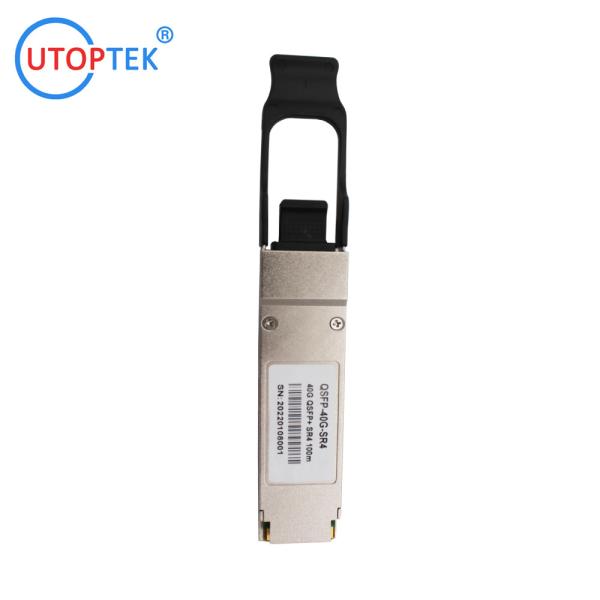

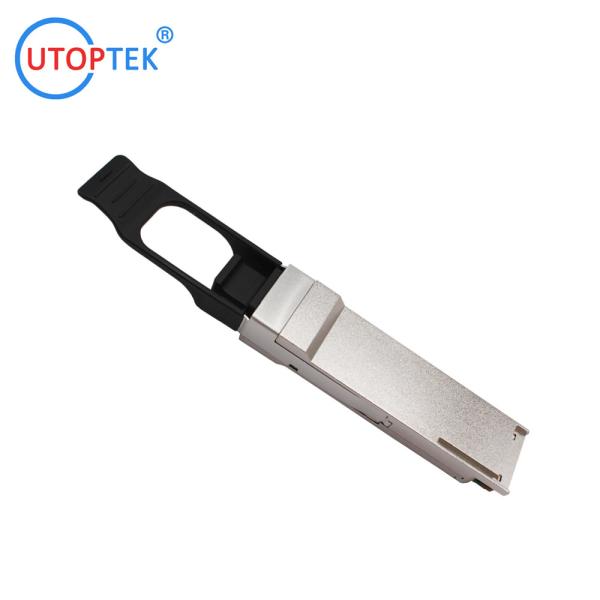

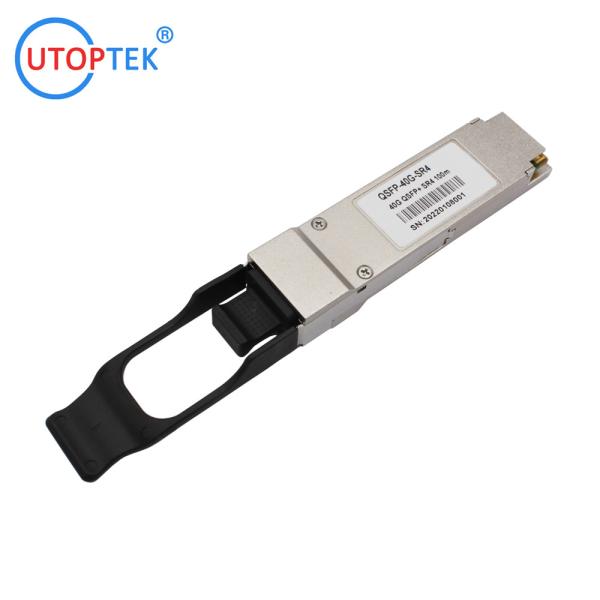

4.Products Picture:

Cisco Compatible QSFP 40G SR4 MTP/MPO Connector 150m fiber Optical TransceiverCisco Compatible QSFP 40G SR4 MTP/MPO Connector 150m fiber Optical Transceiver

5.Compatible Testing:

Cisco Compatible QSFP 40G SR4 MTP/MPO Connector 150m fiber Optical Transceiver

Cisco Compatible QSFP 40G SR4 MTP/MPO Connector 150m fiber Optical Transceiver


6.Related products:

Part No. Data Rate Form Factor Distance Wavelength Transmitter Receiver Interface Temp.
QSFP-40G-SR4 40Gb/s QSFP+ 100m 850nm VCSEL PIN MPO 0-70℃
QSFP-40G-SR-2KM 40Gb/s QSFP+ 2km 1310nm DFB PIN MPO 0-70℃
QSFP-40G-LR-S 40Gb/s QSFP+ 10km 1310nm DFB PIN MPO 0-70℃
QSFP-40G-LR4 40Gb/s QSFP+ 10km 1310nm DFB PIN LC 0-70℃
QSFP-40G-ER4 40Gb/s QSFP+ 40km 1310nm DFB APD LC 0-70℃
