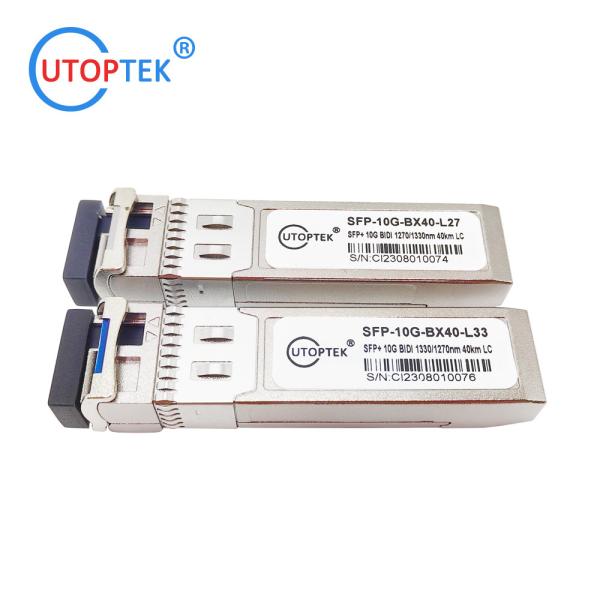

Utoptek 10G LC BIDI 40km Tx1270 Rx1330 Fiber Optical SFP Transceiver Module
Utoptek 10G LC BIDI 40km Tx1270 Rx1330 Fiber Optical SFP Transceiver Module
Utoptek 10G LC BIDI 40km Tx1270 Rx1330 Fiber Optical SFP Transceiver Module
Utoptek 10G LC BIDI 40km Tx1270 Rx1330 Fiber Optical SFP Transceiver Module
Utoptek 10G LC BIDI 40km Tx1270 Rx1330 Fiber Optical SFP Transceiver Module
Utoptek 10G LC BIDI 40km Tx1270 Rx1330 Fiber Optical SFP Transceiver Module
Utoptek 10G LC BIDI 40km Tx1270 Rx1330 Fiber Optical SFP Transceiver Module
Utoptek 10G LC BIDI 40km Tx1270 Rx1330 Fiber Optical SFP Transceiver Module
Utoptek 10G LC BIDI 40km Tx1270 Rx1330 Fiber Optical SFP Transceiver Module
Utoptek 10G LC BIDI 40km Tx1270 Rx1330 Fiber Optical SFP Transceiver Module
Utoptek 10G LC BIDI 40km Tx1270 Rx1330 Fiber Optical SFP Transceiver Module
Utoptek 10G LC BIDI 40km Tx1270 Rx1330 Fiber Optical SFP Transceiver Module
Specifications
Brand Name :
UTOPTEK
Model Number :
SFP-10G-BX40-L27/33
Certification :
CE FCC RoHs
Place of Origin :
China
MOQ :
2pcs
Payment Terms :
T/T, Western Union,Paypal, Alipay,Wechat etc.
Supply Ability :
2000pcs per month
Delivery Time :
1-2days
Packaging Details :
10pcs to one plastic plate
Transmission speed :
10Gb/s
Fiber Type :
Single-mode,Single LC
Distance :
40km
DDM Function :
Support
Power supply :
3.3V
Working Temperature :
0~70℃
Wavelength :
Tx1330nm/Rx1270nm
Warranty :
3 years
Compatible :
Cisco,Huawei,HP,H3C,Juniper,Extreme etc..
Description

10Gb/s 40km SFP+ Transceiver Hot Pluggable, Single LC, +3.3V, 1270nm/1330nm DFB, DDM
SFP-10G-BX40-L27 (Tx1270nm/Rx1330nm)
SFP-10G-BX40-L33 (Tx1330nm/Rx1270nm)
Utoptek 10G LC BIDI 40km Tx1270 Rx1330 Fiber Optical SFP Transceiver Module
Features:

  • Up to 40 km transmission on SMF
  • Up to10.3125Gbps
  • 1270nm DFB laser and PIN receiver
  • 1330nm DFB laser and PIN receiver
  • Electronic Interface compliant with SFF-8431
  • 2-wire interface for integrated Digital Diagnostic monitoring
  • SFP+ MSA package with single LC connector
  • Hot pluggable
  • Very low EMI and excellent ESD protection
  • +3.3V power supply
  • Power consumption less than 1.0W
  • Operating case temperature: 0~+70°C

Brand UTOPTEK, OEM
Condition 100% New
Form Factor SFP+
Wavelength: Tx1330nm/Rx1270nm
Distance 40KM
Data Rate (max) 10Gb/s
Working Temperature (°C) 0°C~70°C
Storage Temperature (°C) -40°C~+85°C
Relative Humidity 0~85%
Voltage Supply 3.3--5v
Power consuption

<1.5W
Connector Simplex LC
Warranty 3 years
Compatible with Cisco, Haiwei, HP etc.
Time of delivery 1-2 working days
Package 10 pcs/box

Factory Show:

Utoptek 10G LC BIDI 40km Tx1270 Rx1330 Fiber Optical SFP Transceiver Module

Ordering Information:

10Gbps SFP+ Transceiver
Part No. Data Rate Form Factor Distance Wavelength Transmitter Receiver Interface Temp.
SFP-10G-SR 10Gb/s SFP+ 300m 850nm VCSEL PIN LC 0-70℃
SFP-10G-LR10 10Gb/s SFP+ 10km 1310nm DFB PIN LC 0-70℃
SFP-10G-LR 10Gb/s SFP+ 20km 1310nm DFB PIN LC 0-70℃
SFP-10G-ERM 10Gb/s SFP+ 40km 1310nm DFB APD LC 0-70℃
SFP-10G-ER 10Gb/s SFP+ 40km 1550nm EML PIN LC 0-70℃
SFP-10G-ZR 10Gb/s SFP+ 60km 1550nm EML APD LC 0-70℃
SFP-10G-ZR 10Gb/s SFP+ 80km 1550nm EML APD LC 0-70℃
SFP-10G-ZR100 10Gb/s SFP+ 100km 1550nm EML APD LC 0-70℃
SFP-10G-BX20-L27 10Gb/s BiDi SFP+ 20km Tx1270/Rx1330nm DFB PIN LC 0-70℃
SFP-10G-BX20-L33 10Gb/s BiDi SFP+ 20km Tx1330/Rx1270nm DFB PIN LC 0-70℃
SFP-10G-BX40-L27 10Gb/s BiDi SFP+ 40km Tx1270/Rx1330nm DFB PIN LC 0-70℃
SFP-10G-BX40-L33 10Gb/s BiDi SFP+ 40km Tx1330/Rx1270nm DFB PIN LC 0-70℃
SFP-10G-BX60-L27 10Gb/s BiDi SFP+ 60km Tx1270/Rx1330nm DFB APD LC 0-70℃
SFP-10G-BX60-L33 10Gb/s BiDi SFP+ 60km Tx1330/Rx1270nm DFB APD LC 0-70℃
SFP-10G-BX80-L49 10Gb/s BiDi SFP+ 80km Tx1490/Rx1550nm EML APD LC 0-70℃
SFP-10G-BX80-L55 10Gb/s BiDi SFP+ 80km Tx1550/Rx1490nm EML APD LC 0-70℃
SFP-10G-BX80-L49 10Gb/s BiDi SFP+ 80km Tx1490/Rx1570nm EML APD LC 0-70℃
SFP-10G-BX80-L57 10Gb/s BiDi SFP+ 80km Tx1570/Rx1490nm EML APD LC 0-70℃
SFP-10G-BX100-L49 10Gb/s BiDi SFP+ 100km Tx1490/Rx1550nm EML APD LC 0-70℃
SFP-10G-BX100-L55 10Gb/s BiDi SFP+ 100km Tx1550/Rx1490nm EML APD LC 0-70℃
SFP+10G-CW10-xx 10Gb/s CWDM SFP+ 10km 1270~1610nm DFB PIN LC 0-70℃
SFP+10G-CW20-xx 10Gb/s CWDM SFP+ 20km 1270~1370nm DFB PIN LC 0-70℃
SFP+10G-CW20-xx 10Gb/s CWDM SFP+ 20km 1470~1570nm DFB PIN LC 0-70℃
SFP+10G-CW20-xx 10Gb/s CWDM SFP+ 20km 1570~1610nm DFB PIN LC 0-70℃
SFP+10G-CW40-xx 10Gb/s CWDM SFP+ 40km 1270~1610nm DFB PIN LC 0-70℃
SFP+10G-CW40-xx 10Gb/s CWDM SFP+ 40km 1470~1610nm EML PIN LC 0-70℃
SFP+10G-CW80-xx 10Gb/s CWDM SFP+ 80km 1470~1610nm EML APD LC 0-70℃
SFP+10G-CW100-xx 10Gb/s CWDM SFP+ 100km 1470~1550nm EML APD LC 0-70℃
SFP+10G-DW40-CHxx 10Gb/s DWDM SFP+ 40km 1528.77~1563.86nm EML PIN LC 0-70℃
SFP+10G-DW80-CHxx 10Gb/s DWDM SFP+ 80km 1528.77~1563.86nm EML APD LC 0-70℃
SFP+10G-DW100-CHxx 10Gb/s DWDM SFP+ 100km 1528.77~1563.86nm EML APD LC 0-70℃
