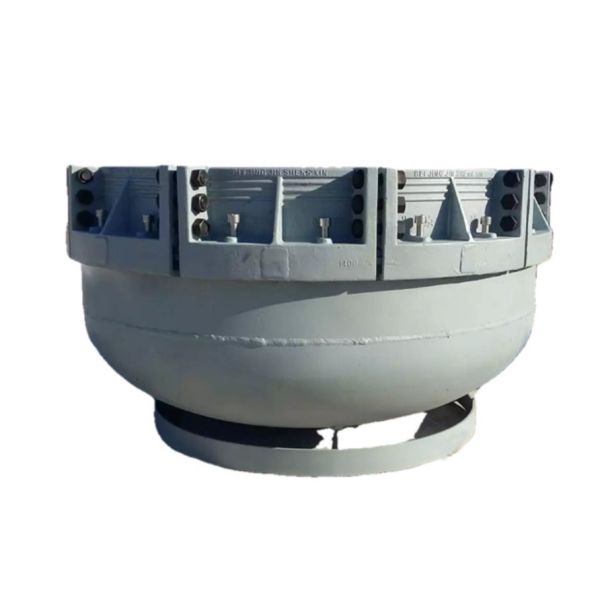

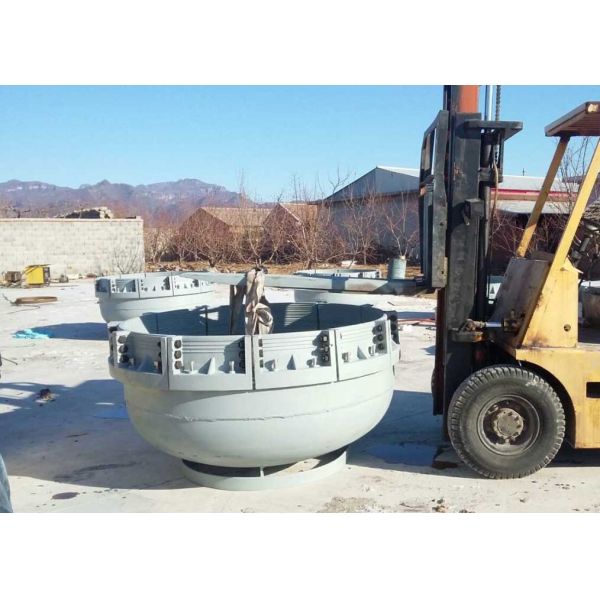

End Closure For Plastic Pipes featuring base clamp sealing pressure plate and fastening screws for internal pressure resistance
End Closure For Plastic Pipes featuring base clamp sealing pressure plate and fastening screws for internal pressure resistance
End Closure For Plastic Pipes featuring base clamp sealing pressure plate and fastening screws for internal pressure resistance
End Closure For Plastic Pipes featuring base clamp sealing pressure plate and fastening screws for internal pressure resistance
Specifications
Brand Name :
TH
Model Number :
DN 1600mm
Certification :
ISO9001
Place of Origin :
BEIJING, CHINA
MOQ :
1 set
Payment Terms :
T/T,L/C,Western Union,MoneyGram,D/A,D/P
Supply Ability :
20 sets per month
Delivery Time :
15 work days
Packaging Details :
Standard export wooden cases
Product Name :
End Closure For Plastic Pipes featuring base clamp sealing pressure plate and fastening screws for internal pressure resistance
Place of origin :
Beijing, China
Model :
DN 1600mm
Max. pressure :
1.2MPA
Material :
304# Stainless Steel /Carbon Steel
Temp. range :
15-95 ℃
Weight :
650KG(single)
Techniques :
Casting
Description

End Closure For Plastic Pipes featuring base clamp sealing pressure plate and fastening screws for internal pressure resistance



Use:

Designed to deliver reliable sealing for plastic piping specimens during hydrostatic pressure and burst testing, in full accordance with ISO 1167, ASTM D1598 and ASTM D1599 standards.


Constrction:

The end cap assembly consists of a support base, silicone sealing ring, connecting bolts, sealing platen and fastening jig.

Fastening screws are configured for the sealing platen. A medium overload protection structure is reserved in the mounting hole of the clamp base, and the inner side of the clamping jaw is precision-machined for the fastening jig.


Technical Specification:

Specification DN1600
Structure Pan structure
Sealing ring O-ring
Conversion connector PT1/4, internal thread, stainless steel material
End closures connector 1/4", M12*1.25, M16*1.5, Can be customized
Material Stainless steel or Carbon steel
Max. pressure 1.2MPA
Temp. range 15-95 ℃
Outline dimension Φ1900*600mm(single)
Weight 650KG(single)


Product size:

We boast an annual output of tens of thousands of end closure units.
These end closures are fabricated from 45# carbon steel or 304# stainless steel.
We provide a diverse range of structural configurations, covering end seal, external seal and double seal designs, compatible with pipes of assorted outer diameters.
We additionally offer customized end closure solutions in line with your specific testing specifications.
Applicable pipe dimensions are listed below:
Metric series:
φ10, φ16, φ20, φ25, φ32, φ40, φ50, φ63, φ75, φ90, φ110, φ125, φ140, φ160, φ180, φ200, φ225, φ250, φ280, φ315, φ355, φ400, φ450, φ500, φ560, φ630, φ710, φ800, φ900, φ1000, φ1100, φ1200, φ1500, φ2000 mm;
Imperial series:
1/2", 3/4", 1", 1‑1/4", 1‑1/2", 2", 2‑1/2", 3", 4", 6", 8", 10", 12", 14", 16", 18", 20", 22", 24" and other standard specifications.


Q&A:

Q: What plastic pipe materials can this hydrostatic fixture be applied to?
A: It is suitable for PVC‑U, HDPE, PPR, ABS and other common thermoplastic pipe materials.

Q: How many test cycles can the sealing parts of this fixture withstand?
A: The sealing components can withstand more than 5,000 test cycles with stable performance.

Q: What is the nominal working pressure of this hydrostatic fixture?
A: Its nominal working pressure can reach up to 10 MPa for long‑term testing.

Q: What is the matching accuracy between the fixture and the pipe end?
A: The matching accuracy between the fixture and pipe end is controlled within ±0.03 mm.

Q: What thread specifications are adopted for the fixture’s connecting ports?
A: The connecting ports adopt standard international threads including G1/2, G3/4 and G1.

Q: What is the fatigue test life of this fixture under repeated pressure?
A: It can pass more than 10,000 times of pressure cycle fatigue tests without failure.

.
