Product Name :
Hydrostatic Pressure Testing Machine Designed for Constant Temperature Pressure Testing of Plastic Pipes Fittings and Valves
Place of origin :
Beijing, China
Model :
XGY-10C
Max. pressure :
10 MPA, 100BAR
Pressure resolution :
0.001MPA, 0.01BAR
Test stations :
3, 4, 5, 6, 10, 15, 20, 25, 30 or other
Temp. range :
10-95 ℃
Constant pressure accuracy :
-1%~+2%
Material of water tank :
304# stainless steel
End caps :
from Φ16 to 1600mm
Power :
AC380V ±10% ,50/60Hz
Certificate :
ISO, CE
Description

Hydrostatic Pressure Testing Machine Designed for Constant Temperature Pressure Testing of Plastic Pipes Fittings and Valves



​Application:

The Hydrostatic Pressure Testing Equipment is engineered for determining the internal pressure resistance of plastic pipes, pipe fittings and valves, which are subjected to identical or variable pressure under constant temperature conditions.

It acts as an indispensable testing device for manufacturers, scientific research institutions and quality control authorities to conduct performance inspection and measurement on test specimens.

Feature:

This equipment is composed of precision pressure control components, automatic pressure charging and discharging modules, with the precision pressure control section utilizing MCU microcomputer-based regulation. It is fitted with a high-resolution, high-speed ∑-delta 16-bit ADC chip that enables real-time data communication with the host computer, and it can implement adaptive automatic pressure charging and relief in accordance with real-time pressure conditions.

Pressure Station:

Its core function is to supply stable pressure to the main testing unit, with the minimum pressure threshold of the pressure station required to be higher than the pressure demand of all tested specimens. The plunger pump of the pressure station is imported from the United States, featuring large flow rate, low noise, high pressure resistance and maintenance-free operation.

Water Tank:

The water tank is constructed with electric opening mechanisms, self-circulation modules, heating units, automatic water replenishment systems and thermal insulation components, integrating all functional sections for liquid circulation and temperature preservation.

Temperature Control System:

This system precisely regulates the water temperature inside the tank, with independent functional modules for real-time temperature display and separate temperature setpoint adjustment. It can stably maintain the tank’s liquid level at an optimal operating position while ensuring the consistency of the test temperature throughout the entire testing process.

Software System:

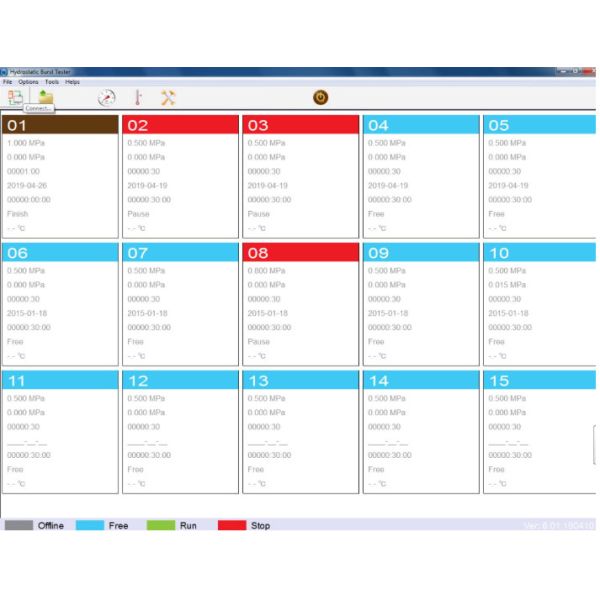

Connected to the main pressure testing unit via an RS232 serial interface, the software system supports a comprehensive range of operational functions including test parameter configuration, equipment calibration, pressure relief, zero calibration, amplitude adjustment, real-time test curve plotting, full-process test data logging and standardized test report printing.


Standards:

GB/T18742.1, GB/T18742.2, GB/T18742.3, GB/T13663, GB/T15558.1, GB/T15558.2, GB/T18992.1, GB/T18992.2,

GB/T10002.1, GB/T10002.2, GB/T18993.1, GB/T18993.2, GB/T18997.1, GB/T18997.2, ISO 1167


Technical data:
Pipe diameter range Φ16~Φ1600mm
Working position 3, 5, 6 positions (1~50 positions can be customized)
Operation mode Operation panel/PC control
Pressure range 0.2~10MPa (or customized)
Pressure resolution 0.001MPa
Pressure control accuracy -1%~+2%
Measuring range 5%~100% F.S.
Timing range 1s~9999H 99M 99S
Timing accuracy ±0.1%
Display resolution 1s
Min. Time setting unit min
Temperature control system

15~95℃ with refrigerating system
Temperature control accuracy ±0.5℃
Main body material of water tank 304# stainless steel

Power supply

 Pressure control meter AC220V, 50Hz
Pressure workstation 3phase, AC380V, 50Hz
Constant temperature tank 3phase, AC380V, 50Hz


Standard accessory:

1. Pressure host;

2. Ppressure station

3. Water tank with temperature control system;

4. End caps;

5. Refrigeration system.


Q&A:

Q1: What range of constant test temperature can the pipe hydrostatic testing machine realize, and what types of plastic pipes is this temperature control performance applicable to?

A1: This equipment can achieve a constant test temperature range from room temperature up to 95℃ with precise thermal insulation, and this performance is perfectly applicable to thermal plastic pipe materials including PE, PPR, PVC and ABS pipes, which is tailored for the constant temperature hydrostatic pressure detection requirements of different plastic pipes in industrial production.

Q2: What is the pressure regulation precision of the pipe hydrostatic testing machine, and what core pressure performance tests can it finish relying on this high precision?

A2: The machine features a pressure regulation precision of 0.001MPa with stable pressure output, and it can complete three core hydrostatic tests for pipes: static pressure burst test, long-term pressure resistance test and creep damage test, fully meeting the essential pressure performance detection standards of pipe products.

Q3: What is the applicable pipe diameter interval of the automatic pipe hydrostatic testing machine, and which key industrial pipe application scenarios is it adapted to?

A3: It supports a wide applicable pipe diameter interval from DN20 to DN1800mm for various pipe types, and is specially adapted to the production and quality inspection scenarios of municipal water supply and drainage pipes, building heating pipes and gas transmission pipes, covering the mainstream industrial pipe application fields.
