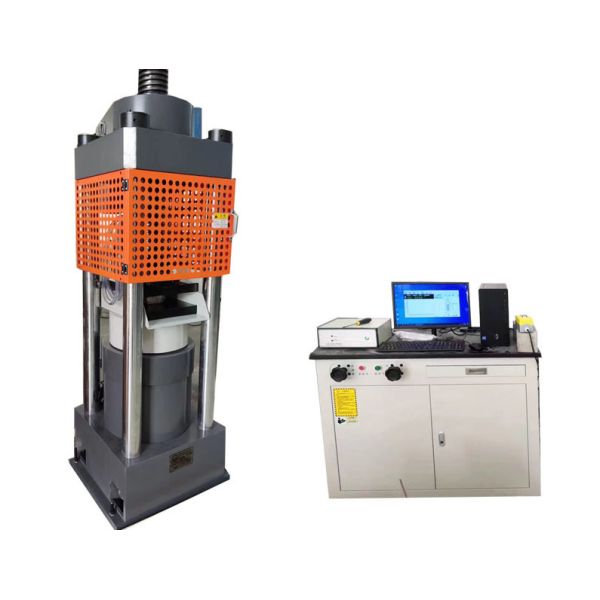

Hydraulic Universal Testing Machine integrating hydraulic power source and precise measurement system for material compression testing
Hydraulic Universal Testing Machine integrating hydraulic power source and precise measurement system for material compression testing
Hydraulic Universal Testing Machine integrating hydraulic power source and precise measurement system for material compression testing
Hydraulic Universal Testing Machine integrating hydraulic power source and precise measurement system for material compression testing
Specifications
Brand Name :
TH
Model Number :
WAW-Y2000DX
Certification :
ISO9001 , CE
Place of Origin :
BEIJING, CHINA
MOQ :
1 set
Payment Terms :
T/T,L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability :
20 sets per month
Delivery Time :
7~15 work days
Packaging Details :
Standard export wooden cases
Product name :
Hydraulic Universal Testing Machine integrating hydraulic power source and precise measurement system for material compression testing
Model :
WAW-Y2000DX
Max.load :
2000KN
Test machine level :
0.5
Effective force measurement range :
2%～100%
Error of the test force indication value :
±1%
Maximum distance between upper and lower plates :
0-320mm
Size of upper and lower pressing plate :
300*260mm
Description
Hydraulic Universal Testing Machine
Product Overview

The WAW-Y2000DX microcomputer-controlled electro-hydraulic servo pressure testing machine is a high-precision material compression testing instrument designed for applications in metallurgy, building materials, aviation, aerospace, higher education institutions, and scientific research organizations. This electromechanical-hydraulic integrated testing equipment comprises four key components: test mainframe, oil supply unit (hydraulic power source), measurement and control system, and testing instruments.

Competitive Advantages

Through continuous independent R&D investment and establishment of our own processing center, we manufacture core components in-house. This approach effectively reduces intermediate costs while maintaining consistent product quality. Our high-quality products deliver superior long-term value compared to low-cost alternatives, significantly lowering machine failure rates, reducing maintenance costs, and enhancing operational efficiency.

Compliance Standards

The equipment conforms to the following authoritative national test standards:

  • GB/T 3722-1992 Hydraulic Pressure Testing Machine
  • GB/T 50081-2002 Method of Test for Compressive Strength of Ordinary Concrete
  • GB/T 17671-1999 Test Method for Cement
  • GB/T 2542-2003 Test Method for Wall Bricks
  • GB 13544-2000 Test Method for Sintered Perforated Bricks
  • GB/T 5101-2003 Strength Test Requirements for Sintered Common Bricks
Technical Specifications
Parameter Specification
Maximum test force 2000kN
Test machine level 0.5
Effective force measurement range 2%～100%
Error of the test force indication value ±1%
Maximum distance between upper and lower plates 0-320mm
Size of upper and lower pressing plate 300×260mm
Column left and right span Not less than 300mm
Maximum travel trip of the work piston Not less than 100mm
Piston speed 50mm/min
Oil pump rated flow 5L/min
Overall dimension of the hydraulic source 1100×700×1100(mm)
Main size 680×680×1800(mm)
Total power 3kW (380V)
Power source Three-phase five-line system
Weight 1600kg
Packaging & Shipping
Hydraulic Universal Testing Machine integrating hydraulic power source and precise measurement system for material compression testing Hydraulic Universal Testing Machine integrating hydraulic power source and precise measurement system for material compression testing
Frequently Asked Questions
Q1. Is your company a trading company or a manufacturing factory?
We are a factory-integrated trading enterprise with 18 years of focused experience in the testing instrument field and 14 years of export practice.
Q2. How can I select the most suitable product for my needs?
Our professional technical team will provide appropriate recommendations based on your specific test type and required specifications.
Q3. What are your delivery terms?
We typically maintain factory stock. For custom orders, normal delivery time is 15-20 working days after receiving advance payment. Special arrangements can be made for urgent requirements.
Q4. Do you provide customization services?
Yes, we provide both standard machine models and custom solutions tailored to your specific requirements.
Q5. How is the machine packaged, and is it well-protected during transportation?
All machines are packed in standard export wooden crates that effectively ensure protection during transportation. We have extensive experience delivering testing machines overseas via sea or air transport, with all shipments arriving intact.
