Hydraulic Universal Testing Machine offering tension compression bending and shear testing with easy operation and maintenance
Hydraulic Universal Testing Machine offering tension compression bending and shear testing with easy operation and maintenance
Hydraulic Universal Testing Machine offering tension compression bending and shear testing with easy operation and maintenance
Hydraulic Universal Testing Machine offering tension compression bending and shear testing with easy operation and maintenance
Specifications
Brand Name :
TH
Model Number :
WEW-600B
Certification :
ISO9001, CE
Place of Origin :
BEIJING, CHINA
MOQ :
1 set
Payment Terms :
T/T,L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability :
30 sets per month
Delivery Time :
20~30 work days
Packaging Details :
Standard export wooden cases
Product name :
Hydraulic Universal Testing Machine offering tension compression bending and shear testing with easy operation and maintenance
Model :
WEW-600B
Structure :
4 columns
Control way :
manual
Max.load :
600KN
Max. tension test space :
700mm (can customize)
Max.Compression Test Space :
600mm (can customize)
Round specimen clamping range :
φ13-26mm, φ26-40mm
Description
Hydraulic Universal Testing Machine
Professional testing equipment offering tension, compression, bending, and shear testing capabilities with easy operation and maintenance.
Applications & Features
  • Capable of performing tension, compression, bending, and shear mechanical tests
  • Suitable for testing materials including rebar, steel bar, steel plate, carbon fiber steel bar, bolts, nuts, and wire ropes
  • Customizable modifications available to meet client requirements and designated testing standards
Compliance Standards
ISO6892, BS4449, ASTM C39, ISO75001, ASTM A370, ASTM E4, ASTM E8, and BSEN standards
Host Machine Features
  • Bottom-mounted oil tank with tensile testing space on upper side and compression/bending/shearing zones in lower section
  • Sturdy four-column double-screw structure for excellent stability
  • Integral forming design for superior rigidity and prevention of deformation under load
  • Adjustable clearance screw nut structure on middle beam to eliminate assembly gaps
  • Clearance sealing structure in oil tank for enhanced testing accuracy and extended service life
Safety & Protection Systems
  • Overload protection activates when test force exceeds 2-5% of maximum rated test force
  • Automatic pump motor shutdown when piston reaches upper limit position
Technical Specifications
Model WEW-600B
Structure 4 column
Control Method Manual
Maximum Load 600kN
Load Accuracy ≤±1% / ≤±0.5%
Load Range 2%-100%FS / 0.5%-100%FS
Load Resolution 1/300000
Deformation Measurement Range 2%～100%FS
Deformation Accuracy ≤±1%/±0.5%
Displacement Resolution 0.01mm
Displacement Error ≤±0.5%
Maximum Piston Stroke 250mm
Maximum Piston Speed 0-50mm/min stepless speed adjusting
Crosshead Lifting Speed 120mm/min
Maximum Tension Test Space 700mm (customizable)
Maximum Compression Test Space 600mm (customizable)
Effective Width 440mm

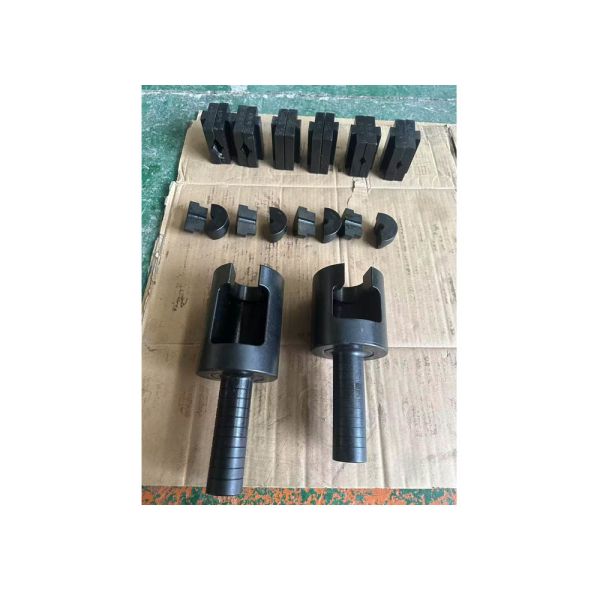

Clamping Method Hydraulic Automatic Clamp Fixture
Round Specimen Clamping Range φ13-26mm, φ26-40mm
Flat Specimen Clamping Range 0-15mm
Compression Plate Size φ120mm
Power Supply 3-phase, AC380V, 50Hz (customizable)
Testing Machine Series Comparison
WAW Series: Computer-controlled servo hydraulic universal testing machine with precise software regulation, real-time data transmission, and advanced servo hydraulic control technology for high-precision performance.
WEW Series: Computer-display manual-control hydraulic testing machine with manual space adjustment and force loading, plus software data analysis capabilities for balanced operability and analysis.
WE Series: Pendulum dynamometer-display manual-control universal testing machine with manual operations and direct result display via pendulum dynamometer for basic testing scenarios.
