Drop Hammer Impact Testing Machine Equipped with Automatic Drop Hammer Mechanism for Streamlined Impact Testing Processes
Drop Hammer Impact Testing Machine Equipped with Automatic Drop Hammer Mechanism for Streamlined Impact Testing Processes
Drop Hammer Impact Testing Machine Equipped with Automatic Drop Hammer Mechanism for Streamlined Impact Testing Processes
Drop Hammer Impact Testing Machine Equipped with Automatic Drop Hammer Mechanism for Streamlined Impact Testing Processes
Specifications
Brand Name :
TH
Model Number :
XJL-300B
Certification :
ISO9001 , CE
Place of Origin :
BEIJING, CHINA
MOQ :
1 set
Payment Terms :
T/T,L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability :
20 sets per month
Delivery Time :
10~15 work days
Packaging Details :
Standard export wooden cases
Product name :
Drop Hammer Impact Testing Machine Equipped with Automatic Drop Hammer Mechanism for Streamlined Impact Testing Processes
Travel of Working Table :
0-630mm
Specimen Diameter :
φ10~630mm
Hammer Diameter :
D25, D90, R5, R10, R30, R50 can optional
Hammer Weight :
0.250~16.000kg 0.125kg/ increment
Max. Impact Height :
2000mm
Description
Drop Hammer Impact Testing Machine with Automatic Drop Hammer Mechanism
This advanced testing machine features an automatic drop hammer mechanism designed to streamline impact testing processes for enhanced efficiency and accuracy.
Equipment Overview
The Drop Hammer Impact Testing Machine incorporates a dual-tube structural design, consisting primarily of a worktable, anti-secondary impact mechanism, hammer assembly, lifting mechanism, automatic hammer release mechanism, motor, reducer, electric control cabinet, and main frame.
It is extensively employed to determine the impact resistance of various plastic pipes, and is also applicable for impact performance testing of plastic sheets and profiles.
This series of testing instruments is widely adopted by scientific research institutions, universities, quality inspection authorities, and manufacturing enterprises to carry out drop hammer impact tests.
Key Features
  • Equipped with dual operational modes (manual and automatic) for effortless and intuitive operation

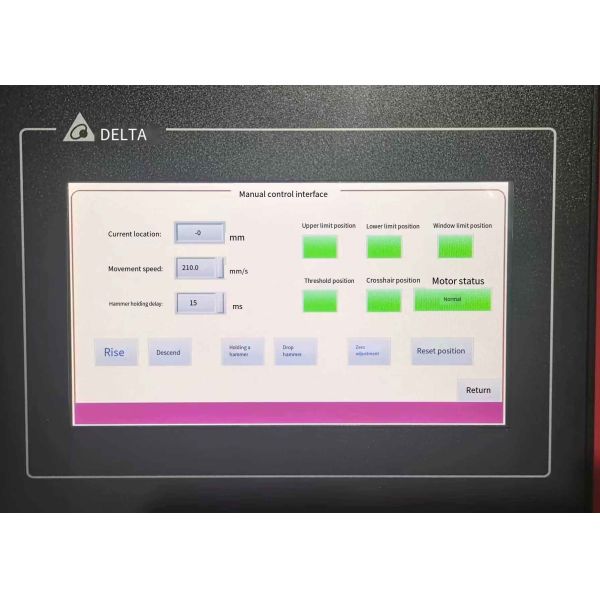

  • Controlled by a dedicated microcontroller with automatic hammer gripping, lifting, height calibration and real-time height display
  • Integrated with automatic zero-line adjustment functionality for test specimens
  • Fitted with an anti-secondary impact device to enhance accuracy and credibility of test results
  • Automatic protection and prompt functions for maximum safety and reliability
  • Electric adjustment of lower working space improves specimen positioning precision and reduces operator fatigue
Structure and Working Principle
This testing machine is mainly composed of workbench, anti-secondary impact mechanism, support tube, guide tube, hammer body, V-shaped anvil, automatic hammer release mechanism, reducer, electric control cabinet and main frame.
Working principle: The machine is equipped with a hammer clamp inside the guide tube. Driven by the motor and reducer, the clamp lifts the hammer body to the preset height automatically, then triggers the hammer release switch, allowing the hammer to fall freely along the guide tube and strike the specimen to complete the test. The impact energy can be calculated based on the mass of the hammer and the impact height.
If the hammer rebounds after the specimen is broken, the photoelectric signal will control the anti-secondary impact mechanism to quickly clamp the rebounding hammer, preventing secondary impact.
A V-shaped anvil assembly is installed under the workbench, with lead screws arranged on both sides. The lifting of the V-shaped anvil is driven by rotating the handwheel.
Drop Hammer Impact Testing Machine Equipped with Automatic Drop Hammer Mechanism for Streamlined Impact Testing Processes Drop Hammer Impact Testing Machine Equipped with Automatic Drop Hammer Mechanism for Streamlined Impact Testing Processes Drop Hammer Impact Testing Machine Equipped with Automatic Drop Hammer Mechanism for Streamlined Impact Testing Processes
Compliance Standards
Conforms to ISO3127, BS EN1411, BS EN744, ZB N72 026, GB/T14152, 14153, 100021, 13664, 58361, 18847, 16800, 8814 and GB/T 6112, ABN72026, ISO 4422, ASTM D2444.
Technical Parameters
Parameter Specification
Model XJL-300B
Max. Impact Energy 300J
Max. Height 2000mm
Drop Weight 0.25-16kg
Impact Center and Fixture Center Error 2mm
Hammer Head R5mm, R10mm, R30mm (can be customized)
Selected to Fit Customer Requirements d25, d90
Table Travel 0mm-630mm
Specimen Diameter 10mm~630mm
Pallet Type 120° V-type with or without support, clamp flat pallet
Power AC220V 50Hz
Standard Configuration
No. Name Unit Quantity Remarks
1 Host set 1
2 Electric Cabinet set 1
3 Weight piece 10 0.1kg (1), 0.125kg (2), 0.2kg (1), 0.25kg (1), 0.5kg (1), 1.0kg (2), 2kg (1), 3kg (1), 6kg (1)
4 Impact Hammer set 2 0.5kg (1), 1.0kg (1) - Includes upper and lower tray, hammer tail, joint
5 Hammer Head set 2 D25 (1), D90 (1)
6 Double Sides V Iron set 1
7 One Sided V Iron set 1 Installed on the main machine
8 Documentation 3 Operating instruction (1), Packing list (1), Certificate of approval (1)
Drop Hammer Impact Testing Machine Equipped with Automatic Drop Hammer Mechanism for Streamlined Impact Testing Processes Drop Hammer Impact Testing Machine Equipped with Automatic Drop Hammer Mechanism for Streamlined Impact Testing Processes Drop Hammer Impact Testing Machine Equipped with Automatic Drop Hammer Mechanism for Streamlined Impact Testing Processes
