Hydraulic Universal Testing Machine Designed for Accurate Tensile Testing with Electro Hydraulic Servo and Computer Control System
Hydraulic Universal Testing Machine Designed for Accurate Tensile Testing with Electro Hydraulic Servo and Computer Control System
Hydraulic Universal Testing Machine Designed for Accurate Tensile Testing with Electro Hydraulic Servo and Computer Control System
Hydraulic Universal Testing Machine Designed for Accurate Tensile Testing with Electro Hydraulic Servo and Computer Control System
Specifications
Delivery Time :
20~30 work days
Round specimen clamping range :
Φ6-13；Φ13-26mm
Model Number :
WAW-300D
Model :
WAW-300D
MOQ :
1 set
Packaging Details :
Standard export wooden cases
Max.load :
300KN
Supply Ability :
20 sets per month
Max.Compression Test Space :
530mm (can customize)
Payment Terms :
T/T,L/C,D/A,D/P,Western Union
Max. tension test space :
600mm (can customize)
Certification :
ISO9001, CE
Structure :
4 columns
Brand Name :
TH
Product name :
Hydraulic Universal Testing Machine Designed for Accurate Tensile Testing with Electro Hydraulic Servo and Computer Control System
Place of Origin :
BEIJING, CHINA
Control way :
Dual control mode of manual and electro-hydraulic servo
Description

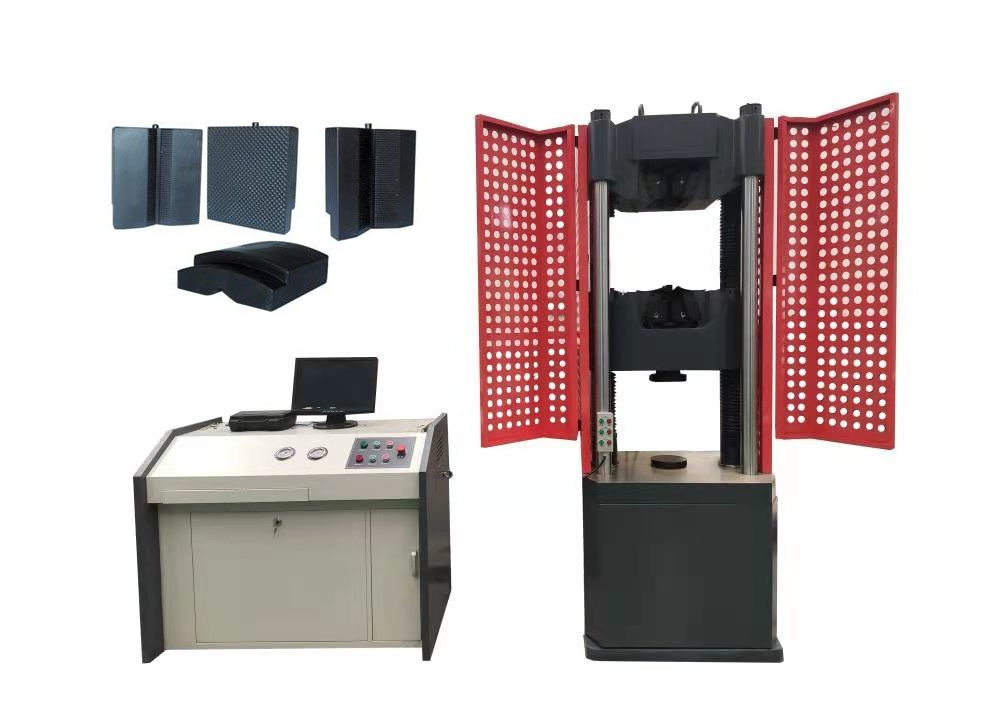

WAW-300D Hydraulic Universal Testing Machine
Advanced electro-hydraulic servo universal testing machine with computer control system designed for precise tensile, compression, bending, and shear testing applications.
Applications
This hydraulic universal testing machine performs mechanical property tests on metallic materials, non-metallic materials, product components, structural parts, and standard specimens. Widely used in steel, metallurgy, construction materials, quality inspection centers, hydropower, bridge engineering, research institutes, and university laboratories.
Quality & Cost Advantages
  • In-house R&D and manufacturing of all core components reduces intermediate costs
  • Premium-grade equipment delivers superior long-term cost benefits
  • Reduced maintenance frequency enhances operational efficiency
  • Competitive pricing combined with exceptional quality
Compliance Standards
ISO6892, BS4449, ASTM C39, ISO75001, ASTM A370, ASTM E4, ASTM E8, BSEN standards
Host Structure Features
  • Optimized layout with tank below main host and testing zones strategically positioned
  • Robust four-column, two-lead screw structure for exceptional stability
  • Integrated one-piece design provides ultra-high structural stiffness
  • Adjustable clearance lead screw-nut mechanism eliminates transmission backlash
  • Precision gap sealing technology enhances accuracy and extends hydraulic system life
Measurement & Control System
  • Full-digital control system with closed-loop control over test force, deformation, and displacement
  • Multiple control functions: constant stress, constant strain, constant-speed test force, constant displacement
  • Real-time display of peak test force, specimen deformation, piston displacement, and test curves
  • Mouse-operated interface with intelligent expert system control mode
Safety & Protection Systems
  • Overload protection activates when test force exceeds 2-5% of maximum range
  • Travel limit protection automatically shuts down pump motor at preset upper position
Technical Specifications
Parameter Specification
Model WAW-300D
Structure 4 column
Control Method Dual control mode (manual & electro-hydraulic servo)
Maximum Load 300kN
Load Accuracy ≤±1% / ≤±0.5%
Load Range 2%-100%FS / 0.5%-100%FS
Load Resolution 1/300,000
Deformation Measurement Range 2%～100%FS
Deformation Accuracy ≤±1% / ±0.5%
Displacement Resolution 0.01mm
Displacement Error ≤±0.5%
Maximum Piston Stroke 250mm
Piston Speed Range 0-50mm/min (stepless adjustment)
Crosshead Lifting Speed 120mm/min
Maximum Tension Space 600mm (customizable)
Maximum Compression Space 530mm (customizable)
Clamping Method Hydraulic Automatic Clamp Fixture
Round Specimen Range Φ6-13mm; Φ13-26mm
Flat Specimen Range 0-15mm
Compression Plate Size φ160mm
Power Supply 3-phase, AC380V, 50Hz (customizable)
Product Images
Hydraulic Universal Testing Machine Designed for Accurate Tensile Testing with Electro Hydraulic Servo and Computer Control System Hydraulic Universal Testing Machine Designed for Accurate Tensile Testing with Electro Hydraulic Servo and Computer Control System Hydraulic Universal Testing Machine Designed for Accurate Tensile Testing with Electro Hydraulic Servo and Computer Control System Hydraulic Universal Testing Machine Designed for Accurate Tensile Testing with Electro Hydraulic Servo and Computer Control System Hydraulic Universal Testing Machine Designed for Accurate Tensile Testing with Electro Hydraulic Servo and Computer Control System
