Specifications
Model Number :
WEW-300D
Round specimen clamping range :
φ6-13mm, φ13-26mm,
Brand Name :
TH
MOQ :
1 set
Packaging Details :
Standard export wooden cases
Max.Compression Test Space :
600mm (can customize)
Supply Ability :
30 sets per month
Structure :
4 columns
Max. tension test space :
800mm (can customize)
Delivery Time :
20~30 work days
Model :
WEW-300D
Payment Terms :
T/T,L/C,D/A,D/P,Western Union,MoneyGram
Control way :
manual
Certification :
ISO9001, CE
Place of Origin :
BEIJING, CHINA
Product name :
Hydraulic Universal Testing Machine designed to meet ISO ASTM and BSEN standards for comprehensive mechanical property evaluation
Max.load :
300KN
Description
Hydraulic Universal Testing Machine
Designed to meet ISO, ASTM, and BSEN standards for comprehensive mechanical property evaluation of materials.
Applications
High-accuracy, multi-functional material inspection apparatus for evaluating mechanical properties of metallic materials, non-metallic materials, and composite materials under tensile, compressive, and flexural loading conditions.
Compliance Standards
All testing operations comply with ISO6892, BS4449, ASTM C39, ISO75001, ASTM A370, ASTM E4, ASTM E8, and BSEN specifications.
Host Features
  • Optimized Spatial Layout: Fuel tank installed beneath main host with tensile testing above and compression/bending/shearing testing below
  • Heavy-Duty Structural Framework: Rugged four-column, two-lead screw design for outstanding stability
  • Integrated Monolithic Construction: One-piece design for exceptional structural rigidity and prevention of micro-deformation
  • Clearance-Free Transmission: Adjustable clearance lead screw-nut mechanism eliminates transmission backlash
  • High-Performance Sealing: Precision gap sealing technology enhances accuracy and prolongs hydraulic system life
Safety Protection Systems
  • Overload Safety Interlock: Automatically activates when testing force exceeds 2-5% of maximum range
  • Travel Limit Safety Interlock: Triggers protection and shuts down pump motor at predefined upper limit
Technical Specifications
Model WEW-300D
Structure 4 column
Control Method Manual
Maximum Load 300kN
Load Accuracy ≤±1% / ≤±0.5%
Load Range 2%-100%FS / 0.5%-100%FS
Load Resolution 1/300000
Deformation Measurement Range 2%～100%FS
Deformation Accuracy ≤±1%/±0.5%
Displacement Resolution 0.01mm
Displacement Error ≤±0.5%
Maximum Piston Stroke 250mm
Maximum Piston Speed 0-50mm/min stepless speed adjusting
Crosshead Lifting Speed 120mm/min
Maximum Tension Test Space 600mm (customizable)
Maximum Compression Test Space 550mm (customizable)
Effective Width 440mm
Clamping Method Hydraulic Automatic Clamp Fixture
Round Specimen Range φ6-13mm, φ13-26mm
Flat Specimen Range 0-15mm
Compression Plate Size φ120mm
Power Supply 3-phase, AC380V, 50Hz (customizable)
Product Series Overview
  • WAW Series: Computer-controlled servo hydraulic universal testing machine with full software control and automated data analysis
  • WEW Series: Computer-displayed manually controlled hydraulic testing machine (this model) with manual control and software data analysis
  • WE Series: Pendulum dynamometer displayed manually controlled universal testing machine with manual control and direct mechanical display

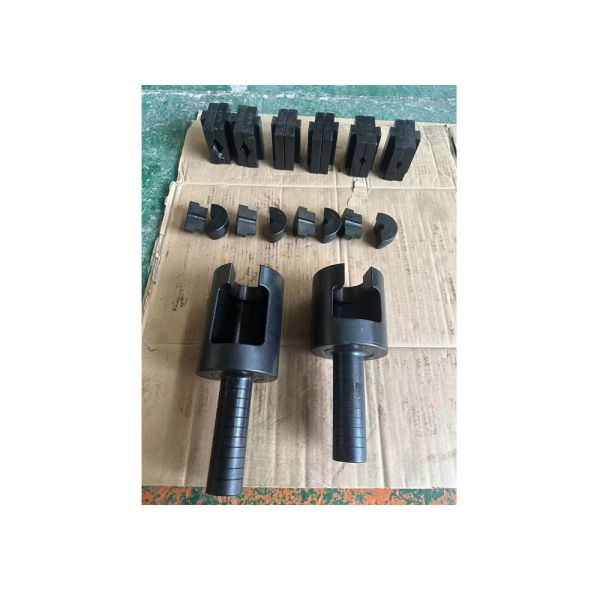

Product Images
