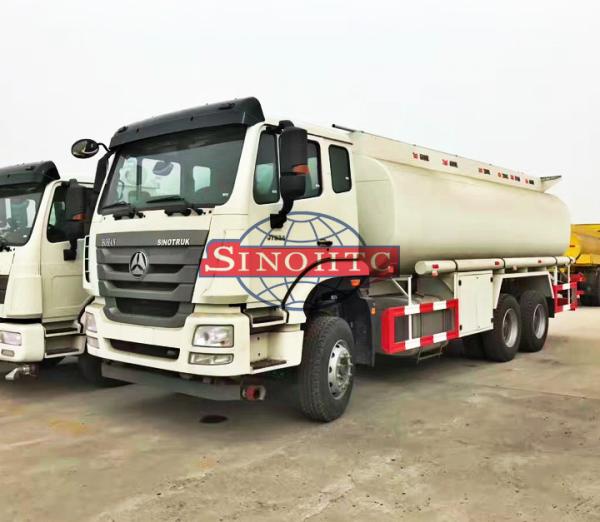

6X4 Stainless Steel Fuel Transport Trucks , 20000 - 25000 Liter Gasoline Tanker Truck
6X4 Stainless Steel Fuel Transport Trucks , 20000 - 25000 Liter Gasoline Tanker Truck
6X4 Stainless Steel Fuel Transport Trucks , 20000 - 25000 Liter Gasoline Tanker Truck
6X4 Stainless Steel Fuel Transport Trucks , 20000 - 25000 Liter Gasoline Tanker Truck
6X4 Stainless Steel Fuel Transport Trucks , 20000 - 25000 Liter Gasoline Tanker Truck
6X4 Stainless Steel Fuel Transport Trucks , 20000 - 25000 Liter Gasoline Tanker Truck
6X4 Stainless Steel Fuel Transport Trucks , 20000 - 25000 Liter Gasoline Tanker Truck
6X4 Stainless Steel Fuel Transport Trucks , 20000 - 25000 Liter Gasoline Tanker Truck
Specifications
Brand Name :
HOWO
Model Number :
ZZ5257GYYT
Certification :
ISO9001
Place of Origin :
Qingdao China
MOQ :
1 unit
Price :
Negotiation
Supply Ability :
30 UNITS PER MONTH
Delivery Time :
30 Working Days
Packaging Details :
Bulk cargo vessel, RO-RO vessel, 40/45 HQ container
Tank Volume :
20000- 25000 Liters
Driving type :
6x4,6x6
Engine power :
STEYR 290HP/ 336HP
Gearbox :
10F, 2R
Tank Material :
Stainless steel
Steering :
Power-assistant, LHD/ RHD
Description

20000-25000 Liters 6X4 LHD / RHD Sinotruk HOWO Fuel Tank Truck

Description:


Comfort: Sinotruk Howo brand cab, the design is more fashion and beautiful, make the driver more comfortable when driving.
Security: Imbedding in one time makes the main beam stronger. High strength makes it more safe and reliable.
Effective: Save more oil, attendance is high. And the mixing volume of tank is huge, with the huge horse power engine, can be adapted into all kinds of construction field.

Product Description

Truck Type 6*4 Oil Tank Truck
Truck Model ZZ1257M5247C
Truck Brand SINOTRUK—HOWO
Driving Type Left OR Right Hand Driving
Dimension(Lx W x H)(mm) 11184x2500x3050
Approaching angle/Departure angle(°) 16/10
Overhang(front/rear) (mm) 1500/3109
Tank capacity( m3 ) 20 m³
Gear oil pump Model 76YCB-40(F)
flux m3/h 40
In /out cabiber mm 76
RPM r/min 960
Remarks: oil pump model with F, represent relief valve, used for oil tanker truck with oil gun.
Wheel base (mm) 5225+1350
Max speed(km/h) 90
Curb weight(kg) 11670
Total weight(kg) 25000
Engine Model

WD615.87,water-cooled,four strokes,

6 cylinders in line with

water cooling,turbocharged and

inter-cooling, directly injection
Fuel type Diesel
Horse Power 336hp
Emission EURO II
Fuel tanker capacity(L) 380
Transmission Model

HW15710

10 forwards and 2 reverse
Brake system Service brake Dual circuit compressed air brake
Parking brake

spring energy, compressed air operating

on rear wheels
Auxiliary brake Engine exhaust brake
Steering system Model

ZF8118,hydraulic steering with power

Assistance Ratio:22.2-26.2
Front axle

HF7 disc brake, Steering with double T-cross section beam

Loading capacity: 7000kg
Rear axle

HW1279, Pressed axle housing, central double

reduction with differential locks between axles and wheels

Loading capacity: 12000kg
Color Optional
Chassis

Frame: U-profile parallel ladder frame with section of

300*80*8mm and reinforced sub frame all cold riveted

cross member Front suspension: semi-elliptic leaf springs,

hydraulic telescopic double-action shock absorbers and stabilizer

Rear suspension: semi –elliptic leaf spring and bogie springs
Tire 12.00-20, Bias tire
Tire quantity 10+1 spare
Electrical system Battery 2X12V/165Ah
Alternator 28V-1500kw
Starter 7.5Kw/24V
Cab

HW76 cab, with one sleeper and air-conditioner,

all-steel forward control,55ºhydraulically tiltable to the front,

2- arm windscreen wiper system with three speeds,

laminated windscreen with casted-in radio aerial,

hydraulically damped adjustable driver’s seat and

rigid adjustable co-driver’s seat, with heating and

ventilating system, outer sun visor, adjustable roof flap,

with stereo radio/cassette recorder, safety belts and

adjustable steering wheel, air horn, with 4-point

support fully floating suspension and shock absorbers
