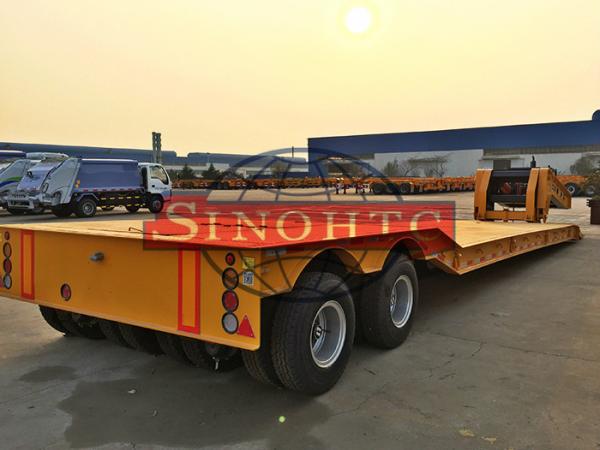

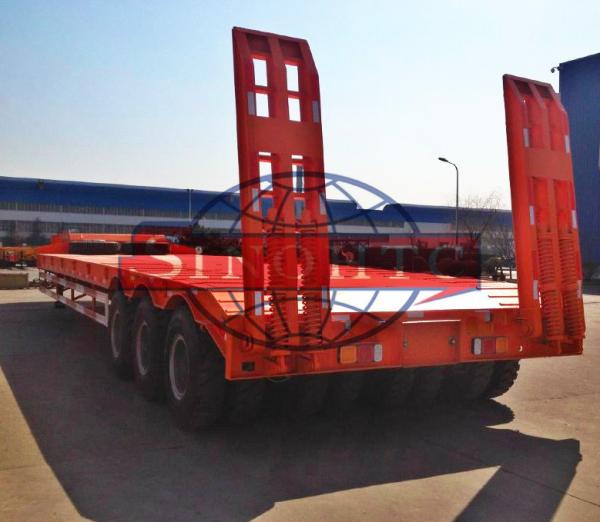

2x2 50 T Low Loader Semi Trailer , 2 Line Four Axle Heavy Duty Low Bed Trailers
2x2 50 T Low Loader Semi Trailer , 2 Line Four Axle Heavy Duty Low Bed Trailers
2x2 50 T Low Loader Semi Trailer , 2 Line Four Axle Heavy Duty Low Bed Trailers
2x2 50 T Low Loader Semi Trailer , 2 Line Four Axle Heavy Duty Low Bed Trailers
2x2 50 T Low Loader Semi Trailer , 2 Line Four Axle Heavy Duty Low Bed Trailers
2x2 50 T Low Loader Semi Trailer , 2 Line Four Axle Heavy Duty Low Bed Trailers
2x2 50 T Low Loader Semi Trailer , 2 Line Four Axle Heavy Duty Low Bed Trailers
2x2 50 T Low Loader Semi Trailer , 2 Line Four Axle Heavy Duty Low Bed Trailers
Specifications
Brand Name :
SINOHTC
Model Number :
HTC9404DPB
Certification :
ISO9001
Place of Origin :
Qingdao China
MOQ :
1 unit
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10 UNITS PER MONTH
Delivery Time :
30 DAYS
Packaging Details :
Bulk cargo vessel, RO-RO vessel, 40/45 HQ container
Trailer type :
Low bed semi trailer
Axle No. :
2x2
Capacity :
>50 tons
Material :
Steel, High-strength Steel
Tyre No. :
16 pcs
Tyre model :
8.25R20, 11R22.5
Description

40 tons 2 line 4 axle Low bed trailer, 2 axle line heavy duty lowbed semi trailer, heavy duty lowbed trailer

Specifications:

Trailer Model 2 line 4 axle Low bed trailer,
Function Tractor and excavator transportation

Overall Dimension

(L*W *H)(mm)

 12800*2500*1700
Tare Weight(KG) 7500
Loading Capacity(KG) 50 000
Axle Brand yuek 20T
Axle Number 2 x2
Suspension System Standard Mechanical suspension
Steel Spring rigid suspension
Main Beam

The height of the beam is 450 mm,the

thickness of upper plate is16mm,down plate

is 18mm,middle plate is 10mm.
Floor 4mm

Tire Type

and Quantity

 .8.25R17 8units
Traction Pin 50# or 90#, removeable
Spare Wheel Bracket 2 pieces
Tool Box 1 Standard
Landing Gear Standard 28Ton, external
BrakingSystem Dual Line braking system (none ABS)
Brake air chamber Six big double air chamber
Electrical System

1. Voltage: 24v

2. Receptacle: 7 ways (7 wire harness)
Tail lamp with turn signal, brake light & reflector, side lamp etc.
One set 6-core standard Cable.
Side Guard According to customer's requirement
Painting Optional(yellow,red,white,blue etc.)
Packing Polish with wax before shipping

our 2 line 4 axle axle Low bed trailer, can be used to carry all kinds of middle duty earth moving machineries,

2x2 50 T Low Loader Semi Trailer , 2 Line Four Axle Heavy Duty Low Bed Trailers
Our advantages
1 Near 10 years Wholesaler experience in truck and truck parts field
2 Specialization: Accurately meet your requirement, Experienced engineers serving for you
3 Good quality: Original products & OEM services, with many Certifications.
4 Great variety and wide range: your "One-shop purchasing service"
5 Four warehouses, More than 10000 square meters
6 Important partner with FAW,North Benz,Sinotruk,Shacman and familiar with the market very well
