2018 XCMG HOWO 58m Used Concrete Pump Truck HB58V Semi Dry Shotcrete
2018 XCMG HOWO 58m Used Concrete Pump Truck HB58V Semi Dry Shotcrete
2018 XCMG HOWO 58m Used Concrete Pump Truck HB58V Semi Dry Shotcrete
2018 XCMG HOWO 58m Used Concrete Pump Truck HB58V Semi Dry Shotcrete
2018 XCMG HOWO 58m Used Concrete Pump Truck HB58V Semi Dry Shotcrete
2018 XCMG HOWO 58m Used Concrete Pump Truck HB58V Semi Dry Shotcrete
2018 XCMG HOWO 58m Used Concrete Pump Truck HB58V Semi Dry Shotcrete
2018 XCMG HOWO 58m Used Concrete Pump Truck HB58V Semi Dry Shotcrete
2018 XCMG HOWO 58m Used Concrete Pump Truck HB58V Semi Dry Shotcrete
2018 XCMG HOWO 58m Used Concrete Pump Truck HB58V Semi Dry Shotcrete
Specifications
Brand Name :
XCMG
Model Number :
HB58V (HOWO)
Certification :
GS, RoHS, CE, ISO9001
Place of Origin :
China
MOQ :
1 unit
Price :
USD 120,000~150,000 per unit (FOB price)
Payment Terms :
L/C, T/T, D/P, D/A, Western Union
Supply Ability :
10 units per month
Delivery Time :
15 work days
Packaging Details :
Export standard
Condition :
Used
Year of Manufacture :
2018
Aftersales service :
available with technical and parts support
Warranty :
Provided
Shotcrete Type :
Semi-Dry
Machining Process: :
Hydraulic
Structure :
Cylinder Type
Dimension :
14545×2550×4000mm
Weight :
44700kg
Description

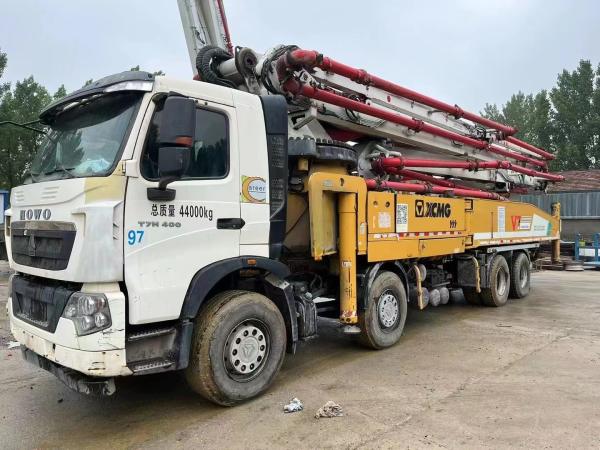

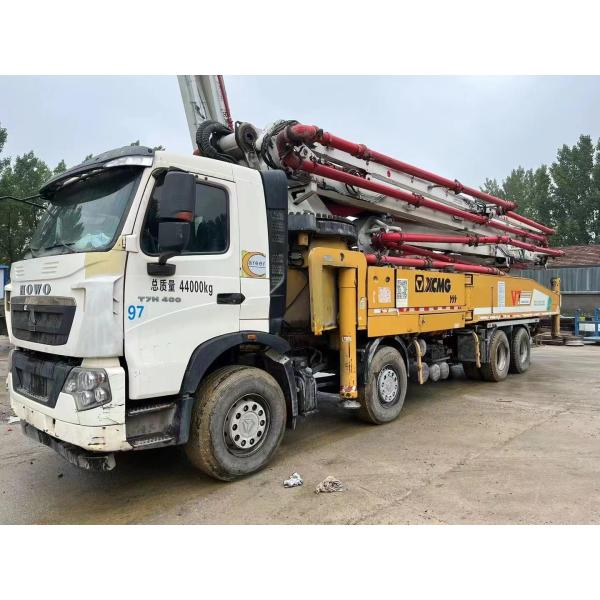

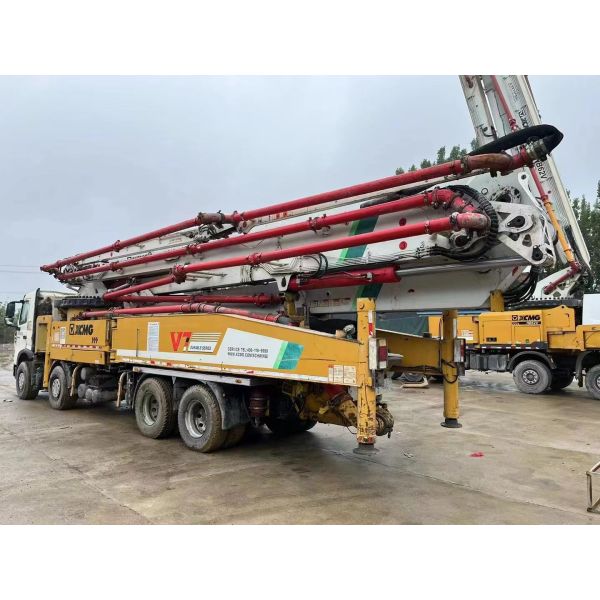

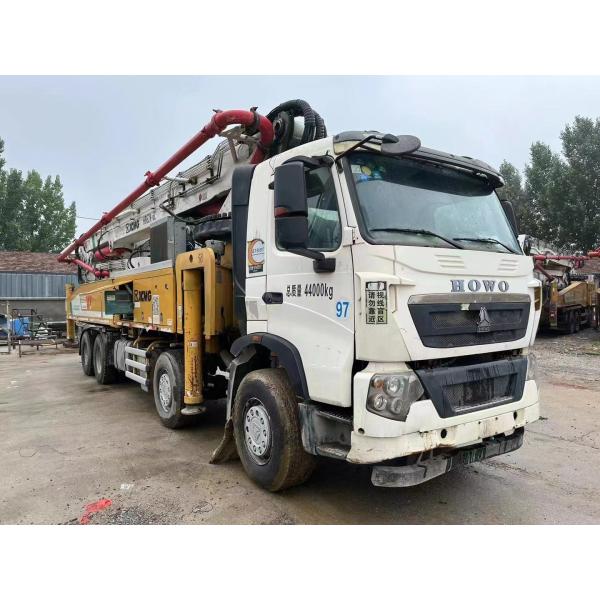

Second Hand Used 2018 XCMG HOWO 58m Truck Mounted Concrete Pump HB58V

The XCMG V7 pump truck (4-axle 58-meter) is a perfect presentation that integrates German Schweiling technology. It is the first arc-shaped leg long boom pump truck in the domestic industry, achieving a revolutionary breakthrough in leg layout. The first level of expansion can achieve a span of X legs with two levels of expansion. The expansion mechanism is simple and reliable, and the leg covers a smaller area. The front leg span is only 9.05 meters, which is equivalent to the 55 meter level product of other products in the industry, but has achieved a span of nearly 60 meters,.The cost-effectiveness of this product is extremely high, and it continues to trigger a buying frenzy. It is currently a popular product in the market. Curved support, with a 50% increase in rigidity and a smaller span, makes the operation range extends by 15%.

1. More efficient pumping


2. The system is more reliable


3. Stronger power


4. Adaptability improvement


5. More intelligent control


6. Smooth rotation


7. Swinging more forcefully


8. The whole machine is lighter


9. Safer driving


10. More diverse configurations


11. More user-friendly use


12. Easier maintenance

Product Decription:

Item Parameters
Model XCMG HB58V (HOWO)
Overall Machine
Dimension 14545*2550*4000mm
Weight 44700kg
Chassis
Brand HOWO
Model ZZ5467THBV466MF1
Wheelbase 2300+5150+1400mm
Engine
Engine model MC13.54-61
Max. Net power 397kw
Pumping system
Theoretical output 180m3/h
Concrete pumping pressure 10.2MPa
Theoretical pumping frequency 25~27 times/min
Delivery cylinder inner diameter * stroke Φ260*2000mm
Placing boom
Vertical reach 57.5m
Horizontal reach 52.5m
Rotating angle +/-360
Others
Supporting leg X leg

Product Show

2018 XCMG HOWO 58m Used Concrete Pump Truck HB58V Semi Dry Shotcrete2018 XCMG HOWO 58m Used Concrete Pump Truck HB58V Semi Dry Shotcrete2018 XCMG HOWO 58m Used Concrete Pump Truck HB58V Semi Dry Shotcrete
