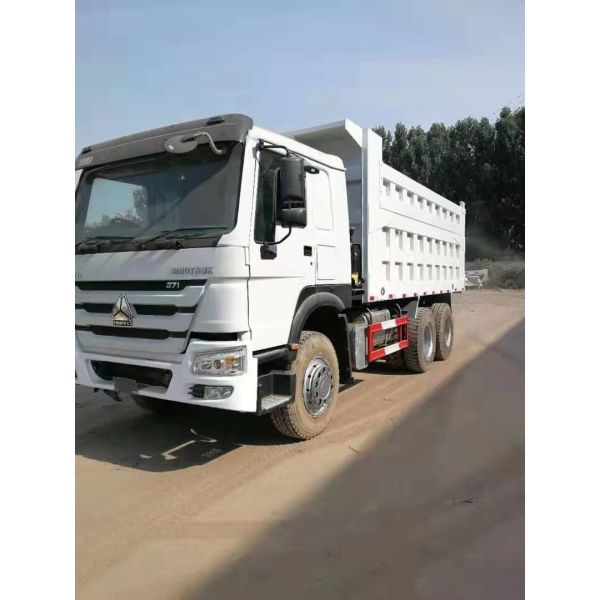

ZZ3317N3867 Used Dump Truck 8*4 12 Tyres Tipper Truck With Right Hand Drive
ZZ3317N3867 Used Dump Truck 8*4 12 Tyres Tipper Truck With Right Hand Drive
ZZ3317N3867 Used Dump Truck 8*4 12 Tyres Tipper Truck With Right Hand Drive
ZZ3317N3867 Used Dump Truck 8*4 12 Tyres Tipper Truck With Right Hand Drive
ZZ3317N3867 Used Dump Truck 8*4 12 Tyres Tipper Truck With Right Hand Drive
ZZ3317N3867 Used Dump Truck 8*4 12 Tyres Tipper Truck With Right Hand Drive
ZZ3317N3867 Used Dump Truck 8*4 12 Tyres Tipper Truck With Right Hand Drive
ZZ3317N3867 Used Dump Truck 8*4 12 Tyres Tipper Truck With Right Hand Drive
ZZ3317N3867 Used Dump Truck 8*4 12 Tyres Tipper Truck With Right Hand Drive
ZZ3317N3867 Used Dump Truck 8*4 12 Tyres Tipper Truck With Right Hand Drive
Specifications
Brand Name :
HOWO
Model Number :
HOWO375
Certification :
CE,FCC,SGS,ISO
Place of Origin :
China
MOQ :
1
Payment Terms :
Western Union, T/T, L/C
Supply Ability :
100 per month
Delivery Time :
10-15 days
Packaging Details :
nude package
Truck Model :
ZZ3317N3867
Truck Brand :
SINOTRUK—HOWO
Dimension(Lx W xH)（unloaded）（mm） :
10545*2496*3450
10545*2496*3450 :
7500*2300*1500mm bottom:10mm,side:8mm
Wheel base (mm) :
1800+3800+1350
Curb weight(kg) :
15200kg
Max speed（km/h）(km/h) :
80km/h
Fuel tanker capacity （L） :
300
Description

SPECIFICATION Of HOWO 8×4 DUMP TRUCK

Truck Model ZZ3317N3867
Truck Brand SINOTRUK—HOWO
Dimension(Lx W xH)(unloaded)(mm) 10545*2496*3450
Driving Type Right Hand Driving
Cargo body size (L*W*H, mm) 7500*2300*1500mm bottom:10mm,side:8mm
Lifting Cylinder China Brand
Lifting Type Front side Lifting
Approaching angle/Departure angle(°) 19/20
Overhang(front/rear) (mm) 1500/2095
Wheel base (mm) 1800+3800+1350
Curb weight(kg) 15200
Persons in cab(persons) 2
Gross vehicle weight(kg) 31000
Max speed(km/h)(km/h) 80

Engine Model

(Steyr technology, made in China)

 WD615.47 water-cooled,four strokes,6 cylinders in line with water cooling, directly injection
Fuel type Diesel
Horse Power, max(kw/rpm) 371HP
Emission EURO II
Fuel tanker capacity (L) 300
Transmission Model HW19710 10 forwards and 2 reverse
Steering Model 8198 Mechanical transmission with hydraulic assistance Steering gear re-circulating ball type.
Clutch

single disc, dry type, diaphragm spring ;φ430

φ430
Service brake Dual circuit compressed air brake
Parking brake spring energy, compressed air operating on rear wheels
Auxiliary brake The engine exhaust brake (EVB)
Front axle HF9 Steering with double T-cross section beam
Rear axle HC16 Casting axle housing, central double reduction with differential locks between axles and wheels
Color White, Red, Yellow. according to the customer
Tyre

12.00R20

NO.12+1 Pieces
Electrical system Battery 2X12V/180Ah
Alternator 28V-1500kw
Starter 7.5Kw/24V
Cab HW76 cab (single sleeper, with air-condition), all-steel forward control,55ºhydraulically tiltable to the front, 2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers
