Used Sinotruk Howo Original 10 Wheel Dump Tipper Truck 6x4 40 Ton

Specifications

Brand Name :

HOWO

Model Number :

ZZ3257N3847C

Certification :

CCC, ISO, CE

Place of Origin :

CHINA

MOQ :

1 unit

Price :

$14000/unit-$16500/unit

Payment Terms :

T/T, L/C, Western Union

Supply Ability :

30units per Month

Delivery Time :

10-15 working days

Packaging Details :

Nude, Waxing before delivery

Product Name :

Used Howo Truck

Lifting Type :

Ventral Tipper Hydraulic Lifting

Horse Power :

371,375,420hp

Tyres :

12.00R20

Battery :

2X12V/165Ah

Cab :

One Sleeper with A/C

Description

Used Sinotruk Howo 6x4 Original 40 Ton 10 Wheel Dump Tipper Truck

Used Tipper Highlights

Second-hand howo dump truck has strong horse power, heavy duty loading capacity and much lower price. All used sinotruk howo dump truck cargo box is 100% new, adopt the automatic welding. Material is high strength steel, more durable for transport all kinds of cargoes, like sand, stone etc. Used dump truck model is 2015 year above, and mileage ranges from 10,000km to 90,000km. Low purchase and maintenance cost, spare parts replaced to new parts, like cylinder kit, clutch plate, filter and brake liner etc.

Sinotruk Brand

SINOTRUK heavy duty trucks applied with key advanced technology.

Independent research and development reached international technical level.

Independent brand and intellectual property rights.

Engine

SINOTRUK WD615 series engine, WD615.69(247kw/2200rpm, 336hp, 1300Nm/1300-1600rpm), WD615.47(273kw/2200rpm, 371hp, 1500Nm/1300-1600rpm), EUOR II emission, loading capacity 25-40 tons.

Gearbox

Model : HW19710 10 forwards and 2 reverse + HW50 PTO

USED HOWO TRUCKS SPECIFICATIONS

Truck Model			ZZ3257N3847C
Driving Style			Left Hand Driving/Right Hand Drive
Dimension(Lx W x H)(unloaded)(mm)			8265x2496x3490
Cargo body size (LWH, mm) (mm)			5400x2300x1500mm 18.63m3
Cargo thickness(mm)			Bottom:8mm, Side:6mm
Lift type of Carriage			Middle lifting system
Approaching angle/Departure angle(°)			20/26
Overhang(front/rear) (mm)			1540/1750
Wheel base (mm)			3625+1350
Max speed(km/h)			78
Curb weight(kg)			12270
Loading Weight(kg)			30,000
Fuel tanker capacity(L)			300
Clutch			Single-plate dry clutch Φ430mm
Engine Model	Fuel type		Diesel
	Horse Power, max(kw/rpm)		371HP/375HP/420HP
	Emission		EURO II
	Model		WD615.47,water-cooled,four strokes,6 cylinders in line with water cooling , electric injection
Transmission		Model	HW19710, 10 forwards and 2 reverse
Brake system		Service brake	Dual circuit compressed air brake
		Parking brake	spring energy, compressed air operating on rear wheels
		Auxiliary brake	Engine exhaust brake
Steering system		Model	ZF8118 hydraulic steering with power assistance
Front axle		HF9 , Steering with double T-cross section beam
Rear axle		HC16, Pressed axle housing, central double reduction with differential locks between axles and wheels
Color		Optional (White ,Red ,yellow )
Tyre		12.00R20 radial tires, 10+1pcs
Electrical system		Battery		2X12V/165Ah
		Alternator		28V-1500kw
		Starter		7.5Kw/24V

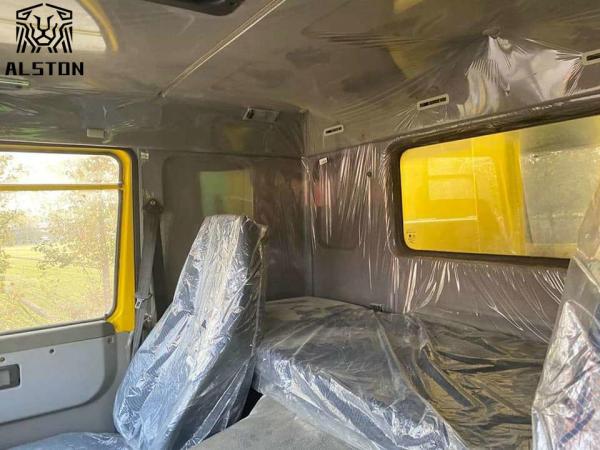

Cab		HOWO76 Cab , single sleeper with air conditioner

Shipping

Before delivery, we can wax and repaint all the trucks to ensure that each truck in your hands can play the maximum efficiency, which can save your money and time. And then improve your life.
