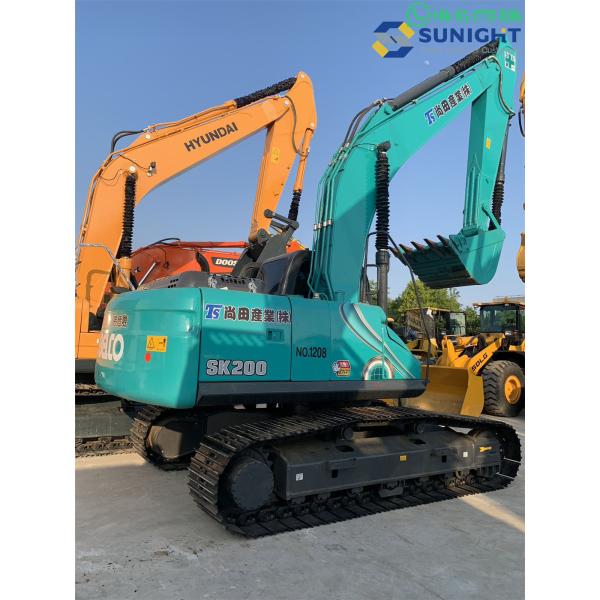

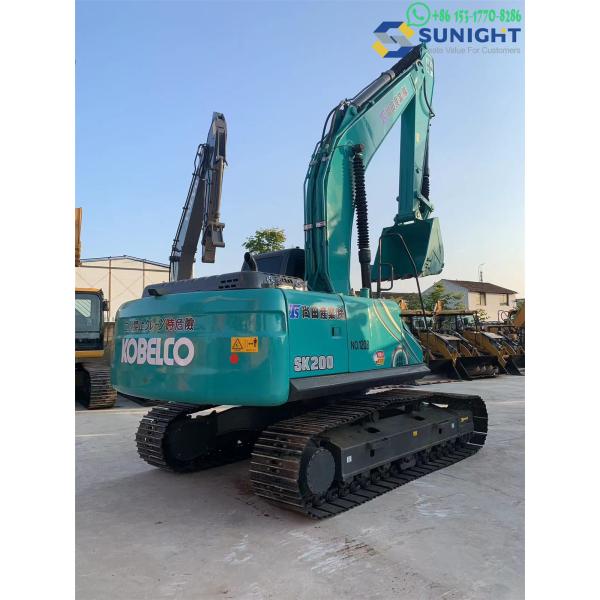

The Kobelco SK200 is a widely recognized hydraulic excavator, valued for its efficiency, durability, and adaptability to a variety of construction and earthmoving tasks. Below is an overview of its specifications and features:

Key Specifications: Kobelco SK200

Engine:

• Model: HINO J05E-TA (varies by region and model year).
• Type: 4-cylinder, water-cooled, turbocharged diesel.
• Output: Approx. 114 kW (153 HP) @ 2,100 rpm.
• Emission Standards: Compliant with Tier 3/Stage IIIA regulations.

Operating Weight:

• Approx. 20,600–21,400 kg, depending on configuration and attachments.

Performance:

• Bucket Capacity: Standard range of 0.8 to 1.2 m³.
• Maximum Digging Depth: 6,960 mm.
• Maximum Dumping Height: 7,050 mm.
• Bucket Digging Force: 157.7 kN.
• Arm Digging Force: 104.4 kN.

Hydraulics:

• Pump Type: Variable displacement.
• Max Hydraulic Flow: 2 × 228 L/min.
• System Pressure: Approx. 34.3 MPa.

Dimensions:

• Overall Length: Approx. 9,520 mm.
• Overall Width: Approx. 2,800 mm.
• Overall Height: Approx. 3,030 mm.
• Tail Swing Radius: Approx. 2,750 mm.
• Ground Clearance: 440 mm.

Fuel and Fluids:

• Fuel Tank Capacity: 330 liters.
• Hydraulic Tank Capacity: 120 liters.

Travel Speed:

• Low: 3.2 km/h.
• High: 5.5 km/h.

Key Features:

1. Fuel Efficiency: Advanced engine and hydraulic systems reduce fuel consumption without sacrificing performance.
2. High Performance: Powerful digging forces and smooth hydraulic operation ensure superior productivity.
3. Durability: Robust undercarriage and frame design to handle demanding applications.

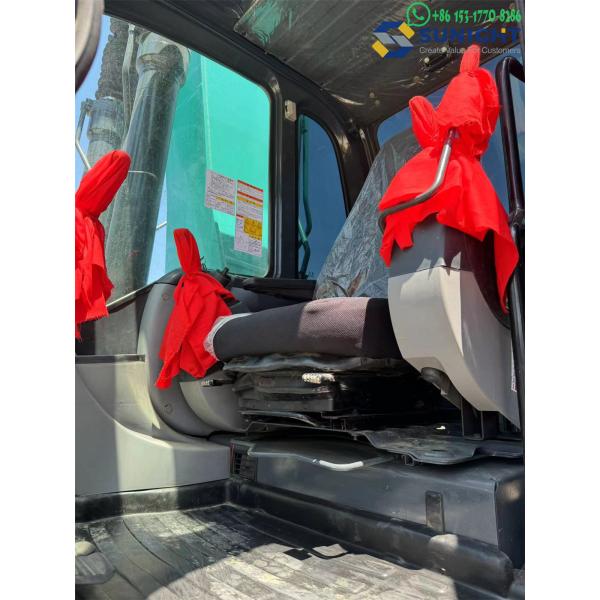

4. Operator Comfort:
   • ROPS-compliant cabin.
   • Spacious and ergonomic design.
   • Air conditioning and low vibration levels.
5. Maintenance: Easy access to critical components for routine checks and servicing.
6. Versatility: Compatible with various attachments for specific tasks like demolition, material handling, and trenching.

Applications:

• General Construction: Excavation, grading, and backfilling.
• Earthmoving: Moving large volumes of soil or materials.
• Quarry Work: Loading and material extraction.
• Demolition: Equipped with appropriate attachments for breaking structures.
• Utility Work: Trenching and pipe installation.
