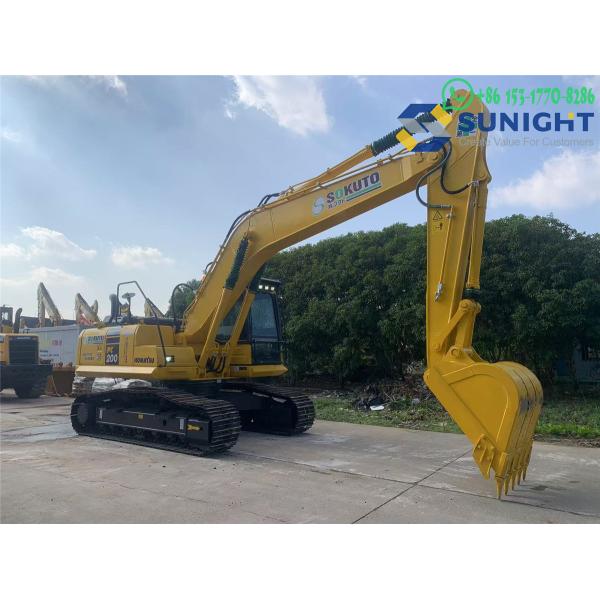

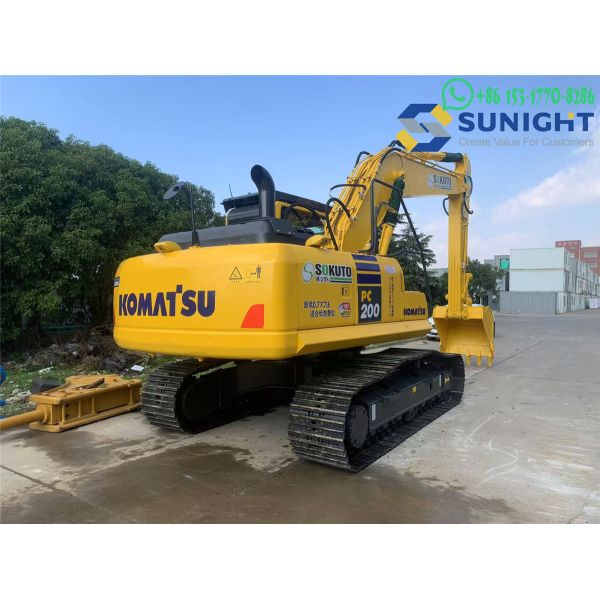

The Komatsu PC200 is one of the most popular and versatile hydraulic excavators in the 20-ton class. It is designed for a wide range of applications, including earthmoving, construction, mining, and utility work. Below are the key specifications and features:

Komatsu PC200 Key Specifications:

Engine:

• Model: Komatsu SAA6D107E-1 (varies slightly by generation).
• Power Output: Approx. 110–123 kW (148–165 HP).
• Engine Type: 6-cylinder, turbocharged, and water-cooled diesel engine.
• Emissions Standard: Tier 3/Stage IIIA compliant.

Operating Weight:

• Approx. 20,000–22,000 kg (depending on configuration and attachments).

Dimensions:

• Length: 9,500 mm (with standard boom and arm).
• Width: 2,800 mm.
• Height (Cabin): 3,000 mm.
• Ground Clearance: 425 mm.
• Tail Swing Radius: 2,850 mm.

Performance:

• Max Digging Depth: 6,700–7,000 mm.
• Max Reach at Ground Level: 9,500–10,000 mm.
• Bucket Digging Force: 13,000–15,000 kgf.
• Arm Digging Force: 9,000–10,000 kgf.

Hydraulics:

• System Type: Closed-center load sensing system (CLSS).
• Max Flow: 440 liters/min.
• Auxiliary Hydraulic Flow: Supports various attachments.

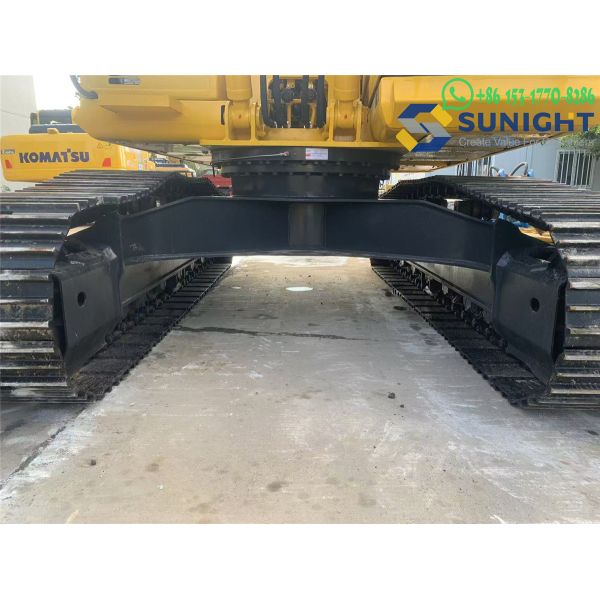

Undercarriage:

• Track Type: Steel or rubber pads (optional).
• Track Width: 600 mm (standard).
• Ground Pressure: Approx. 0.45–0.55 kg/cm².

Travel Speed:

• Low Speed: 3.0 km/h.
• High Speed: 5.5 km/h.

Fuel and Fluid Capacities:

• Fuel Tank: 400 liters.
• Hydraulic Oil Tank: 240 liters.

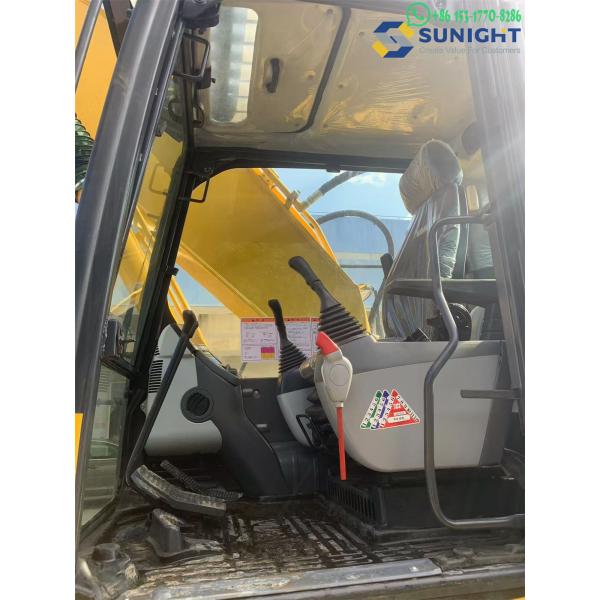

Cabin Features:

• Spacious, ergonomic design with advanced controls.
• ROPS/FOPS certified for safety.
• Climate control and air conditioning (optional in some models).
• Improved visibility and operator comfort.

Attachments:

• Standard and heavy-duty buckets.
• Hydraulic breakers, augers, grapples, and compactors.
• Long-reach booms and arms (optional configurations available).

Applications:

• Earthmoving and excavation.
• Quarrying and mining.
• Road and bridge construction.
• Infrastructure development.
