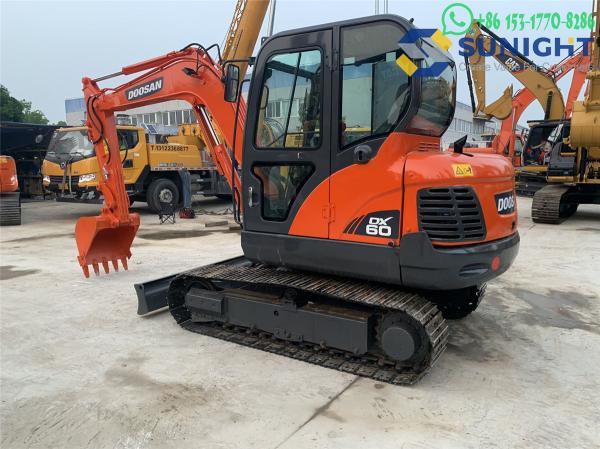

The Doosan DX60 is a compact excavator designed for a wide range of applications, including construction, landscaping, utility work, and more. Known for its reliability, fuel efficiency, and operator comfort, the DX60 is a popular choice for smaller-scale operations requiring precision and versatility.

Doosan DX60 Specifications

Engine

• Model: Yanmar 4TNV98
• Type: 4-cylinder, water-cooled, diesel engine
• Displacement: 3.319 liters (203 cubic inches)
• Gross Power: 58 hp (43 kW) at 2,200 rpm
• Net Power: Approximately 54 hp (40 kW)
• Emission Compliance: Tier III / Tier IV (depending on the variant and market)

Operating Weight

• Weight: Approximately 5,600–6,000 kg (12,345–13,228 lbs)

Dimensions

• Length: 5,850 mm (230.3 in)
• Width: 1,980 mm (77.9 in)
• Height (to top of cab): 2,550 mm (100.4 in)
• Ground Clearance: 340 mm (13.4 in)
• Tail Swing Radius: Compact, for efficient operation in tight spaces

Performance

• Max Travel Speed (High): 4.2 km/h (2.6 mph)
• Max Travel Speed (Low): 2.4 km/h (1.5 mph)
• Swing Speed: 9.5 rpm
• Bucket Breakout Force: 43.4 kN (9,760 lbf)
• Arm Digging Force: 29.5 kN (6,630 lbf)

Undercarriage

• Track Type: Steel or rubber track options
• Track Width: 400 mm (15.7 in)
• Track Length: 2,520 mm (99.2 in)
• Ground Pressure: Approximately 30.4 kPa (4.4 psi)

Hydraulics

• Pump Type: Variable displacement piston pump
• Max Flow: 132 liters per minute (34.8 gpm)
• Hydraulic System Pressure: 25,000 kPa (3,625 psi)

Bucket

• Standard Bucket Capacity: 0.18–0.22 m³ (0.24–0.29 yd³), depending on the configuration
• Max Digging Depth: 3,870 mm (152.4 in)
• Max Reach at Ground Level: 6,400 mm (252 in)
• Max Dump Height: 4,150 mm (163.4 in)

Fuel Tank

• Capacity: 120 liters (31.7 gallons)

Key Features

1. Fuel Efficiency: Equipped with a high-performance Yanmar engine for low fuel consumption and high torque.
2. Compact Design: Perfect for tight spaces and urban environments.

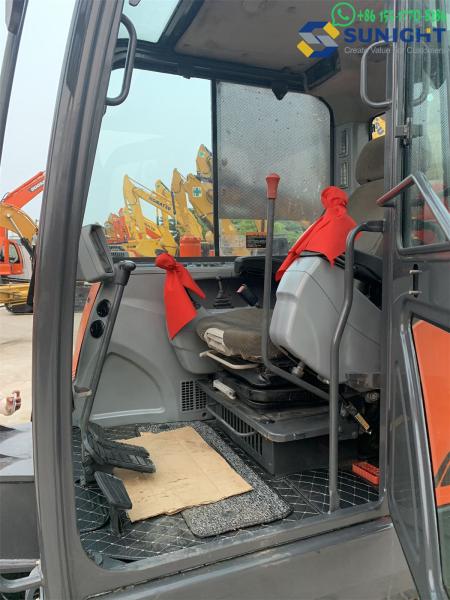

3. Enhanced Operator Comfort: Spacious cab with ergonomic controls, excellent visibility, and climate control options.
4. Advanced Hydraulics: Provides precise control and efficiency for multiple operations.
5. Durability: Reinforced undercarriage and high-quality components ensure long-term reliability.
6. Versatility: Compatible with a variety of attachments, such as buckets, augers, and breakers.

Applications

• Construction: Site preparation, trenching, and material handling.
• Landscaping: Grading, digging, and planting.
• Utility Work: Laying pipes and cables, roadwork, and drainage.
• Agriculture: Farm infrastructure projects and material handling.
