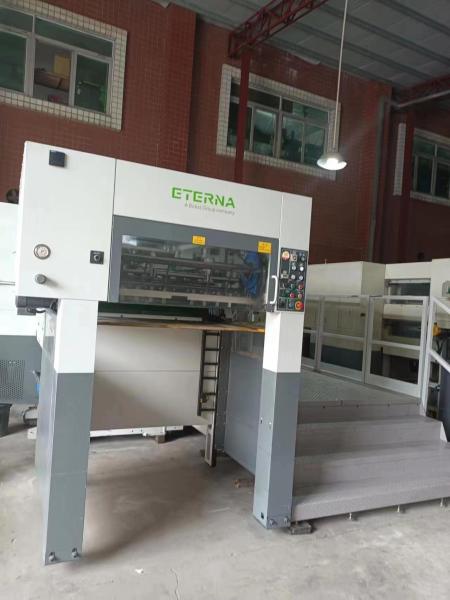

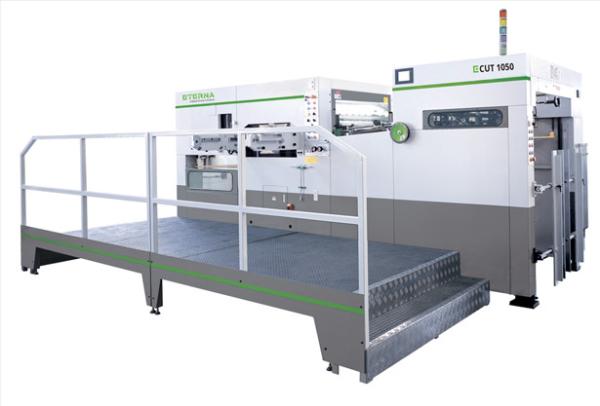

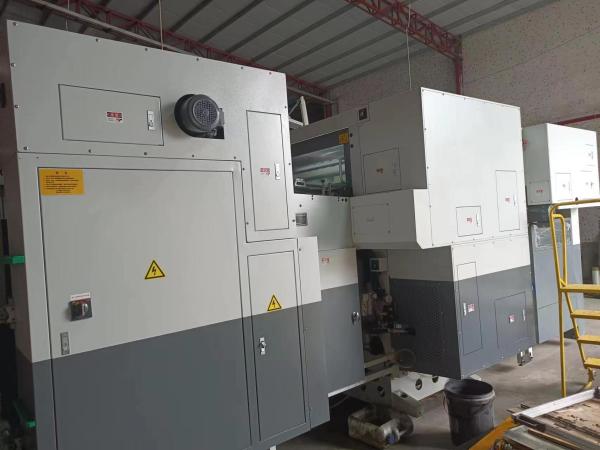

ETERNA ECUT-1050 Automatic Die Cutting and Stripping machine，Max paper size:1050 x 750 mm,Max Speed:7500S/H
ETERNA ECUT-1050 Automatic Die Cutting and Stripping machine，Max paper size:1050 x 750 mm,Max Speed:7500S/H
ETERNA ECUT-1050 Automatic Die Cutting and Stripping machine，Max paper size:1050 x 750 mm,Max Speed:7500S/H
ETERNA ECUT-1050 Automatic Die Cutting and Stripping machine，Max paper size:1050 x 750 mm,Max Speed:7500S/H
ETERNA ECUT-1050 Automatic Die Cutting and Stripping machine，Max paper size:1050 x 750 mm,Max Speed:7500S/H
ETERNA ECUT-1050 Automatic Die Cutting and Stripping machine，Max paper size:1050 x 750 mm,Max Speed:7500S/H
ETERNA ECUT-1050 Automatic Die Cutting and Stripping machine，Max paper size:1050 x 750 mm,Max Speed:7500S/H
ETERNA ECUT-1050 Automatic Die Cutting and Stripping machine，Max paper size:1050 x 750 mm,Max Speed:7500S/H
ETERNA ECUT-1050 Automatic Die Cutting and Stripping machine，Max paper size:1050 x 750 mm,Max Speed:7500S/H
ETERNA ECUT-1050 Automatic Die Cutting and Stripping machine，Max paper size:1050 x 750 mm,Max Speed:7500S/H
ETERNA ECUT-1050 Automatic Die Cutting and Stripping machine，Max paper size:1050 x 750 mm,Max Speed:7500S/H
ETERNA ECUT-1050 Automatic Die Cutting and Stripping machine，Max paper size:1050 x 750 mm,Max Speed:7500S/H
ETERNA ECUT-1050 Automatic Die Cutting and Stripping machine，Max paper size:1050 x 750 mm,Max Speed:7500S/H
ETERNA ECUT-1050 Automatic Die Cutting and Stripping machine，Max paper size:1050 x 750 mm,Max Speed:7500S/H
ETERNA ECUT-1050 Automatic Die Cutting and Stripping machine，Max paper size:1050 x 750 mm,Max Speed:7500S/H
ETERNA ECUT-1050 Automatic Die Cutting and Stripping machine，Max paper size:1050 x 750 mm,Max Speed:7500S/H
Specifications
Brand Name :
ETERNA
Model Number :
ECUT-1050
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 SET
Price :
20000 dollors-50000dollor
Payment Terms :
T/T
Supply Ability :
2set
Delivery Time :
45 days
Packaging Details :
Wrap film or box
Description

Maximum paper size: 1050 x 750 mm

Minimum paper size: 400 x 360 mm

Maximum die-cutting range: 1040 x 720 mm (can cut to 730mm when the quick clamp of the plate frame is removed)

Frame inner diameter: 1080 x 745 mm

Die cut steel plate size: 1080 x 736 mm

Applicable paper range: 80~600g/m² cardboard, corrugated cardboard thickness <4mm

Minimum scrap width: 8 mm (depending on the arrangement of die-cut products, paper factors and operating factors)

Maximum mechanical speed: 7500 times/hour (depending on the arrangement of die-cut products, paper factors and operating factors)

Maximum cutting force: 300 tons

Total electricity consumption: 19kw
Net weight: 14.5 tons

Overall dimensions of the machine: 6064 x 4049 x 2030 mm (length x width x height)
