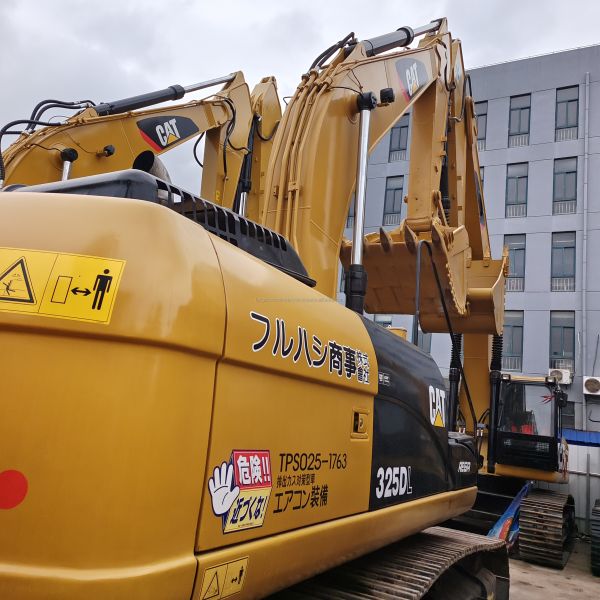

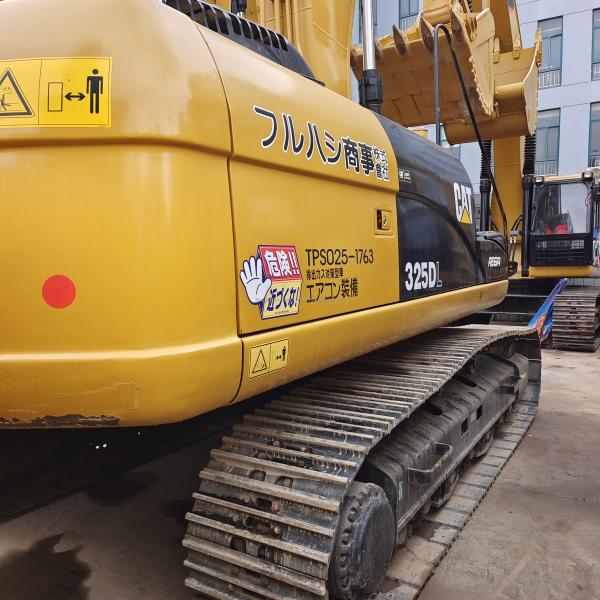

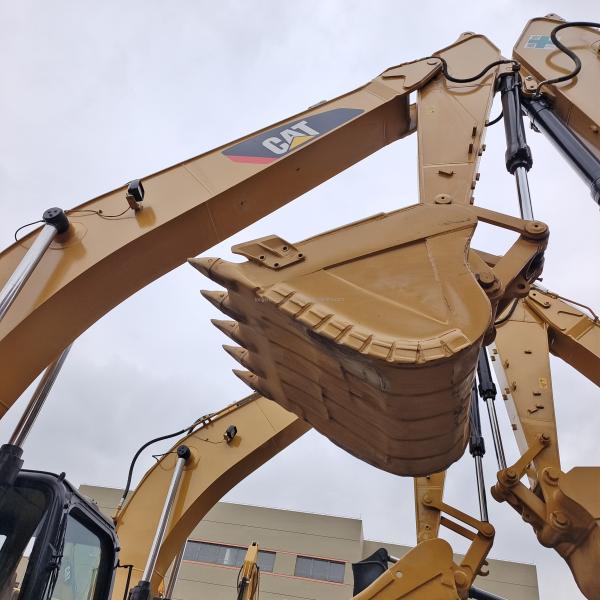

Second hand Large Excavator Used CAT 325DL Digger with ORIGINAL Hydraulic Cylinder
Second hand Large Excavator Used CAT 325DL Digger with ORIGINAL Hydraulic Cylinder
Second hand Large Excavator Used CAT 325DL Digger with ORIGINAL Hydraulic Cylinder
Second hand Large Excavator Used CAT 325DL Digger with ORIGINAL Hydraulic Cylinder
Second hand Large Excavator Used CAT 325DL Digger with ORIGINAL Hydraulic Cylinder
Second hand Large Excavator Used CAT 325DL Digger with ORIGINAL Hydraulic Cylinder
Second hand Large Excavator Used CAT 325DL Digger with ORIGINAL Hydraulic Cylinder
Second hand Large Excavator Used CAT 325DL Digger with ORIGINAL Hydraulic Cylinder
Second hand Large Excavator Used CAT 325DL Digger with ORIGINAL Hydraulic Cylinder
Second hand Large Excavator Used CAT 325DL Digger with ORIGINAL Hydraulic Cylinder
Second hand Large Excavator Used CAT 325DL Digger with ORIGINAL Hydraulic Cylinder
Second hand Large Excavator Used CAT 325DL Digger with ORIGINAL Hydraulic Cylinder
Specifications
Showroom Location :
CHINA
Place of Origin :
Japan
Operating Weight :
25000
Bucket capacity :
1
Machine Weight :
25000 KG
Hydraulic Cylinder Brand :
ORIGINAL
Hydraulic Pump Brand :
ORIGINAL
Hydraulic Valve Brand :
ORIGINAL
Engine Brand :
C7
Power :
190
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Core Components :
Pressure vessel, Motor, Other, Bearing, Gear, Pump, Gearbox, Engine, PLC
Year :
2018
Working hours :
1200
Used caterpillar 325dl :
used track shoes caterpilalr 325dl
used 325dl excavators :
second hand 325dl diggers
MOQ :
2 sets
Price :
$28,000.00/sets >=2 sets
Description

Name:ShangHai Long shou Machinery Co,Ltd
AdSecond hand Large Excavator Used CAT 325DL Digger with ORIGINAL Hydraulic CylinderSecond hand Large Excavator Used CAT 325DL Digger with ORIGINAL Hydraulic CylinderSecond hand Large Excavator Used CAT 325DL Digger with ORIGINAL Hydraulic Cylinderdress: No 1688 South Lian Hua Road, MinHang district.ShangHai, P. R. China
Contact :Tony
Whats app/ Mobile phone:+8613564042317
We chat number:13564042317

Specification
Engine:Make Caterpillar
Model:C7 ACERT
Net Power 190 hp 141.7 kw
Power Measured @ 1800 rpm
Displacement 440 cu in 7.2 L
Operational
Operating Weight 64460 lb 29240 kg
Fuel Capacity 137 gal 520 L
Cooling System Fluid Capacity 7.9 gal 30 L
Hydrauilc System Fluid Capacity 82 gal 310 L
Engine Oil Capacity 7.9 gal 30 L
Swing Drive Fluid Capacity 2.6 gal 10 L
Operating Voltage 24 V
Alternator Supplied Amperage 65 amps
Hydraulic System Relief Valve Pressure 5221 psi 36000 kPa
Hydraulic Pump Flow Capacity 124.2 gal/min 470 L/min
Swing Mechanism Swing Speed 10.2 rpm
Swing Torque 60628 lb ft 82200 Nm
Undercarriage Number of Shoes per Side 50
Shoe Size 32 in 800 mm
Number of Carrier Rollers per Side 2
Number of Track Rollers per Side 9
Max Travel Speed 3.3 mph 5.3 km/h
Drawbar Pull 55977 lb 249 kN
Track Gauge 8.5 ft in 2590 mm
package and shipping

load method

advantage and weekness :best ,keep machine complete and well .u can use when received it ,only waste freight

Second hand Large Excavator Used CAT 325DL Digger with ORIGINAL Hydraulic CylinderSecond hand Large Excavator Used CAT 325DL Digger with ORIGINAL Hydraulic Cylinder

Method 2 (take boom and bucket out ,put boom on top of machine or other pieces ,same CBM )

Second hand Large Excavator Used CAT 325DL Digger with ORIGINAL Hydraulic CylinderSecond hand Large Excavator Used CAT 325DL Digger with ORIGINAL Hydraulic CylinderSecond hand Large Excavator Used CAT 325DL Digger with ORIGINAL Hydraulic Cylinder

Method 3 use 40FR Frame

Second hand Large Excavator Used CAT 325DL Digger with ORIGINAL Hydraulic CylinderSecond hand Large Excavator Used CAT 325DL Digger with ORIGINAL Hydraulic Cylinder

Second hand Large Excavator Used CAT 325DL Digger with ORIGINAL Hydraulic Cylinder

Method 4 use 40HQ container ,cheapest but destroy machine

Second hand Large Excavator Used CAT 325DL Digger with ORIGINAL Hydraulic Cylinder
