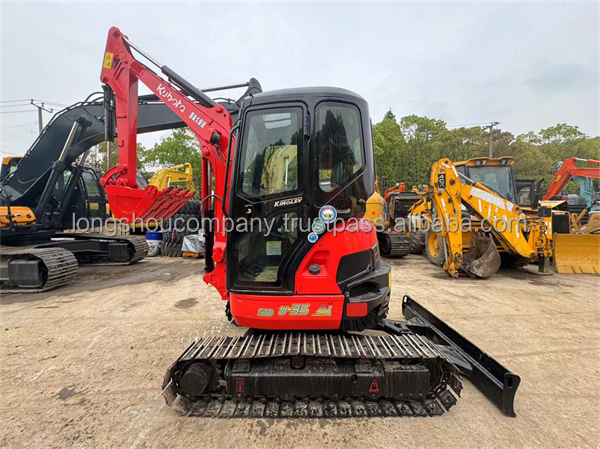

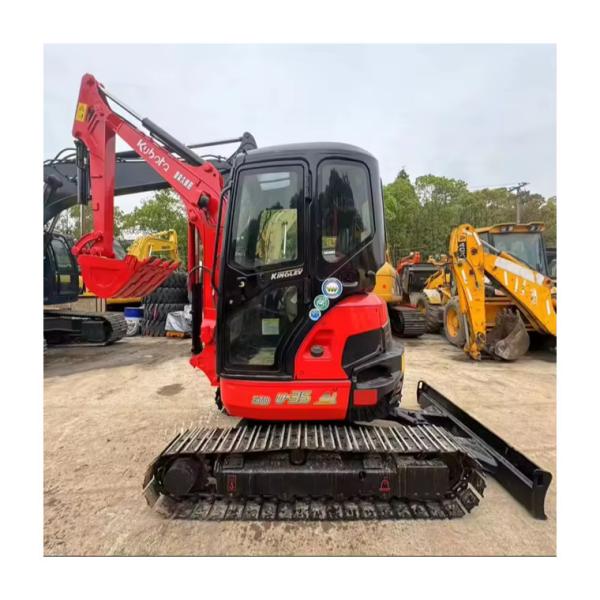

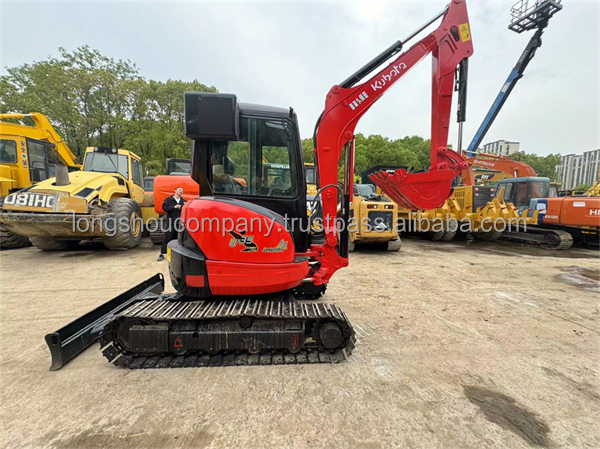

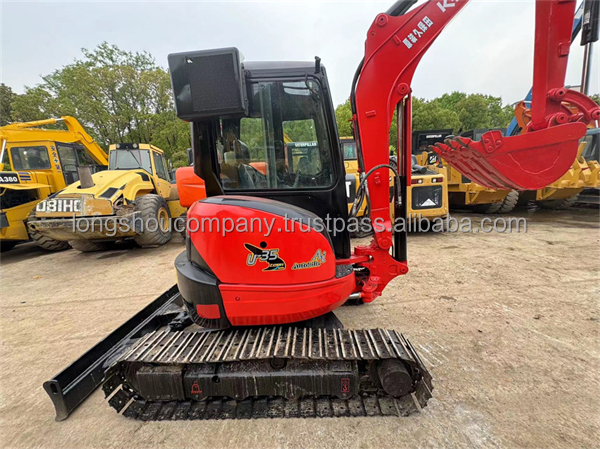

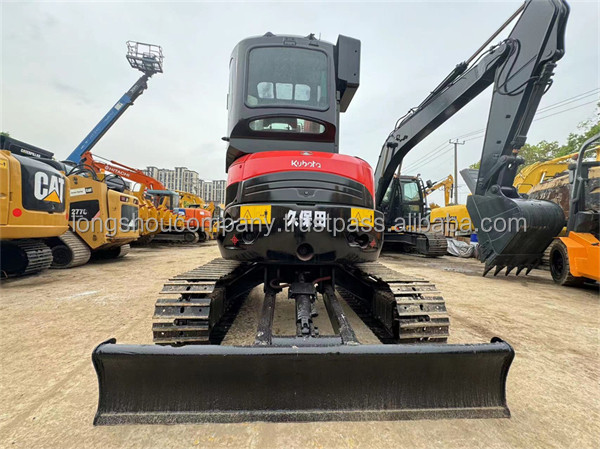

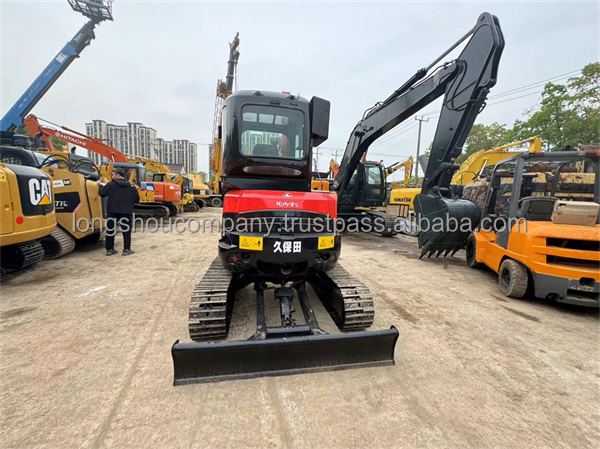

Original Japan 3.5 Ton Used Kubota U35 Roadwork Excavator with 0.35m3 Bucket Capacity
Original Japan 3.5 Ton Used Kubota U35 Roadwork Excavator with 0.35m3 Bucket Capacity
Original Japan 3.5 Ton Used Kubota U35 Roadwork Excavator with 0.35m3 Bucket Capacity
Original Japan 3.5 Ton Used Kubota U35 Roadwork Excavator with 0.35m3 Bucket Capacity
Original Japan 3.5 Ton Used Kubota U35 Roadwork Excavator with 0.35m3 Bucket Capacity
Original Japan 3.5 Ton Used Kubota U35 Roadwork Excavator with 0.35m3 Bucket Capacity
Original Japan 3.5 Ton Used Kubota U35 Roadwork Excavator with 0.35m3 Bucket Capacity
Original Japan 3.5 Ton Used Kubota U35 Roadwork Excavator with 0.35m3 Bucket Capacity
Original Japan 3.5 Ton Used Kubota U35 Roadwork Excavator with 0.35m3 Bucket Capacity
Original Japan 3.5 Ton Used Kubota U35 Roadwork Excavator with 0.35m3 Bucket Capacity
Original Japan 3.5 Ton Used Kubota U35 Roadwork Excavator with 0.35m3 Bucket Capacity
Original Japan 3.5 Ton Used Kubota U35 Roadwork Excavator with 0.35m3 Bucket Capacity
Specifications
Showroom Location :
shanghai
Place of Origin :
janpan
Operating Weight :
3ton
Bucket capacity :
0.35m³
Machine Weight :
3887 KG
Hydraulic Cylinder Brand :
original
Hydraulic Pump Brand :
original
Hydraulic Valve Brand :
original
Engine Brand :
Kubota
Power :
original
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Core Components :
Pressure vessel, Motor, Other, Bearing, Gear, Pump, Gearbox, Engine, PLC
Year :
2021
Working hours :
0-2000
Price :
$13,800.00/barrels >=1 barrels
Description

Original Japan 3.5 Ton Used Kubota U35 Roadwork Excavator with 0.35m3 Bucket Capacity

Original Japan 3.5 Ton Used Kubota U35 Roadwork Excavator with 0.35m3 Bucket Capacity

Parameter configuration of Kubota U35 excavator

specifications

Power Traditional Power

Manufacturer joint venture/import

Bucket Backhoe

Tonnage (ton) 3

Working weight of the whole machine (kg) 3867

Bucket width (mm) 600/550

Bucket capacity (m ³) zero point one

performance

Rotation speed (rpm) 9

Walking speed (km/h) 3.0/4.6

Climbing ability (%) 30 °

Bucket excavation force (kN) 29.5

dynamic system

Engine model D1703-E4

Rated power (kW/rpm) 18.5/2200

Displacement (L) 1.647

hydraulic system

Main pump type variable pump * 2+gear pump * 2

Traveling hydraulic motor type: 2-speed plunger hydraulic motor

Rotary hydraulic motor type Plunger hydraulic motor

Oil capacity

Fuel tank (L) 45.1

Main body size

Total length of transportation (mm) 4754

Total transportation width (mm) 1700

Total transportation height (mm) 2476

Total length of track (mm) 2081

Track shoe width (mm) 300

Minimum ground clearance (mm) 287

Minimum turning radius of the front working device (mm) 2251

Rear end turning radius (mm) 900

Scope of work

Maximum excavation radius (mm) 5275

Maximum excavation depth (mm) 2989

Maximum excavation height (mm) 4826

Maximum unloading height (mm) 3404

Maximum vertical excavation depth (mm) 2318

Bulldozer width x height (mm) 1700 * 341

Bulldozer lifting or pushing depth (mm) 392/425
Original Japan 3.5 Ton Used Kubota U35 Roadwork Excavator with 0.35m3 Bucket CapacityOriginal Japan 3.5 Ton Used Kubota U35 Roadwork Excavator with 0.35m3 Bucket CapacityOriginal Japan 3.5 Ton Used Kubota U35 Roadwork Excavator with 0.35m3 Bucket CapacityOriginal Japan 3.5 Ton Used Kubota U35 Roadwork Excavator with 0.35m3 Bucket Capacity
