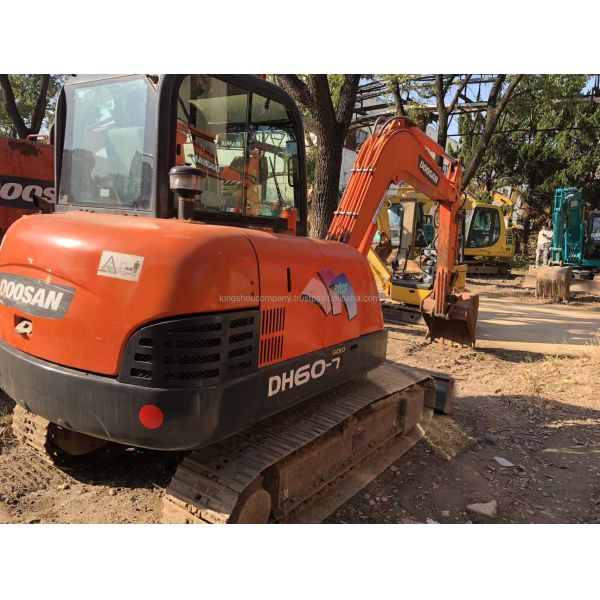

Second Hand Doosan Dh60 7 6ton Mini Crawler Dredging Excavator with 0.2 Bucket Capacity
Second Hand Doosan Dh60 7 6ton Mini Crawler Dredging Excavator with 0.2 Bucket Capacity
Second Hand Doosan Dh60 7 6ton Mini Crawler Dredging Excavator with 0.2 Bucket Capacity
Second Hand Doosan Dh60 7 6ton Mini Crawler Dredging Excavator with 0.2 Bucket Capacity
Second Hand Doosan Dh60 7 6ton Mini Crawler Dredging Excavator with 0.2 Bucket Capacity
Second Hand Doosan Dh60 7 6ton Mini Crawler Dredging Excavator with 0.2 Bucket Capacity
Second Hand Doosan Dh60 7 6ton Mini Crawler Dredging Excavator with 0.2 Bucket Capacity
Second Hand Doosan Dh60 7 6ton Mini Crawler Dredging Excavator with 0.2 Bucket Capacity
Second Hand Doosan Dh60 7 6ton Mini Crawler Dredging Excavator with 0.2 Bucket Capacity
Second Hand Doosan Dh60 7 6ton Mini Crawler Dredging Excavator with 0.2 Bucket Capacity
Second Hand Doosan Dh60 7 6ton Mini Crawler Dredging Excavator with 0.2 Bucket Capacity
Second Hand Doosan Dh60 7 6ton Mini Crawler Dredging Excavator with 0.2 Bucket Capacity
Specifications
Showroom Location :
CHINA
Place of Origin :
KOREA
Operating Weight :
5550
Bucket capacity :
0.2
Machine Weight :
5550 KG
Hydraulic Cylinder Brand :
original

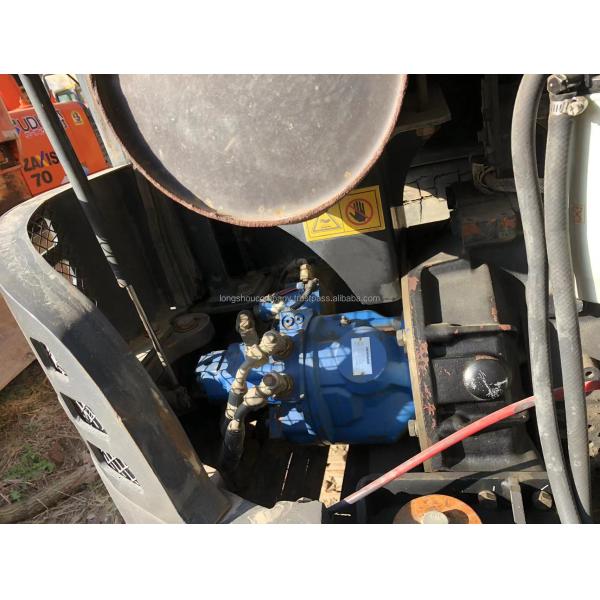

Hydraulic Pump Brand :
ENERPAC, original
Hydraulic Valve Brand :
original

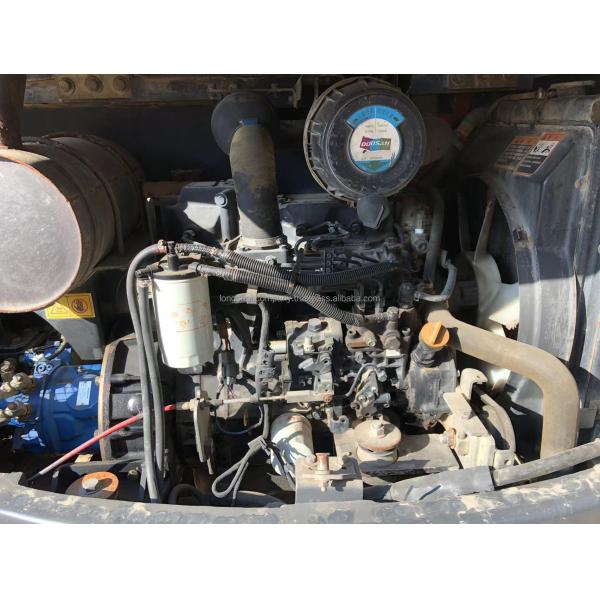

Engine Brand :
YANG MA 4TNV94L
Power :
38.1KW
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Core Components :
Pressure vessel, Motor, Other, Bearing, Gear, Pump, Gearbox, Engine, PLC
Year :
2019
Working hours :
1200

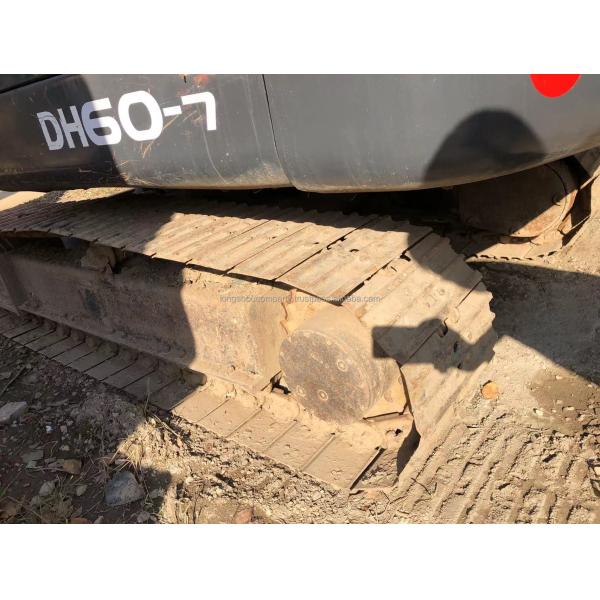

Used track shoes doosan dh60-7 :
second hand dh60-7 excavators
used doosan mini excavators dh60-7 :
used dh60-7 track shoes mini excavators korea made
MOQ :
2 sets
Price :
$15,000.00/sets >=2 sets
Description

About us

Second Hand Doosan Dh60 7 6ton Mini Crawler Dredging Excavator with 0.2 Bucket Capacity

Second Hand Doosan Dh60 7 6ton Mini Crawler Dredging Excavator with 0.2 Bucket CapacitySecond Hand Doosan Dh60 7 6ton Mini Crawler Dredging Excavator with 0.2 Bucket CapacitySecond Hand Doosan Dh60 7 6ton Mini Crawler Dredging Excavator with 0.2 Bucket CapacitySecond Hand Doosan Dh60 7 6ton Mini Crawler Dredging Excavator with 0.2 Bucket CapacitySecond Hand Doosan Dh60 7 6ton Mini Crawler Dredging Excavator with 0.2 Bucket CapacitySecond Hand Doosan Dh60 7 6ton Mini Crawler Dredging Excavator with 0.2 Bucket CapacitySecond Hand Doosan Dh60 7 6ton Mini Crawler Dredging Excavator with 0.2 Bucket CapacitySecond Hand Doosan Dh60 7 6ton Mini Crawler Dredging Excavator with 0.2 Bucket CapacitySecond Hand Doosan Dh60 7 6ton Mini Crawler Dredging Excavator with 0.2 Bucket CapacitySecond Hand Doosan Dh60 7 6ton Mini Crawler Dredging Excavator with 0.2 Bucket Capacity

Name:ShangHai Long shou Machinery Co,Ltd

Address: No 1688 South Lian Hua Road, MinHang district.ShangHai, P. R. China

Contact :warm qiu

Whats app/Mobile phone:+8618019387660

We chat number:18019387660

specifications

Tonnage (ton) 6

Working weight of the whole machine (kg) 5550

Bucket capacity (m ³) 0.09-0.2

Boom length (mm) 3000

Stick length (mm) 1600

Origin Yantai, Shandong

Power Traditional Power

Manufacturer joint venture/import

Bucket Backhoe

dynamic system

Engine model Yangma 4TNV94L

Rated power (kW/rpm) 38.1/2200

Cooling method: water cooling

Number of cylinders 4

Working form: air to air intercooling

performance

Bucket excavation force (kN) 37.7

Dipper arm excavation force (kN) 28.4

hydraulic system

Maximum flow rate of main pump (l/min) 55 × 2

Hydraulic circuit for walking (Mpa) 20.6

Rotary hydraulic circuit (Mpa) 21.6

Main pump type variable axial piston pump × 2

Working hydraulic oil circuit (Mpa) 20.6

Pilot pump flow rate (L/min) 9.9

Main body size

Total length of transportation (mm) 5850

Total transportation width (mm) 1880

Total transportation height (mm) 2575

Full height of cab (mm) 2575

Minimum ground clearance (mm) 350

Rear end turning radius (mm) 1650

Boarding width (mm) 1885

Total length of track (mm) 2540

Track gauge (mm) 1480

Track shoe width (mm) 400

Total width of track (mm) 1880

Track grounding length (mm) 1990

Scope of work

Maximum excavation radius (mm) 6150

Maximum excavation depth (mm) 3820

Maximum excavation height (mm) 5760

Maximum unloading height (mm) 4030

package and shipping

load method

advantage and weekness :best ,keep machine complete and well .u can use when received it ,only waste freight

Second Hand Doosan Dh60 7 6ton Mini Crawler Dredging Excavator with 0.2 Bucket CapacitySecond Hand Doosan Dh60 7 6ton Mini Crawler Dredging Excavator with 0.2 Bucket Capacity

Method 2 (take boom and bucket out ,put boom on top of machine or other pieces ,same CBM )

Second Hand Doosan Dh60 7 6ton Mini Crawler Dredging Excavator with 0.2 Bucket CapacitySecond Hand Doosan Dh60 7 6ton Mini Crawler Dredging Excavator with 0.2 Bucket CapacitySecond Hand Doosan Dh60 7 6ton Mini Crawler Dredging Excavator with 0.2 Bucket Capacity

Method 3 use 40FR Frame

Second Hand Doosan Dh60 7 6ton Mini Crawler Dredging Excavator with 0.2 Bucket CapacitySecond Hand Doosan Dh60 7 6ton Mini Crawler Dredging Excavator with 0.2 Bucket Capacity

Second Hand Doosan Dh60 7 6ton Mini Crawler Dredging Excavator with 0.2 Bucket Capacity

Method 4 use 40HQ container ,cheapest but destroy machine

Place of Origin Korea
