Small Household Excavator 1.5 Ton Mini Compact Excavator For Municipal Engineering
Small Household Excavator 1.5 Ton Mini Compact Excavator For Municipal Engineering
Small Household Excavator 1.5 Ton Mini Compact Excavator For Municipal Engineering
Small Household Excavator 1.5 Ton Mini Compact Excavator For Municipal Engineering
Small Household Excavator 1.5 Ton Mini Compact Excavator For Municipal Engineering
Small Household Excavator 1.5 Ton Mini Compact Excavator For Municipal Engineering
Specifications
Brand Name :
deyikexin
Model Number :
1.5 Ton
Place of Origin :
China
MOQ :
1
Price :
US $ 5350~5550 set
Payment Terms :
T/T
Supply Ability :
200 sets each month
Delivery Time :
within 35days
Packaging Details :
Wooden box
Product name :
Operating Weight 1.5 Ton Mini Digger Small Excavator For Municipal Engineering
Power :
8.9kw
Color :
Customized
Walking type :
Crawler Excavator
Use :
farm agricultural digge household excavator
Application :
One machine multi-purpose suitable for all dinds of work
Description

Operating Weight 1.5 Ton Mini Digger Small Excavator For Municipal Engineering

Characteristics:

1. Hydraulic pilot devices on both sides of the mini excavator can be optionally configured.
2. Equipped with engines of renowned brands, the quality is guaranteed. Not only does it consume less fuel, but it is also more energy-efficient.
3. It uses rubber tracks and gear transmission, providing stronger grip. The extension and retraction can be automatically selected.
4. For the traveling motor and the rotary motor, additional oil drain pipes should be installed.

Application:

The 1.5-ton mini excavator is widely used in rural orchards, field nurseries, pipeline excavation, river regulation, engineering contracting, etc.

Advantage:

This product has six major advantages: long-lasting battery life, powerful performance, 360° rotation, high efficiency and low consumption, simple operation and excellent quality.

Specification:

Small Household Excavator 1.5 Ton Mini Compact Excavator For Municipal Engineering

Overall Size(mm) Working Range(mm)
Wheel track 935 Digging height 2585
Total track length 1235 Unloading height 1810
Track ground length 380 Digging depth 1735
Tail turning radius 870 Digging distance 1030
Chassis width 1000 Turning radius 2815
Track width 175 Height at minimum turning radius 1390
Track height 320 Maximum lifting height of dozer shovel 295
Seat to floor height 2590 Maximum depth of dozer shovel 270
Seat to floor height 1560
Total vehicle height 2190
Performance Parameter
Operating weight 1500 kg
Bucket capacity 0.03m3
Working device form backhoe
Engine Displacement 0.719L
Rated power/speed 8.9kw/2200rpm 14.9kw/3600rpm
Maximum torque/speed 45NM/2800rpm
Speed and digging power Upper travel speed 2.4km/h
Turning speed 9rpm
Tope climbing ability 58%
Bucket digging force 10.5KN
Bucket rod digging force 7.2KN
Upper tractive force limit 12.2KN
Ground specific voltage 25.6kPa
Track material Rubber
Track tensioning device type Screw tensioning
Hydraulic and liquid capacity Pump type Gear pump
Working pressure 18Mpa
Hydraulic tank capacity 14L
Maximum engine oil capacity (valid) 2.75/1.8L
Fuel tank capacity 10L

Packing :

Under normal circumstances, we would put the machine into the pre-packed wooden box and then place the wooden box into the container.

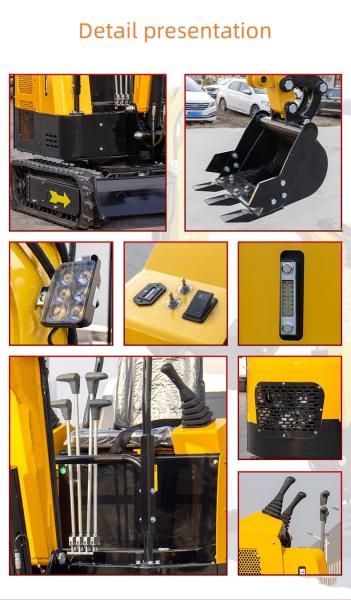

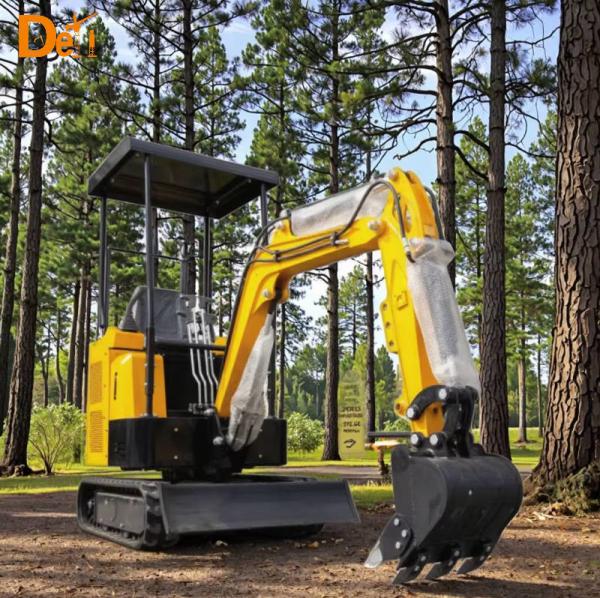

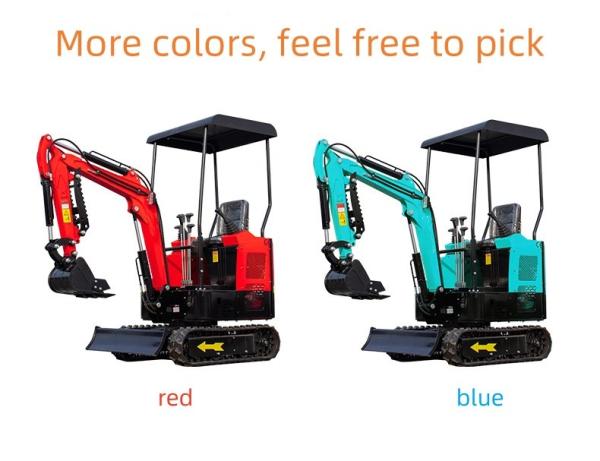

Picture Show:

Small Household Excavator 1.5 Ton Mini Compact Excavator For Municipal Engineering

Small Household Excavator 1.5 Ton Mini Compact Excavator For Municipal Engineering

Small Household Excavator 1.5 Ton Mini Compact Excavator For Municipal Engineering
