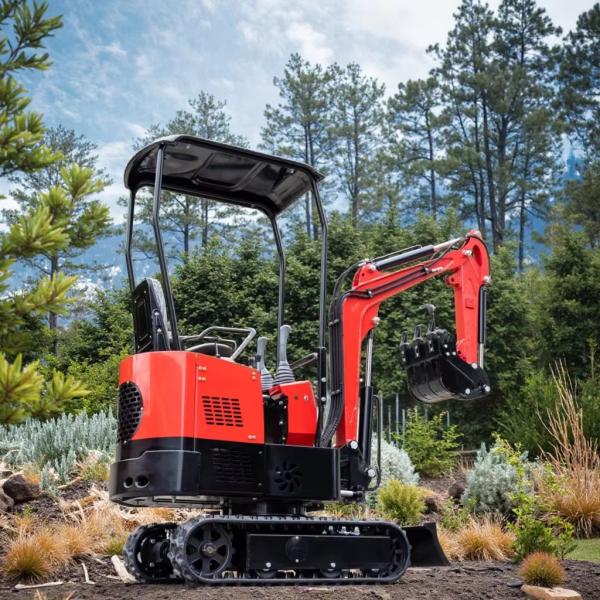

Crawler Small Excavation Equipment Hydraulic Mini Digging Machine 1 Ton For Agricultural
Crawler Small Excavation Equipment Hydraulic Mini Digging Machine 1 Ton For Agricultural
Crawler Small Excavation Equipment Hydraulic Mini Digging Machine 1 Ton For Agricultural
Crawler Small Excavation Equipment Hydraulic Mini Digging Machine 1 Ton For Agricultural
Crawler Small Excavation Equipment Hydraulic Mini Digging Machine 1 Ton For Agricultural
Crawler Small Excavation Equipment Hydraulic Mini Digging Machine 1 Ton For Agricultural
Specifications
Brand Name :
deyikexin
Model Number :
1 Ton
Place of Origin :
China
MOQ :
1
Price :
US $ 2450~2500 set
Payment Terms :
T/T
Supply Ability :
200 sets each month
Delivery Time :
within 35days
Packaging Details :
Wooden box
Product name :
Small Crawler Hydraulic Digger Mini Excavator 1 Ton Agricultural
Keywords :
mini excavator 1 ton
Transmission Type :
Hydraulic Excavator
Color :
Red, Yellow
Use :
farm agricultural digger household excavator
Application :
engineering construction，interior demolition，agricultural orchard，building construction
Description

Small Crawler Hydraulic Digger Mini Excavator 1 Ton Agricultural

Characteristics:

1. The key components of mini excavators all come from developed countries. For instance, the main hydraulic pump is from Japan, while the main valve, rotary motor and traveling motor are all from Italy.
2. Renowned brand engines are selected to meet the emission requirements of the United States and Europe. The hydraulic pipes imported from Continental AG of Germany are selected and are not prone to leakage.
3. A 100kg counterweight has been added to the rear of the machine, making the mini excavator work more stably and safely. The mini excavator is equipped with a pressure reducing valve device to make the machine easier to start.
4. The structural components of the machine are processed by the Japanese Komatsu supporting manufacturer. The mini excavator as a whole undergoes sandblasting, acid washing, phosphating and spraying treatments, which not only enhances the adhesion of the coating molecules, but also makes it more durable, smoother and less prone to rust.

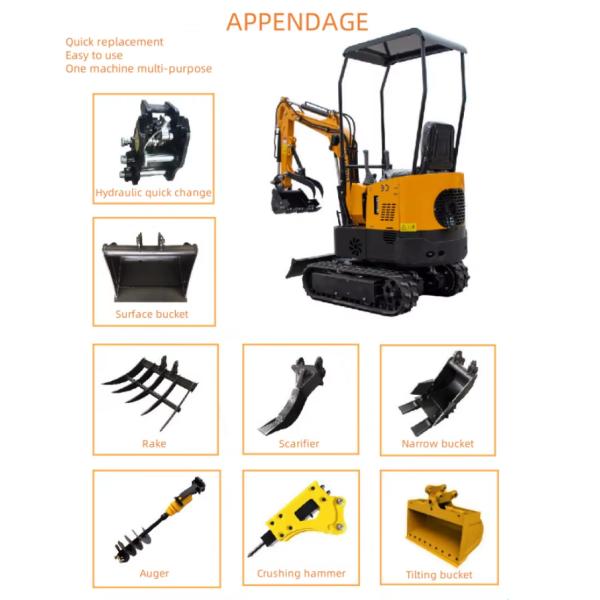

Application:

The attachments can be replaced according to different usage scenarios and are mainly used in engineering construction, indoor demolition, agricultural orchards, and building construction.

Advantage:

1. By matching different attachments, it can be used for multiple purposes with one machine, which is convenient and fast to use.
2. The manufacturing process is excellent, and all important parts are from well-known national brands.

Specification:

Overall Size(mm) Performance Parameter
Total length/transport length(A) 1230 Operating weight 1000kg
Track ground length(J) 132 Bucket capacity 0.025m3
Track length(K) 320 Rated power 8.2KW/3600r/min
Chassis width 896 Emission 6.8ml/r
Track width(F) 180 Travel speed 1.5km/h
Track gauge(G) 830-1000 Working Range(mm)
Min.ground clearance(H) 380 Digging height(a) 2610
Tail turning radius(I) 784 Unloading height(b) 1850
Bucket width 380 Digging depth(c) 1650
Digging distance(d) 1375
Turning radius(e) 2850
Height at minimum turning radius(f) 1330
Maximum lifting height of dozer shovel 345
Maximum digging depth of dozer shovel 255

Packing :

Under normal circumstances, we would put the machine into the pre-packed wooden box and then place the wooden box into the container.

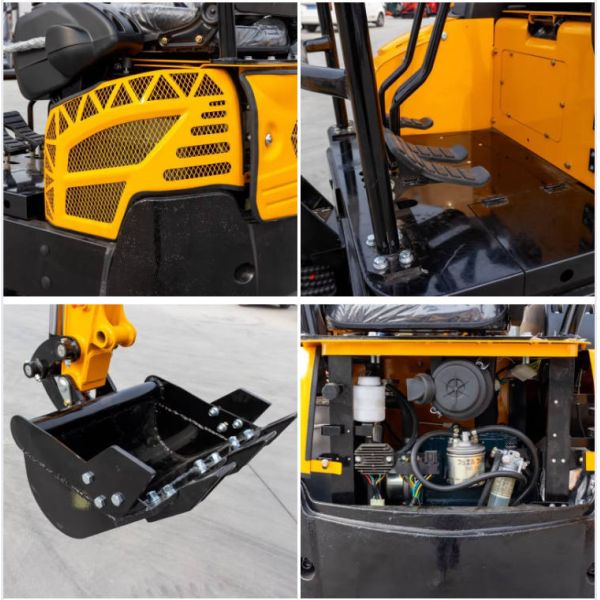

Picture Show:

Crawler Small Excavation Equipment Hydraulic Mini Digging Machine 1 Ton For Agricultural

Crawler Small Excavation Equipment Hydraulic Mini Digging Machine 1 Ton For Agricultural

Crawler Small Excavation Equipment Hydraulic Mini Digging Machine 1 Ton For Agricultural
