235H Used Sany Excavator 2nd Hand Crawler Hydraulic Digger With Isuzu 4HK1 Engine
235H Used Sany Excavator 2nd Hand Crawler Hydraulic Digger With Isuzu 4HK1 Engine
235H Used Sany Excavator 2nd Hand Crawler Hydraulic Digger With Isuzu 4HK1 Engine
235H Used Sany Excavator 2nd Hand Crawler Hydraulic Digger With Isuzu 4HK1 Engine
235H Used Sany Excavator 2nd Hand Crawler Hydraulic Digger With Isuzu 4HK1 Engine
235H Used Sany Excavator 2nd Hand Crawler Hydraulic Digger With Isuzu 4HK1 Engine
235H Used Sany Excavator 2nd Hand Crawler Hydraulic Digger With Isuzu 4HK1 Engine
235H Used Sany Excavator 2nd Hand Crawler Hydraulic Digger With Isuzu 4HK1 Engine
235H Used Sany Excavator 2nd Hand Crawler Hydraulic Digger With Isuzu 4HK1 Engine
235H Used Sany Excavator 2nd Hand Crawler Hydraulic Digger With Isuzu 4HK1 Engine
Specifications
Brand Name :
sany
Model Number :
235H
Certification :
CE
Place of Origin :
china
MOQ :
1
Price :
usd 14000-16000
Payment Terms :
T/T
Supply Ability :
100 sets each month
Delivery Time :
within 30 days
Packaging Details :
standard
Production Name :
Used Crawler Excavator Sany 235H Easy Operating Digger Machine
Keyword :
Used Crawler Excavator Sany 235H
Brand :
Sany
Model :
235H
Appy to :
Buliding
Moq :
1
Country :
china
Quality :
best
Description

Used Crawler Excavator Sany 235H Easy Operating Digger Machine

Characteristics :

1, Used Crawler Excavator Sany 235H equipped with an Isuzu 4HK1 engine compliant with China National IV emission standards, offering strong power and durability .

2, Used Crawler Excavator Sany 235H utilizes Kawasaki full electro-hydraulic technology, featuring low noise, high efficiency, and optimized pressure control for smoother operation .

3, Used Crawler Excavator Sany 235H reduces oil return power loss and improves digging efficiency, lowering fuel consumption by ~30% compared to traditional models.

Application :

1, Used Crawler Excavator Sany 235H Excavator Suitable for foundation excavation, road, and railway subgrade construction.

2, Used Crawler Excavator Sany 235H Applied in water conservancy, building construction, and other projects requiring medium excavation capacity.

3, Used Crawler Excavator Sany 235H equipped with reinforced boom and stick for soil and soft rock excavation in mining.

Advantage:

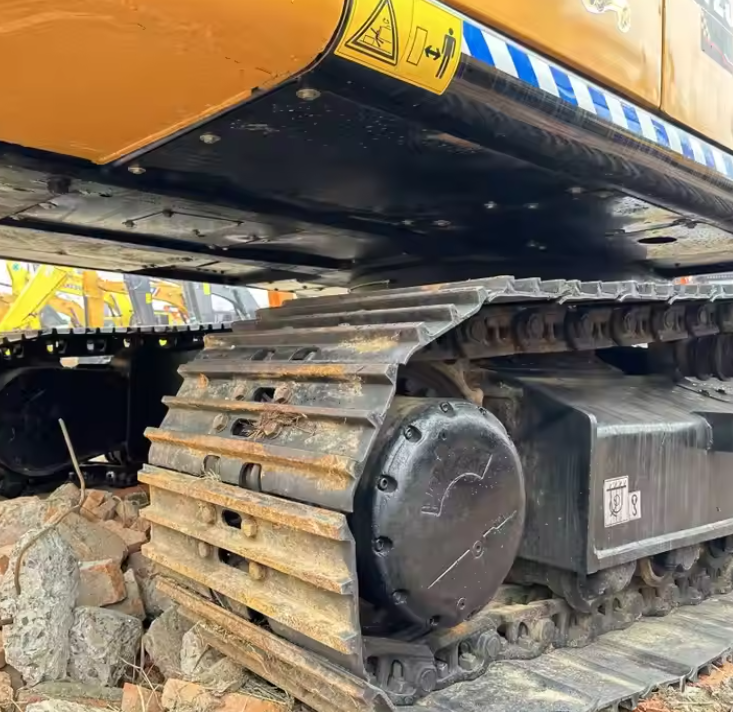

Reinforced X-frame undercarriage with high-strength steel

Track guards and spring absorbers to prevent derailment

Strengthened bucket with sealed/adjustable linkages for wear resistance

Packing :

Generally, we will transport them directly in containers.

Technology :

Operating Weight 23,500 kg
Bucket Capacity 1.0-1.35 m^{³3 (configurable)
Max. Digging Depth 6,685 mm
Max. Digging Reach 9,965 mm
Max. Digging Force (Bucket) 161 kN
Max. Digging Force (Stick) 108 kN
Engine Model Isuzu 4HK1
Rated Power 129 kW @ 2,100 rpm
Displacement 5.2L
Main Pump Kawasaki electro-hydraulic
Main Pressure 34.3 MPa
Transport Length/Width/Height 9,520×2990×3,120 mm
Track Width 600 mm
Ground Clearance 450mm
Fuel Tank 370-620L
Hydraulic Tank 250L

Picture Show :

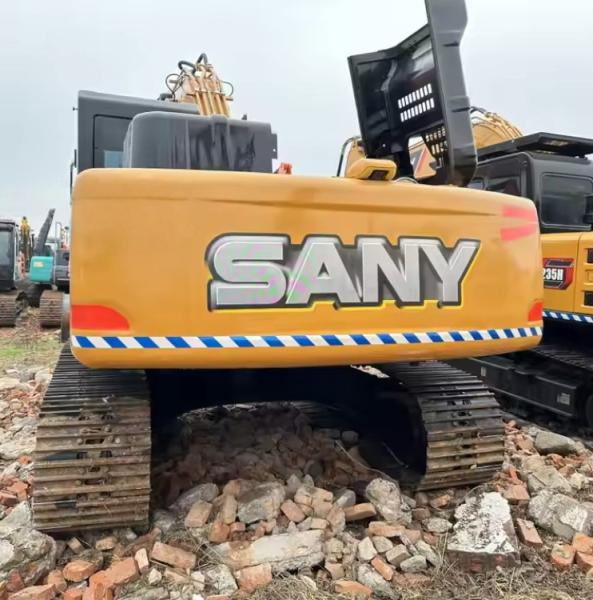

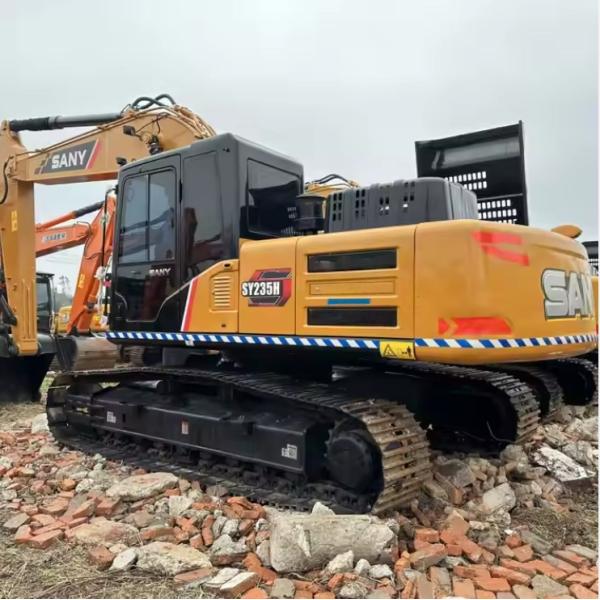

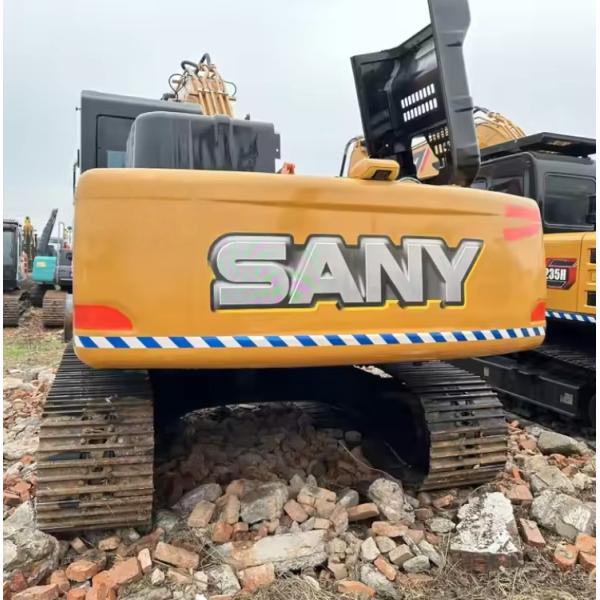

235H Used Sany Excavator 2nd Hand Crawler Hydraulic Digger With Isuzu 4HK1 Engine

235H Used Sany Excavator 2nd Hand Crawler Hydraulic Digger With Isuzu 4HK1 Engine

235H Used Sany Excavator 2nd Hand Crawler Hydraulic Digger With Isuzu 4HK1 Engine
