XCMG Truck Crane 80ton Industrial Used Truck Crane Xct80 for Sale
XCMG Truck Crane 80ton Industrial Used Truck Crane Xct80 for Sale
XCMG Truck Crane 80ton Industrial Used Truck Crane Xct80 for Sale
XCMG Truck Crane 80ton Industrial Used Truck Crane Xct80 for Sale
XCMG Truck Crane 80ton Industrial Used Truck Crane Xct80 for Sale
XCMG Truck Crane 80ton Industrial Used Truck Crane Xct80 for Sale
XCMG Truck Crane 80ton Industrial Used Truck Crane Xct80 for Sale
XCMG Truck Crane 80ton Industrial Used Truck Crane Xct80 for Sale
XCMG Truck Crane 80ton Industrial Used Truck Crane Xct80 for Sale
XCMG Truck Crane 80ton Industrial Used Truck Crane Xct80 for Sale
Specifications
MOQ :
1
Price :
US$125,000.00
Payment Terms :
T/T
Span :
65m,3-50/55M,0-80m,60m,3.5~75 m
Power Capacity :
60 kW
Availability :
varies depending on seller
Installation Method :
Stationary
Hoisting Speed :
0-100 m/min
Year :
2019
Max Lifting Capacity :
10 tons
Maximum Load Capacity :
10 tons
Ton :
8 Ton
Maximum Lifting Capacity :
10 tons
Product Type :
Used
Rated Power :
75 kW
Appy To :
Buliding
Key Word :
XCMG Q7022-16 Used Tower Crane
Max Load Capacity :
3-25 tons
Description

Basic Info.

Model NO.
xct80
Certification
GS, RoHS, CE, ISO9001, ISO9001: 2000
Condition
Used
Maximum Lifting Height
65m
Maximum Lifting Weight
80t
Shaft Number
4
Crane Jib
Five-Arm
Type
Straight Arm
Transport Package
Comply with Export Packaging Requirements
Specification
ISO
Trademark
XCMG
Origin
Xuzhou, Jiangsu, China
HS Code
87051022
Production Capacity
10/Year

XCMG Truck CRANE 80ton industrial used truck crane xct80 for sale

XCT80 Truck crane is widely used for the lifting operations in general engineering projects, such as construction site, urban renewal, communication and transportation, ports, bridge, oilfields and mine, and complex working environments.


Advantages and highlights:

* Super lifting performance

6-section boom of 55m with U-type profile is the longest of the same class in the industry; The performance is 10~15% higher than that of the competitors. The telescoping mode is updated from sequential telescoping to random telescoping. New single-cylinder pinning telescoping system brings higher telescoping reliability.

* New energy-saving hydraulic system

The min. stable slewing speed is 0.1°/s. The min. stable lifting speed (drum) is 2.5m/min. Precise and safe lifting movements can be realized.

* Drive train

CHINA Nation Heavy man diesel engine,rated power 268kw, max. torque 1800N.m

Max. travel speed 80km/h, Max. gradeability 45%

* Low-speed large-torque power drive system

Resulting in perfect combination of high power performance and low fuel consumption, i.e.12% reduction in fuel consumption for driving, 15% for operation, and 15% improvement in power performance.

Advantages and highlights:

1.Offer Test Report of Professional Institute.
2.Details Of Maintenance And Repair Items Included.
3.Price Concessions.
4.Official Factory Sourcing.
5.Reconditioning Directly From XCMG.
6.Vehicle Condition of Perfection.
7.XCMG Official Endorsement.
8.SGS Provides The Third-Party Inspection Certificate.

Product Parameters

1.Main Technical Data Table in Travel configuration

Description
Unit Parameter value
Overall length
mm 14770
Overall width
mm 2800
Overall Height
mm 3890
Axle base 1st ,2nd axle mm 1470
2nd ,3rd axle 4000
3rd ,4th axle 1350
Wheel Base
mm 2380+2075
Total vehicle mass in travel configuration
kg 50000
Axle load 1st and 2nd Axle kg 24000
3rd and 4th Axle 26000
Engine rated power
kw/(r/min) 276-290/1900
Engine rated torque
N.m/(r/min) 1800-1900/1000-1400
Max. travel speed
km/h 80
Min. steady travel speed
km/h 3
Min. turning diameter
m 24
Min. turning diameter at boom tip
m 29
Min. ground clearance
mm 371
Max. grade ability
% 40
Approach angle
° 17
Departure angle
° 15.5
Braking distance (at 30 km/h, full load )
m ≤10
Oil consumption per 100km
L 45

2.Main Technical Data Table for Lifting Operation
Max. total rated lifting capacity

t 80
Min. rated working radius

m 3
Turning radius at turntable tail

mm 4670
Max. load moment
Base boom KN.m 3060

Fully-extended boom 1392
Outrigger span
Longitudinal m 8.075

Lateral 7.9
Hoist height
Base boom m 12.8

Fully-extended boom 47.5

Fully-extended boom + Jib 64
Boom length
Base boom m 12.4

Fully-extended boom 47.5

Fully-extended boom + Jib 65
Jib offset angle

° 0, 15, 30
Time for boom raising

s 70
Time for boom lowering

s 140
Time for boom extending fully

s 150
Max. slewing speed

r/min 2
Telescoping time Fully extended
s 150
Fully retracted
100
Outrigger extending and retracting time Outrigger beam Extending Simultaneously s 20
Retracting Simultaneously 20
Outrigger jack Extending Simultaneously
50
Retracting Simultaneously
40
Hoisting speed (single line Main winch No load m/min 130
Full load 85
Auxiliary winch No load 130
Full load 85
Exterior noise level

dB (A) ≤122
Noise level at seated position

dB (A) ≤90

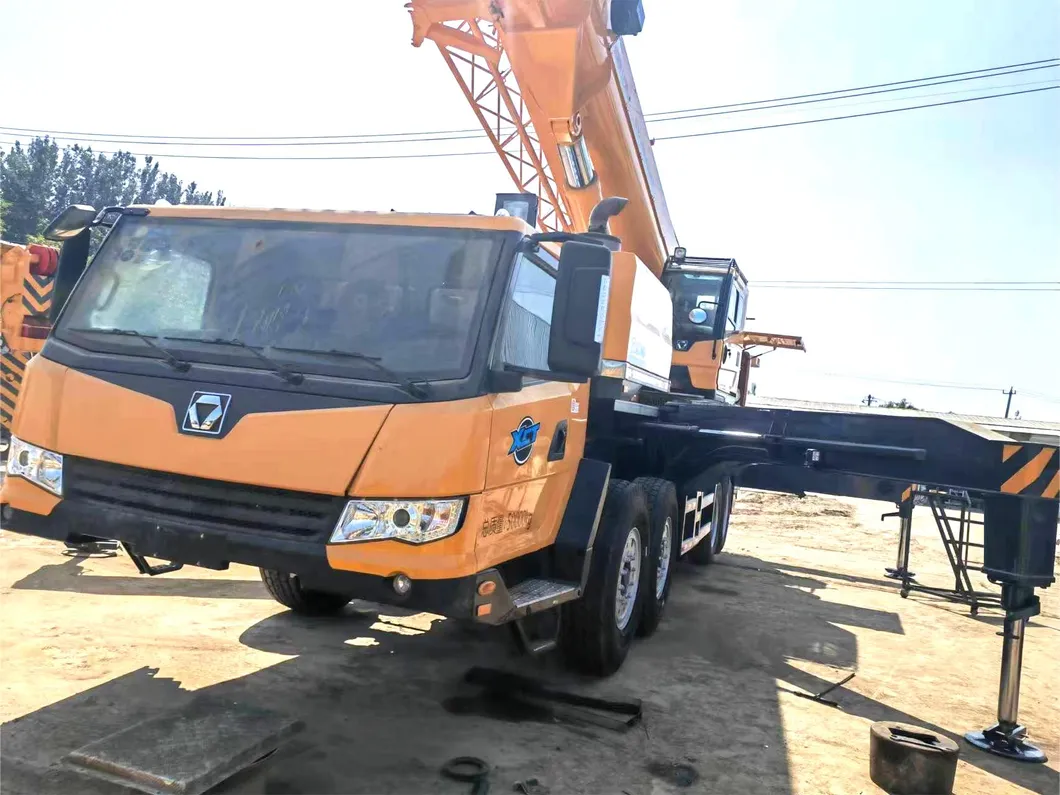

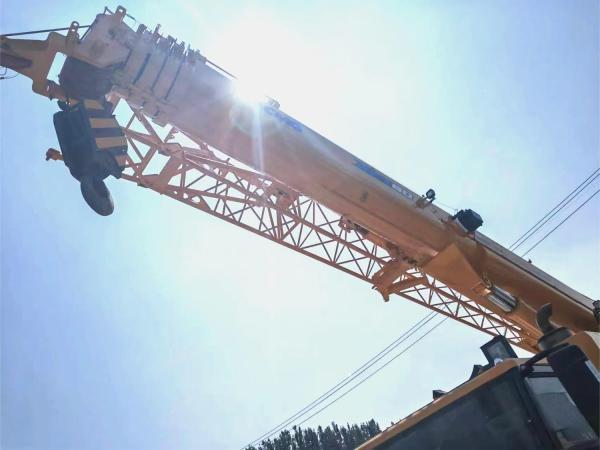

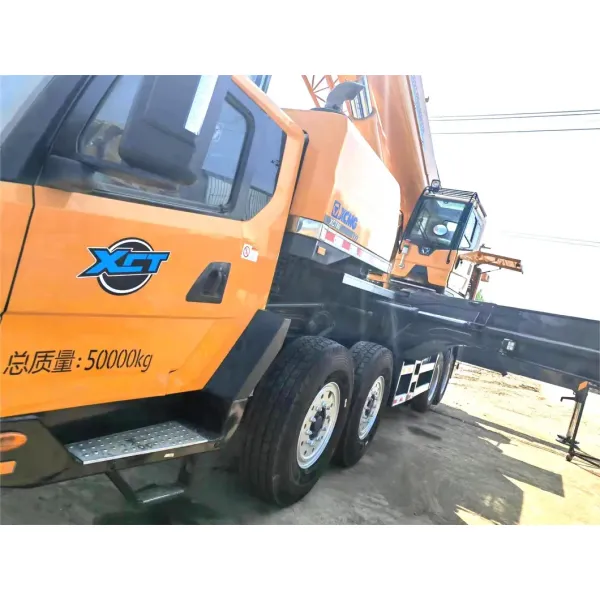

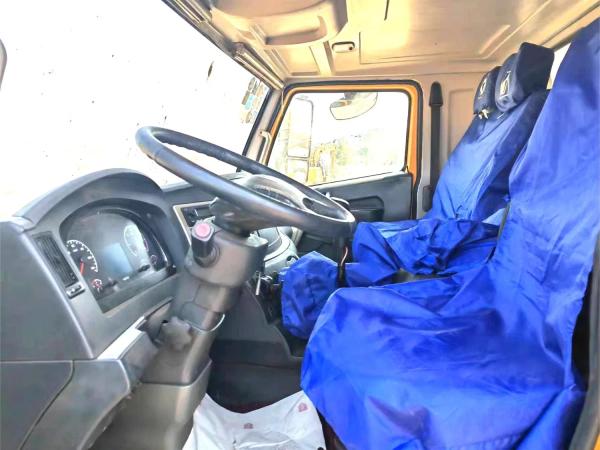

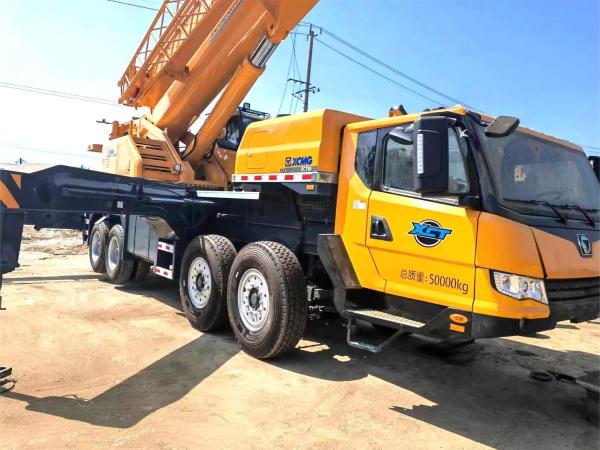

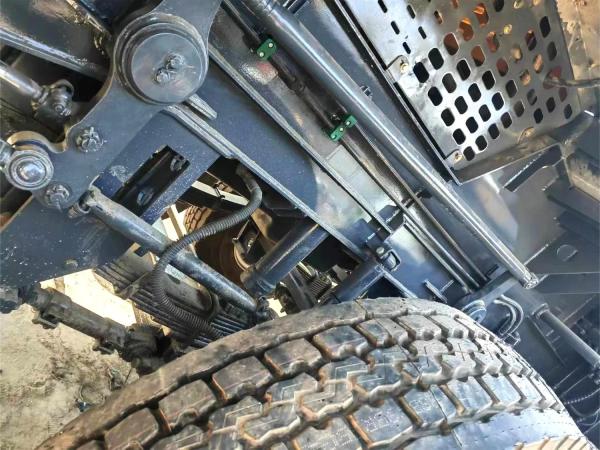

Product Show
