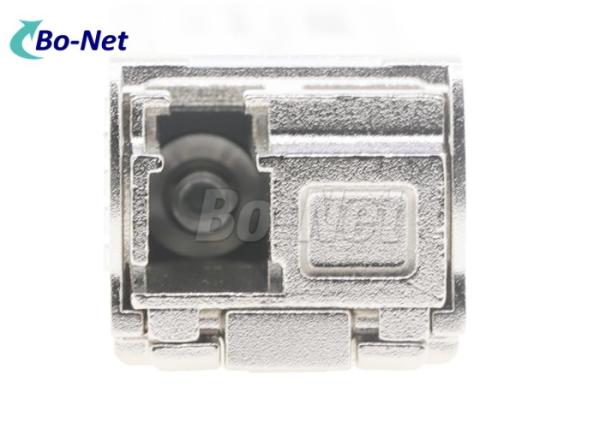

10GBASE-BX40-D Cisco Transceiver Module SFP-10G-BX40D-I 1330/1270nm 40km BIDI SFP+ SMF
10GBASE-BX40-D Cisco Transceiver Module SFP-10G-BX40D-I 1330/1270nm 40km BIDI SFP+ SMF
10GBASE-BX40-D Cisco Transceiver Module SFP-10G-BX40D-I 1330/1270nm 40km BIDI SFP+ SMF
10GBASE-BX40-D Cisco Transceiver Module SFP-10G-BX40D-I 1330/1270nm 40km BIDI SFP+ SMF
10GBASE-BX40-D Cisco Transceiver Module SFP-10G-BX40D-I 1330/1270nm 40km BIDI SFP+ SMF
10GBASE-BX40-D Cisco Transceiver Module SFP-10G-BX40D-I 1330/1270nm 40km BIDI SFP+ SMF
Specifications
Brand Name :
BO-NET
Model Number :
SFP-10G-BX40D-I
Place of Origin :
china
MOQ :
1pcs
Payment Terms :
T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability :
200pcs per week
Delivery Time :
2day
Packaging Details :
carton
Device type :
SFP Transceiver Module
Brand :
BO-NET
Product Name :
SFP-10G-BX40D-I
Distance :
40km
Wavelength :
1330/1270nm
Datarate :
10 Gb/s
Description

10GBASE-BX40-D Transceiver Module SFP-10G-BX40D-I 1330/1270nm 40km BIDI SFP+ SMF

SFP-10G-BX40D-I and SFP-10G-BX40U-I (for 40Km single-fiber bidirectional applications)

The SFP-10G-BX40D-I and SFP-10G-BX40U-I SFPs operate on a single strand of standard SMF.

A SFP-10G-BX40D-I device is always connected to a SFP-10G-BX40U-I device with a single strand of standard SMF with an operating transmission range up to 40 km.

The communication over a single strand of fiber is achieved by separating the transmission wavelength of the two devices. SFP-10G-BX40D-I transmits a 1330-nm channel and receives a 1270-nm signal. The SFP-10G-BX40U-I transmits at a 1270-nm wavelength and receives a 1330-nm signal.

The SFP-10G-BX40D-I and SFP-10G-BX40U-I SFPs support Digital Optical Monitoring (DOM) functions according to the industry-standard SFF-8472 Multisource Agreement (MSA). This feature gives the end user the ability to monitor real-time parameters of the SFP, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.

SFP+ Wavelength (nm) Cable Type Core Size (Microns) Cable Distance
SFP-10G-BX40D-I 1330 SMF G.652 40km
SFP-10G-BX40U-I 1270 SMF G.652 40km

Product Type Transmit Power (dBm) Receive Power (dBm) Transmit and Receive Wavelength (nm)
Maximum Minimum Maximum Minimum
SFP-10G-BXD-I 10G-SFP Bidirectional for 40km 4.5 -2.7 -9 -21.2

1320 to 1340 (Tx)

1260 to 1280 (Rx)
SFP-10G-BXU-I 10G-SFP Bidirectional for 40km 4.5 -2.7 -9 -21.2

1260 to 1280 (Tx)

1320 to 1340 (Rx)
Description Product Number
10GBASE-BX10-D Bidirectional for 10km SFP-10G-BXD-I
10GBASE-BX10-U Bidirectional for 10km SFP-10G-BXU-I
10GBASE-BX40-D Bidirectional for 40km SFP-10G-BX40D-I
10GBASE-BX40-U Bidirectional for 40km

SFP-10G-BX40U-I

10GBASE-BX40-D Cisco Transceiver Module SFP-10G-BX40D-I 1330/1270nm 40km BIDI SFP+ SMF

10GBASE-BX40-D Cisco Transceiver Module SFP-10G-BX40D-I 1330/1270nm 40km BIDI SFP+ SMF
