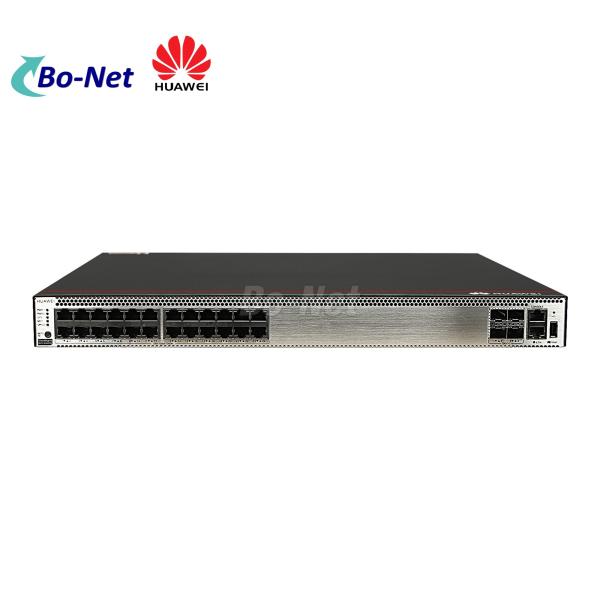

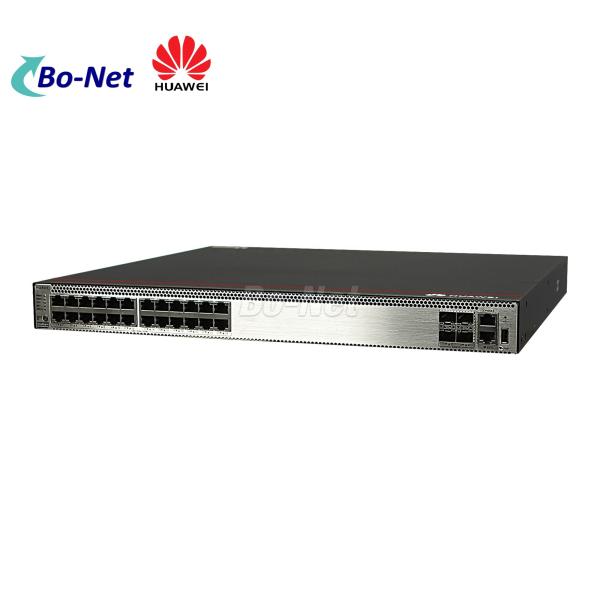

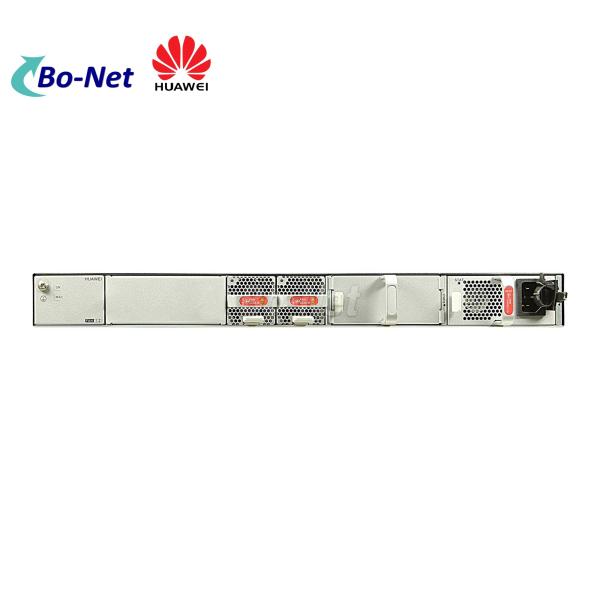

Huawei S5731S-S24T4X-A Huawei 24 Port Gigabit 4 10G SFP+ Enhanced Layer 3 Switch
Huawei S5731S-S24T4X-A Huawei 24 Port Gigabit 4 10G SFP+ Enhanced Layer 3 Switch
Huawei S5731S-S24T4X-A Huawei 24 Port Gigabit 4 10G SFP+ Enhanced Layer 3 Switch
Huawei S5731S-S24T4X-A Huawei 24 Port Gigabit 4 10G SFP+ Enhanced Layer 3 Switch
Huawei S5731S-S24T4X-A Huawei 24 Port Gigabit 4 10G SFP+ Enhanced Layer 3 Switch
Huawei S5731S-S24T4X-A Huawei 24 Port Gigabit 4 10G SFP+ Enhanced Layer 3 Switch
Specifications
Brand Name :
Huawei
Model Number :
S5731S-S24T4X-A
Certification :
CE RoHS
Place of Origin :
China, Singapore , Malaysia , Thailand , etc
MOQ :
1
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200unit per week
Delivery Time :
1-2days
Packaging Details :
original Cisco box for new items
Model :
S5731S-S24T4X-A
Data Transfer Rate :
24 10/100/1000BASE-T ports, 4 10G SFP+
Brand :
HUAWEI
Series :
Switch
Throughput: :
10/100/1000 Mbit/s auto-sensing
Description

The Huawei CloudEngine S5731S-S series switches are standard gigabit access switches tailored for the channel distribution market, with all-GE electrical downlink ports and fixed 10 GE uplink ports. CloudEngine S5731S-S series switches are next-generation gigabit access switches. Built on Huawei's unified Versatile Routing Platform (VRP), CloudEngine S5731S-S switches provide enhanced Layer 3 features, simple O&M, Intelligent Stack (iStack), flexible Ethernet networking, and mature IPv6 features. These feature-rich switches are widely used in scenarios such as enterprise campus access and aggregation, as well as data center access.
Item
Description
Memory (RAM)
4 GB
Flash
1 GB in total. To view the available flash memory size, run the display version command.
Mean time between failures (MTBF)
57.73 years
Mean time to repair (MTTR)
2 hours
Availability
> 0.99999
Service port surge protection
Common mode: ±6 kV
Power supply surge protection
Using AC power modules: ±6 kV in differential mode, ±6 kV in common mode
Using DC power modules: ±2 kV in differential mode, ±4 kV in common mode
Dimensions (H x W x D)
Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.)
Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 43.6 mm x 442.0 mm x
448.0 mm (1.72 in. x 17.4 in. x 17.7 in.)
Weight (with packaging)
9.35 kg (20.61 lb)
Stack ports
10GE SFP+ ports on the front panel
RTC
Supported
RPS
Not supported
PoE
Not supported
Rated voltage range
AC input: 100 V AC to 240 V AC, 50/60 Hz
High-Voltage DC input: 240 V DC
DC input: -48 V DC to -60 V DC
Maximum voltage range
AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz
High-Voltage DC input: 190 V DC to 290 V DC
DC input: -38.4 V DC to -72 V DC
Maximum power consumption (100% throughput, full speed of fans)
114 W
Typical power consumption (30% of traffic load, tested according to ATIS standard)
88 W

Huawei S5731S-S24T4X-A Huawei 24 Port Gigabit 4 10G SFP+ Enhanced Layer 3 SwitchHuawei S5731S-S24T4X-A Huawei 24 Port Gigabit 4 10G SFP+ Enhanced Layer 3 SwitchHuawei S5731S-S24T4X-A Huawei 24 Port Gigabit 4 10G SFP+ Enhanced Layer 3 SwitchHuawei S5731S-S24T4X-A Huawei 24 Port Gigabit 4 10G SFP+ Enhanced Layer 3 SwitchHuawei S5731S-S24T4X-A Huawei 24 Port Gigabit 4 10G SFP+ Enhanced Layer 3 Switch
