Specifications
Brand Name :
XCMG
Model Number :
XCA220
Certification :
CE , ISO9001
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T
Delivery Time :
5-7 Days
Packaging Details :
Bulk
Condition: :
Used
Maximum Lifting Height: :
13.8- 108.5m
Maximum Lifting Weight: :
220 ton
Axle Number: :
5
Jib: :
2 Section
 production date: :
2020
Description

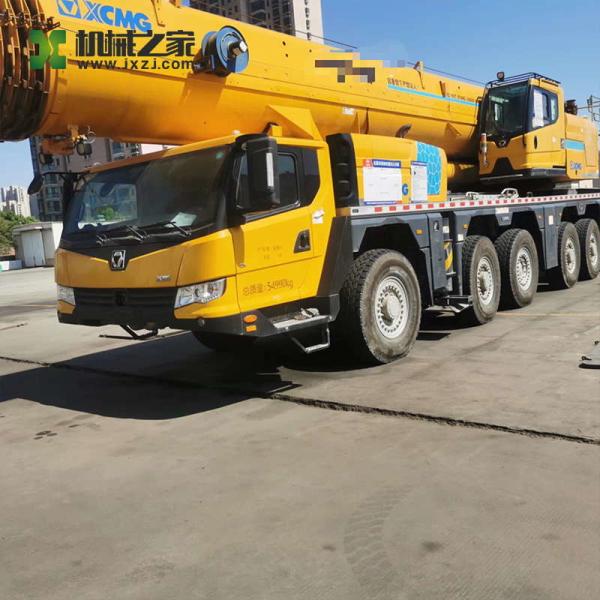

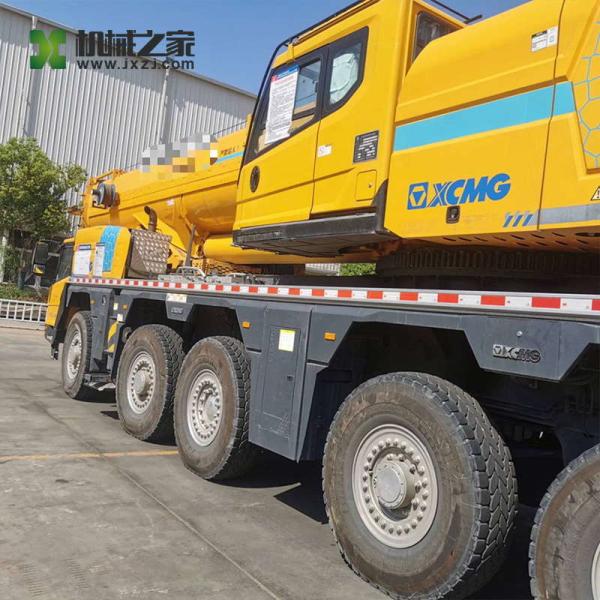

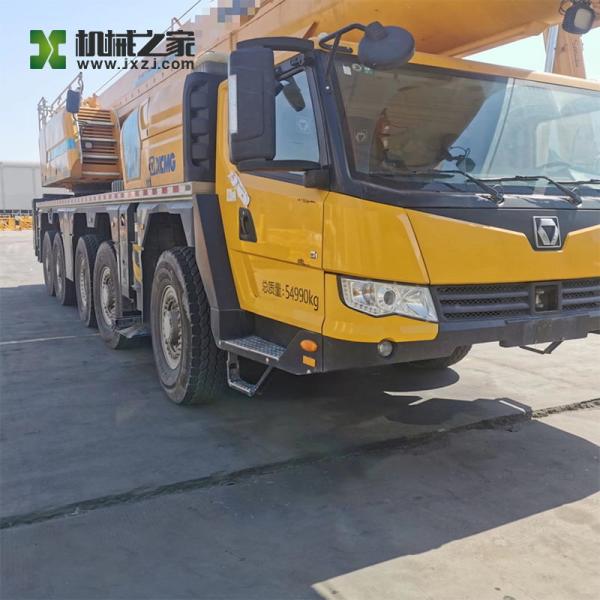

XCMG Used All-Terrain Truck Crane XCMG XCA220 Ton Second Hand Crane

Production Details:


Model NO.

XCA220

Boom Type Telescopic


Max. Rated Lifting Capacity

220000 kg Max. Lifting Height of Jib 73m


Max Gradeability

67% Working Diameter 18.5m


Transport Package

Compliant with export packaging requirements Specification

15500×2980×3930mm


Driving Mileage

220000m

Working hours

2800h


Trademark

XCMG Place of Origin China


HS Code

Supply Capacity 1 Units Per Month

  • XCMG XCA220 all-terrain crane is the five-axle 220-ton all-terrain crane with the highest lifting performance in the world.
  • Industry-leading boom length and operating performance, five-axle chassis with strong driving power and high mobility, original fully closed hydraulic system to improve operation fretting and smoothness, intelligent boom technology and human-computer interaction system make the product more intelligent and easy to operate more efficient.
  • The seven-section main boom is 73m, the jib is 44m, and the maximum system boom length can reach 108.2m.
  • Full-axle steering, small turning radius, free switching of three-axle/four-axle drive, three-wheel drive for highway driving, high driving economy; four-wheel drive is suitable for off-road and site transfer, and the climbing ability reaches 67%, the highest in the industry.


Product Parameters:

Parameter item XCA220
Dimensions *
Overall length of the whole machine (mm) 15500
Overall width of the whole machine (mm) 2980
Overall height of the whole machine (mm) 3930
Wheelbase(mm) 2650+1650+2500+1650
Tire distance(mm) 2590
Weights *
Total mass in driving state (kg) 55000
Self-dismounting counterweight mass (kg)
Axle load(kg) 12000×3+9500×2
Dynamic parameters *
Engine model
Engine model (on the car) OM460LA.E3B/3
Engine rated power (kw/(r/min)) 361.1/1800
Engine rated torque (N.m/(r/min)) 2200/1300
Engine model (get off)
Engine rated power (kw/(r/min))
Engine rated torque (N.m/(r/min))
Traveling parameters *
Traveling *
Max. travel speed (km/h) 84
Min. stable driving speed (km/h) 1~1.5
Turning *
Min. turning diameter (m) 18.5
Arm head Min. turning diameter (m) 22.5
Max. gradeability(%) 67
Min. ground clearance (mm) 280
Approach angle (°) 18
Departure angle (°) 14

Braking distance (dry and flat asphalt or concrete road,

when the vehicle speed is 30km/h) (m)

≤9
Fuel consumption per 100 kilometers (L) 65
Main performance parameters *
Max. gradeability(%) 67
Max. rated total lifting weight (t) 220
Min. rated amplitude (m) 3
Max. lifting moment of the basic boom (kN m) 7393
Turntable tail turning radius (mm) 5030
Legs *
Longitudinal (m) 8.89
Lateral (half extension) (m) 8.3
Max. lift height *
Basic boom (m) 13.4
The longest main boom (m) 73.5
The longest main boom + jib (m) 108
Boom length *
Basic boom (m) 13.4
The longest main boom (m) 73
The longest main boom + jib (m) 108.2
Longest luffing jib (m)
Working speeds *
Max. rotation speed (r/min) 1.9
Main hoisting mechanism (m/min) 130
Lifting speed (single rope, no load, 4th floor) *
Luffing jib luffing winch (m/min)
Auxiliary lifting mechanism (m/min) 130
Boom extension time *
Main boom derricking up time (s)
Full extension(s) 600
Full shrink(s) 600
Amplitude time *
Full lift (s) 55
Full arm drop(s)
Outrigger retraction--horizontal *
Simultaneously put(s)
Simultaneous receipt (s)
Outrigger retraction-vertical *
Simultaneously put(s) 100
Simultaneous receipt (s) 70
