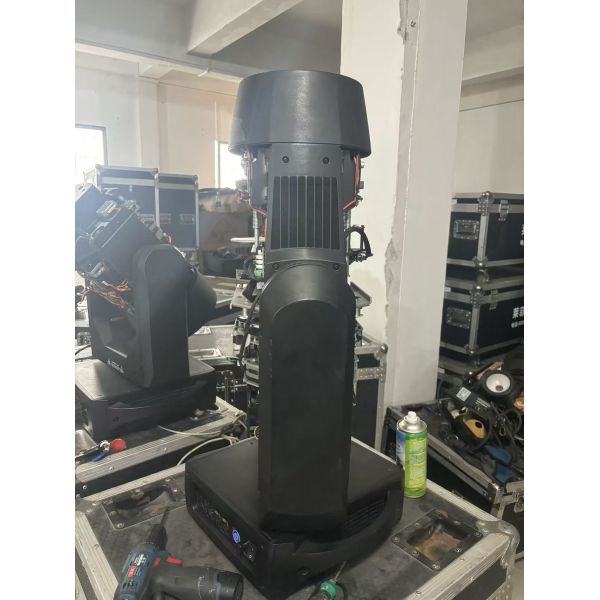

ACME XA-600 FRAMING is a professional LED moving head framing fixture designed and manufactured by ACME Lighting, a leading global provider of high-performance stage lighting equipment. It is specifically engineered for premium applications such as television studios, theaters, concert halls, and large-scale live events.

Key Features & Specifications

• Light Source: Single 600W high-power integrated LED engine
• Luminous Flux: 19,000 lumens
• Color Renderation: CRI ≥ 90, ensuring excellent color reproduction
• Color Temperature: Standard 6500K; Linear CTO (Color Temperature Orange) adjustment from 2700K to 6000K
• Beam System: Motorized zoom with a linear beam angle range of 7° to 42°
• Framing & Shaping: Equipped with 4 independent framing blades for precise, smooth shaping of the light beam. Each blade is individually controllable and capable of full blackout. The entire framing module can rotate ±45°.
• Color System:
  • Linear CMY (Cyan, Magenta, Yellow) infinite color mixing
  • 1 static color wheel with 6 colors
• Gobo System:
  • 1 rotating gobo wheel with 6 gobos + open
  • 1 fixed gobo wheel with 8 gobos + open
• Effects:
  • Bi-directional rotating 4-facet prism
  • Independent frost/focus effect for soft, natural diffusion
  • Smooth 0-100% dimming
  • Variable-speed strobe effect
• Controls:
  • Protocols: DMX512, RDM
  • DMX Channels: 30/32 channels
  • 4-button control panel with LCD display
• Electrical:
  • Power Consumption: 850W
  • Input: Auto-sensing AC 100~240V, 50/60Hz
• Lifespan: LED service life of over 20,000 hours
• Construction: Modular design for easy maintenance

Core Advantages

• Precision Framing: The advanced 4-blade framing system allows for the creation of precise, irregularly shaped beams (square, triangular, etc.), ideal for critical applications like HD TV studios.
• Superior Color Quality: High CRI and flexible CMY+CTO system provide unmatched color accuracy and creative control.
• High Efficiency: LED technology offers significant energy savings, longer lifespan, and lower heat output compared to traditional discharge lamps.
• All-in-One Functionality: Combines spot, wash, framing, and effects capabilities in a single, versatile fixture.
