Model: UGMⅡ-2 (P2.976mm)

Brand: Unilumin

Series: UGMⅡ (2nd Generation) – High-End Rental Series

Application Scenarios: Indoor Rental (Stages, Galas, Product Launches, Exhibitions)

LEDs: XinDa SMD1515 3-in-1 Black LEDs (Mainstream configuration for 2021)

• High Contrast
• High Refresh Rate
• Rear Maintenance
• High Load-Bearing Capacity
• IP65 Rating
• Robust & Tour-Ready Design

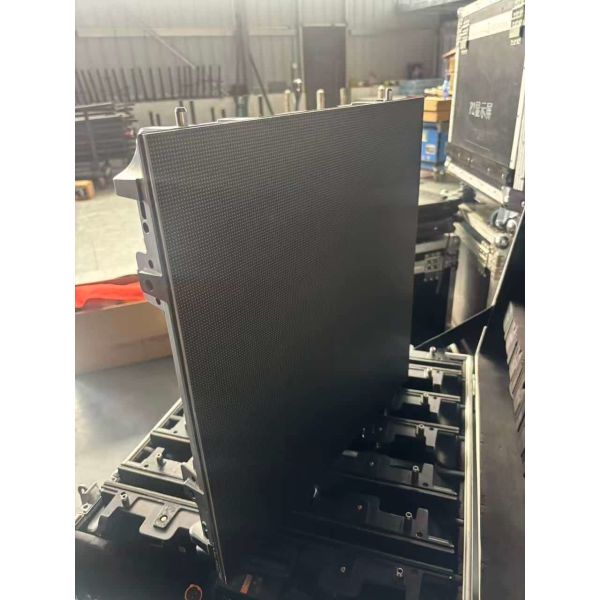

Cabinet Dimensions: 500 * 500 * 63 mm (Die-cast aluminum)

Cabinet Resolution: 168 * 168 dots

Weight: 5.9 kg/cabinet (approx. 24 kg/m²)

Assembly: One-touch locking mechanism (single-finger lock) for rapid single-person installation; supports curved configurations (±10°)

Structural Strength: Single cabinet tensile strength of 1.2 tons; suitable for hanging, stacking, and long-term touring applications

Maintenance: Pure rear-access maintenance; dual redundancy for power and signal; module removal is not required for servicing

Module: 250 * 250 mm; 84 * 84 dots; 1/32 scan ratio

LEDs: XinDa SMD1515 (1.5 * 1.5 mm) 3-in-1 RGB Black LEDs

Dimensions: 1.5 * 1.5 mm small package size—enabling higher pixel density and superior color mixing

Color: Black LED (Black Mask + Black Encapsulation)—delivering a contrast ratio of ≥4000:1

Wavelengths: R 625nm, G 525nm, B 470nm

Viewing Angle: Horizontal 140° / Vertical 120°—ensuring wide, uniform viewing angles for indoor environments

Brightness: 8–10 mcd per individual LED; 800–1000 cd/m² for the entire screen

Advantages: [Superior performance] compared to 2121 LEDs... Finer LED beads, higher contrast, and minimal light leakage result in cleaner image quality for indoor rental applications.

Pixel Pitch: 2.976mm (P2.97)

Pixel Density: 112,896 dots/m²

Brightness: 800–1000 cd/m² (Indoor Standard; Adjustable)

Refresh Rate: 1920Hz (Standard) / 3840Hz (High-End) [Flicker-free]

Grayscale: 14-bit; 4.4 Trillion Colors

Contrast Ratio: ≥4000:1 (Enhanced by Xinda Black LED Technology)

Color Temperature: 2000–9300K (Adjustable)

Lifespan: ≥100,000 hours

Voltage: 100–240 VAC (Wide Voltage Range)

Average Power Consumption: ≈160 W/m²

Maximum Power Consumption: ≈480 W/m²

Power Supply: Dual Power Backup (No screen blackout in the event of a single power supply failure)

Cooling: Fanless, Silent Passive Cooling
