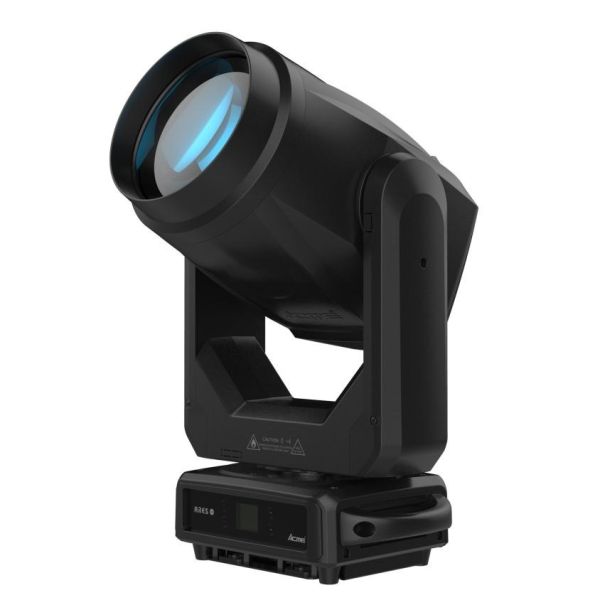

IP20 Used Stage Lights 500W Beam Moving Head Light ACME XP500 19R Stage Lighting Fixture
IP20 Used Stage Lights 500W Beam Moving Head Light ACME XP500 19R Stage Lighting Fixture
IP20 Used Stage Lights 500W Beam Moving Head Light ACME XP500 19R Stage Lighting Fixture
IP20 Used Stage Lights 500W Beam Moving Head Light ACME XP500 19R Stage Lighting Fixture
IP20 Used Stage Lights 500W Beam Moving Head Light ACME XP500 19R Stage Lighting Fixture
IP20 Used Stage Lights 500W Beam Moving Head Light ACME XP500 19R Stage Lighting Fixture
IP20 Used Stage Lights 500W Beam Moving Head Light ACME XP500 19R Stage Lighting Fixture
IP20 Used Stage Lights 500W Beam Moving Head Light ACME XP500 19R Stage Lighting Fixture
IP20 Used Stage Lights 500W Beam Moving Head Light ACME XP500 19R Stage Lighting Fixture
IP20 Used Stage Lights 500W Beam Moving Head Light ACME XP500 19R Stage Lighting Fixture
IP20 Used Stage Lights 500W Beam Moving Head Light ACME XP500 19R Stage Lighting Fixture
IP20 Used Stage Lights 500W Beam Moving Head Light ACME XP500 19R Stage Lighting Fixture
Specifications
Name :
Used Stage Lights
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
100
years :
2023
Model Number :
XP500
Protection Class :
IP20
Place of Origin :
China
Packaging Details :
flying box
accessories :
Light hooks, safety ropes, power cords, signal cables
Delivery Time :
5-8 work days
Brand Name :
ACME
Display and Interfaces :
LCD Screen, 3-pin/5-pin DMX Interface, Power Socket
Wattage of the light source :
500W
MOQ :
2
Prism Configuration :
4 types of combinable prisms (8-facet, 6-facet, honeycomb, rotating); 16-bit precision; adjustable rotation speed and direction.
Category :
BEAM
Price :
$450-$480
Description

ACME XP500 Beam Moving Head Light 500W 19R Stage Lighting Fixture For Concert Club Wedding Live Show Event Stage Performance Equipment

I. Core Specifications
  • Model: XP500 BEAM (Indoor)
  • Light Source: MSD Platinum 19R LL, 500W, 5,000-hour lifespan
  • Luminous Flux: 9,900 lm (Indoor version); 10,500 lm (IP-rated version)
  • Beam Angle: 1.3° (Ultra-narrow beam), featuring long throw distance and high intensity
  • Output Lens: 200mm large-aperture lens with high optical efficiency
  • Color Temperature: 6700K; Linear CTO adjustable from 2800K to 6700K
  • IP Rating: IP20 (Indoor)
  • Weight: 28 kg (Indoor)
  • Dimensions: 672 × 355 × 320 mm
II. Optical System
  • Color: 12-color wheel + Open (White), with rainbow effect; Independent CMY color mixing; Linear CTO color temperature correction; Optional High CRI filter (Ra > 90)
  • Gobos: Fixed Gobo Wheel (10 gobos + 3 effect gobos + Open); FX Effect Wheel (3 gobos + Open; stackable with the main gobo wheel)
  • Prisms: 4 combinable prisms (8-facet, 6-facet, Honeycomb, Rotation); 16-bit precision; Adjustable rotation speed and direction
  • Frost: Independent frost wheel + 2 soft-light filters; ensures excellent beam uniformity
III. Mechanical & Control
  • Movement: Pan 540°, Tilt 260°; 16-bit precision; Automatic position correction
  • Control: DMX512 (21/17 channels), RDM, Art-Net, sACN; 4-button touch interface + LCD display; Supports USB/DMX firmware upgrades
  • Cooling: Intelligent temperature control; Low noise operation; Extends light source lifespan (ACME Group)
IV. Key Features
  • Ultra-Narrow Beam: 1.3° beam angle; features powerful long-throw capability and strong penetration, ideal for projection in large venues.
  • High Brightness Output: 200mm large-aperture lens combined with high-efficiency optical design; achieves an illuminance of 882,000 lux at a distance of 10 meters. Long-Life Light Source: Features a 19R LL long-life lamp with a 5,000-hour lifespan, significantly reducing maintenance costs.
  • Rich Effects: Offers a comprehensive suite of effects—including CMY+CTO color mixing, multiple gobos, combination prisms, and frost—to meet the demands of complex lighting designs.
  • Stable and Reliable: Boasts 16-bit precision, intelligent thermal management, and IP66 protection (for the outdoor version), ensuring reliable performance even in harsh environments.
