Used Automatic Welding Robot OTC With DM500 Robotic Welding Machine
Used Automatic Welding Robot OTC With DM500 Robotic Welding Machine
Used Automatic Welding Robot OTC With DM500 Robotic Welding Machine
Used Automatic Welding Robot OTC With DM500 Robotic Welding Machine
Specifications
Place of Origin :
Shanghai, China
Brand Name :
OTC
Packaging Details :
Packed with standard packaged
Supply Ability :
20 Set/Sets per Month
Price :
negotiable
Model Number :
FD-V6S
Certification :
CE
MOQ :
1 set
Condition :
New
Machine Type :
Welding Robot
Applicable Industries :
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising C
Showroom Location :
None
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
Ordinary Product
Warranty of core components :
1 Year
Core Components :
PLC, Motor, Gear
Warranty :
1 Year
Key Selling Points :
Famous brand PLC
Weight (KG) :
178
Voltage :
200-600 V
Current :
40
Rated Duty Cycle :
60%
Usage :
welding, For welding
After-sales Service Provided :
Engineers available to service machinery overseas
Type :
Robot
Model :
FD-V6S
Reach :
1427 mm
Payload :
6 kg
Position repeatability RP (mm) :
0.08
Axes :
7
Product name :
OTC Welding Robot
Weight :
178 kg
Port :
Shanghai
Description

Used cnc welding robot OTC FD-V6S 7axis arc-welding with DM500 welder and ST pulse mig welding robot for OTC

Product Description

Typ FD-V6S
Kinematik Vertical artic. Type
Anzahl der Achsen 7
Arbeitsbereich (P-Punkt) R 1427 mm
Max. Traglast 6 kg
Wiederholgenauigkeit (*1) +/- 0,08 mm (*1)
Antriebssystem AC Servo Motor
Antriebsleistung 3600 W
Arbeitsbereich Arm J1 (Drehen) +/- 170°
J2 (Vertikalbew.) -145° ~+ 70°
J7 (Drehen) +/- 90°
J3 (Drehen) -170° ~+ 149°
Gelenk J4 (Drehen) +/- 180°
J5 (Neigen, Brenner) - 50° ~ 230° (*6)
J6 (Drehen) +/- 360° (*6)
Max. Geschwindigkeit Arm J1 (Drehen) 3,66 rad/s {210°}
J2 (Vertikalbew.) 3,66 rad/s {210°}
J7 (Drehen) 3,14 rad/s {180°}
J3 (Drehen) 3,66 rad/s {210°/s}
Gelenk J4 (Drehen) 7,33 rad/s {420°/s}
J5 (Neigen, Brenner) 7,33 rad/s {420°/s}
J6 (Drehen) 10,82 rad/s {620°/s)
Zulässige Belastung Handgelenk Zulässiges Moment J4 (Drehen) 11,8 Nm
J5 (Neigen, Brenner) 9,8 Nm
J6 (Drehen) 5,9 Nm
Zulässiges Trägheitsmoment J4 (Drehen) 0,30 kg/m²
J5 (Neigen, Brenner) 0,25 kg/m²
J6 (Drehen) 0,06 kg/m²
Umgebungstemperatur/Luftfeuchte 0 ~ 45°C, 20 ~ 80 % RH
(No condensation)
Gewicht 178 kg
Max. Traglast Oberarm 10 kg (*7)
Installationsposition F

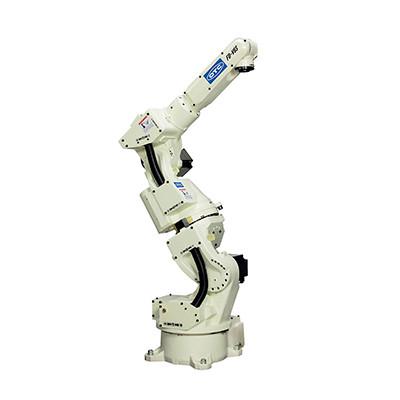

Our FD-V6S 7-axis robot is suitable for arc-welding, air-plasma cutting and material-handling applications. The additional payload supports additional arm attachments such as laser seam tracking or vision guidance cameras.

Click here to download more information.

ROBOT MANIPULATOR

• Rotation of the 7th-axis enables interference avoidance without changing the position and/or attitude of the end-of-arm tool

• Maintains the optimal angle and attitude of the end-of-arm tool at all times, resulting in enhanced weld quality and ease of programming

• Offers a wide working range with an independently articulated arm

• Seamless digital connection with all OTC DAIHEN brand welding power supplies

• Improved vibration restraining control provides smooth robot movement

• Built-in mechanical shock sensor

• Single source technology – all components are manufactured by OTC DAIHEN.

• Highly versatile design supports most welding applications

FD11 ROBOT CONTROLLER

• Windows XP based open architecture

• Large memory capacity and 40 Input / 40 Output control signals

• Advanced PLC functions allow for ladder diagram editing directly through the teach pendant

• Network capabilities – connects to Ethernet, DeviceNet, and PROFIBUS connections (may require additional hardware)

TEACH PENDANT

• Icon displays assist in quick & easy teaching

• 640×480 VGA color screen with LED backlight 65536 color display

• 3 position enable switch provides increased safety

• Multi-screen function allows user to view up to 4 screens simultaneously

• On-screen help function with complete instruction manuals

• Standard touch screen display with jog dial operation

Product image

Used Automatic Welding Robot OTC With DM500 Robotic Welding Machine
