Specifications
Place of Origin :
Shanghai, China
Brand Name :
KUKA
Certification :
CE
Packaging Details :
ONE Kuka KR 470 PA robot palletizing robot arm 6 axis with payload 470kg palletizing robot arm packing with fumigation wooden frame, WG:2,331 kg
Supply Ability :
999 Piece/Pieces per Month
Price :
$75,937.00/sets >=1 sets
Model Number :
KR 470
MOQ :
1 set
Applicable Industries :
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising C
Showroom Location :
None
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
New Product 2020
Warranty of core components :
1 Year
Core Components :
PLC
Condition :
New
Weight :
2331 kg
Dimension(L*W*H) :
Optional
Power :
380V
Warranty :
1 Year
Weight (KG) :
2331 kg
Payload :
470 kg
Maximum reach :
3,150 mm
Suppl. load, arm/link arm/rotating col :
. 50 kg
Suppl. load, arm link arm, max :
50 kg
Maximum total load :
520 kg
Number of axes :
5
Mounting position :
Floor
Weight (excluding controller), approx :
2,331 kg
Protection classification :
IP 65
Robot footprint :
1,240 mm x 1,240 mm
After Warranty Service :
Video technical support, Online support
Local Service Location :
None
After-sales Service Provided :
Online support
Port :
Shanghai
Description

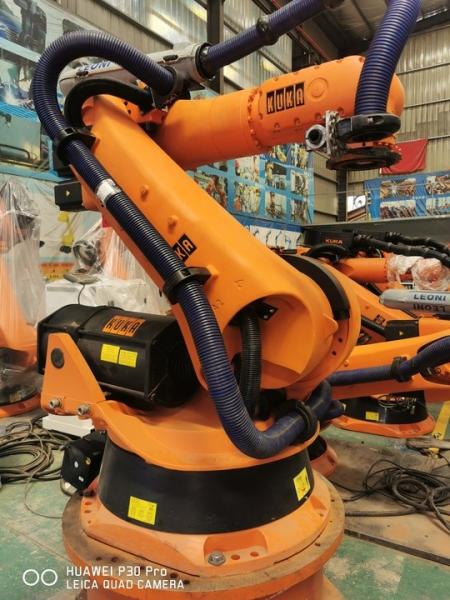

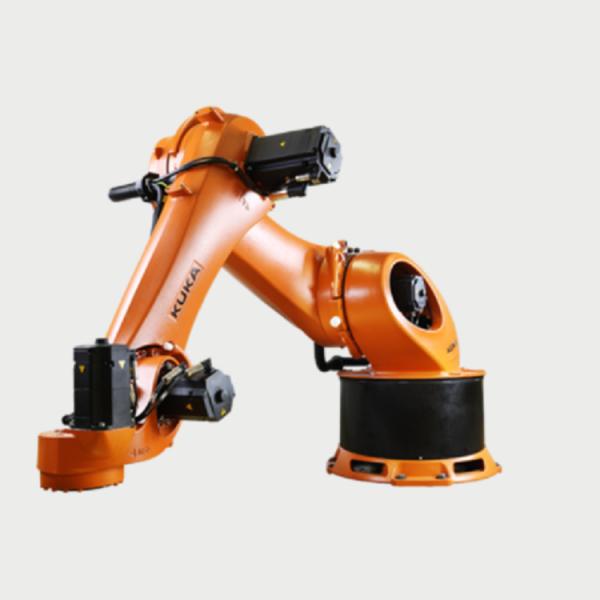

Kuka KR 470 PA robot palletizing robot arm 6 axis with payload 470kg palletizing robot arm

The KR 470-2 PA features a compact design, low weight and high speed in the heavy-duty category. It is optimally suited to
handling tasks with payloads of up to 470 kilograms. The palletizer can be flexibly adapted to its specific task by means of
booster frames of different heights.
Advantage:
  • Dynamic heavyweightThe KR 470-2 PA is ideally suited to high working speed in the heavy-duty category. It massively shortens cycle times and offers maximum process efficiency thanks to its compact design and low weight.
  • Spacious master of transformationThe KR 470-2 PA enables protected routing through the wrist and fast exchange of all commonly used energy supply systems. The hollow-wrist design features an opening with a diameter of 60 millimeters.
  • Tireless workerThanks to its compact design, the KR 470-2 PA works reliably and enables long maintenance intervals. Its protection against dust and water spray conforms to standard protection rating IP 65.
  • Far-reaching space-saverWith a reach of up to 3,150 millimeters, the KR 470-2 PA can access even the remotest angles and corners. It optimally uses the available space and works with the utmost precision.

Applications:

  • Material Handling Robots
  • Order Picking Robots
  • Packaging Robots
  • Palletizing Robots
KR 470-2 PA
Payload
470 kg
Maximum reach
3150 mm
Construction type
Palletizing Robots
Version environment
Standard
Mounting positions
Floor
Protection class
IP 65
