Used XCMG ZL50GN 5 Ton Wheel Loader 3.0m³ Bucket Capacity Weichai Diesel Engine Construction Mining Equipment
Used XCMG ZL50GN 5 Ton Wheel Loader 3.0m³ Bucket Capacity Weichai Diesel Engine Construction Mining Equipment
Used XCMG ZL50GN 5 Ton Wheel Loader 3.0m³ Bucket Capacity Weichai Diesel Engine Construction Mining Equipment
Used XCMG ZL50GN 5 Ton Wheel Loader 3.0m³ Bucket Capacity Weichai Diesel Engine Construction Mining Equipment
Used XCMG ZL50GN 5 Ton Wheel Loader 3.0m³ Bucket Capacity Weichai Diesel Engine Construction Mining Equipment
Used XCMG ZL50GN 5 Ton Wheel Loader 3.0m³ Bucket Capacity Weichai Diesel Engine Construction Mining Equipment
Specifications
Bucket Capacity :
3.0 m³
Max Tractive Force :
≥160 kN
Tire Specification :
23.5-25
Supply Ability :
20 Units per Month
Delivery Time :
3-5 Working Days
Max Breakout Force :
≥175 kN
Whatsapp :
+86 13761610734
Dump Height :
3,100 mm
Transmission Type :
Countershaft Power Shift
Operating Weight :
17,200 kg
Place of Origin :
Jiangsu, China
Rated Power :
162 kW @ 2,200 rpm
Dump Reach :
1,200 mm
Price :
Negotiable
Overall Dimensions :
8,180 × 3,000 × 3,490 mm
Rated Load :
5,000 kg
Brand Name :
XCMG
Packaging Details :
Container / Bulk Ship /Flat Rack
Model Number :
ZL50GN
Payment Terms :
T/T,Western Union
Engine Model :
Weichai WD10G220E23
Certification :
ISO 9001, CE
MOQ :
1 Unit
Description

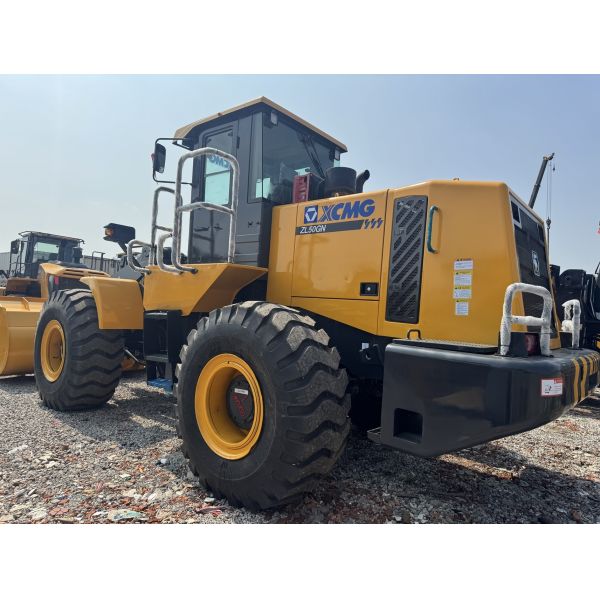

XCMG ZL50GN 5 Ton Wheel Loader

WHATSAPP +86 13761610734


The XCMG ZL50GN is a robust 5-ton wheel loader engineered for demanding construction, mining, and earthmoving applications. Built by XCMG, one of the world's top construction machinery manufacturers, this machine delivers exceptional performance, reliability, and fuel efficiency.

Key Features

  • Powerful Weichai WD10G220E23 Engine – 162 kW rated power at 2,200 rpm ensures strong traction and breakout force for heavy-duty operations.
  • 3.0 m³ Standard Bucket Capacity – Large capacity bucket reduces cycle times and improves productivity in loading and material handling tasks.
  • Countershaft Power Shift Transmission – Smooth gear shifting with four forward and three reverse speeds for versatile job site maneuverability.
  • Reinforced Frame Structure – Heavy-duty articulated frame with optimized load distribution provides excellent stability and long service life.
  • Spacious Operator Cabin – Ergonomic cabin with ROPS/FOPS certified structure, air conditioning, and excellent all-round visibility for operator comfort and safety.

Technical Specifications

Rated Load 5,000 kg
Bucket Capacity 3.0 m³
Operating Weight 17,200 kg
Engine Model Weichai WD10G220E23
Rated Power 162 kW @ 2,200 rpm
Max Breakout Force ≥175 kN
Max Tractive Force ≥160 kN
Dump Height 3,100 mm
Dump Reach 1,200 mm
Overall Dimensions (L*W*H) 8,180 * 3,000 * 3,490 mm

Condition

This used XCMG ZL50GN wheel loader is in excellent working condition. It has undergone thorough inspection and servicing including engine diagnostics, hydraulic system pressure testing, transmission performance verification, and structural integrity assessment. All maintenance records are available upon request.

Ready for immediate shipment and deployment. Contact us for detailed inspection reports, additional photos, and competitive pricing.
