Used XGC 300T Crawler Crane 18-96m Boom Heavy Lift Crawler Cranes
Used XGC 300T Crawler Crane 18-96m Boom Heavy Lift Crawler Cranes
Specifications
Brand Name :
XCMG
Model Number :
XGC 300t
Place of Origin :
China
MOQ :
One Crane
Price :
200,000-6,000,000 RMB per unit
Payment Terms :
L/C,T/T
Supply Ability :
Supply According to Customer Needs
Delivery Time :
According to Order Confirmation
Packaging Details :
Packing According to Customer Requirements
Maximum Travel Speed :
1.5 km/h
Maximum Line Speed :
120 m/min
Main Winch Line Pull :
300 kN
Boom Length :
18-96m
Auxiliary Winch Line Pull :
100 kN
Max Lifting Capacity :
300 tons
Maximum Tip Height :
152 m
Overall Dimensions :
15.5m x 12.6m x 4.5m
Engine Power :
298 kW
Max Luffing Jib Combination :
96m
Description

300t Crawler Crane In Good Working Condition, With A Jib Single Pulley, Main Arm Pulley Block, And High Durability.

XGC 300t(-I)Crawler Crane Technical Specifications


Crawler crane models: XGC 300t(-I)
Max rated lifting capacity: 300t
Maximum lifting moment: 1865t.m

Fixed jib working condition_ Single pulley hook characteristics without main arm pulley block and jib single pulley (HFS/2)

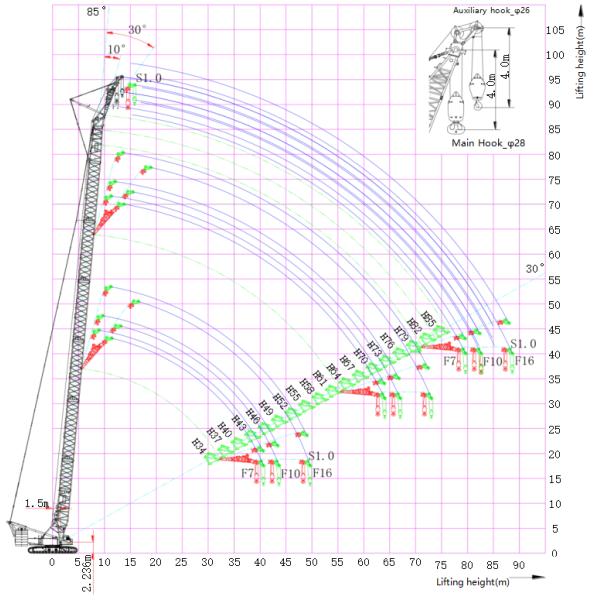

Working range of single pulley hook with single pulley of jib (HFS/2) without main arm pulley block

Used XGC 300T Crawler Crane 18-96m Boom Heavy Lift Crawler Cranes

Working range of single pulley hook with single pulley of jib (HFS/2) without main arm pulley block

Fixed jib working condition_No main arm pulley block with jib single pulley (HFS16/2_10 °_115t+40t) single pulley hook performance

Fixed jib

16m

HFS16/1

Main boom length(m)

Radians

34

40

46

52

58

64

70

76

*82

(m)

t

t

t

t

t

t

t

t

t

12

28.0

28.0

13

28.0

28.0

28.0

28.0

14

28.0

28.0

28.0

28.0

28.0

28.0

16

28.0

28.0

28.0

28.0

28.0

28.0

28.0

28.0

18

28.0

28.0

28.0

28.0

28.0

28.0

28.0

28.0

28.0

20

28.0

28.0

28.0

28.0

28.0

28.0

28.0

28.0

28.0

22

28.0

28.0

28.0

28.0

28.0

28.0

28.0

28.0

28.0

24

28.0

28.0

28.0

28.0

28.0

28.0

28.0

28.0

28.0

26

28.0

28.0

28.0

28.0

28.0

28.0

28.0

28.0

28.0

28

28.0

28.0

28.0

28.0

28.0

28.0

28.0

28.0

28.0

30

28.0

28.0

28.0

28.0

28.0

28.0

28.0

28.0

28.0

32

28.0

28.0

28.0

28.0

28.0

28.0

28.0

28.0

28.0

34

28.0

28.0

28.0

28.0

28.0

28.0

28.0

27.6

27.0

36

28.0

27.6

27.1

26.6

26.2

25.7

25.3

24.8

24.4

38

25.6

25.1

24.7

24.2

23.7

23.2

22.9

22.4

21.8

40

23.4

23.0

22.6

22.0

21.5

21.0

20.6

20.1

19.5

42

21.4

20.9

20.5

20.0

19.4

18.9

18.6

18.0

17.6

44

19.5

19.1

18.7

18.2

17.7

17.2

16.8

16.3

15.8

46

17.9

17.5

17.1

16.6

16.1

15.6

15.2

14.7

14.2

48

16.0

15.6

15.1

14.6

14.1

13.7

13.2

12.7

52

13.4

13.1

12.6

12.1

11.5

11.1

10.5

10.0

56

10.7

10.2

9.7

9.2

8.8

8.3

7.8

60

8.3

7.8

7.3

6.9

6.4

5.9

64

6.2

5.7

5.3

4.8

4.3

68

4.7

4.2

3.9

3.4

Notes:

1. “*”--Indicates that the main boom combination needs to use a 1.31m waist rope.

2. The tower arm rear pull plate needs to be removed from each boom section, and the tower arm guide pulley needs to be removed from the main boom reducer section.

3. When raising the boom, please place the crawler drive wheel behind the vehicle body. If the main boom length exceeds 73m, use an auxiliary crane or inclined wedge to assist in raising the boom.
