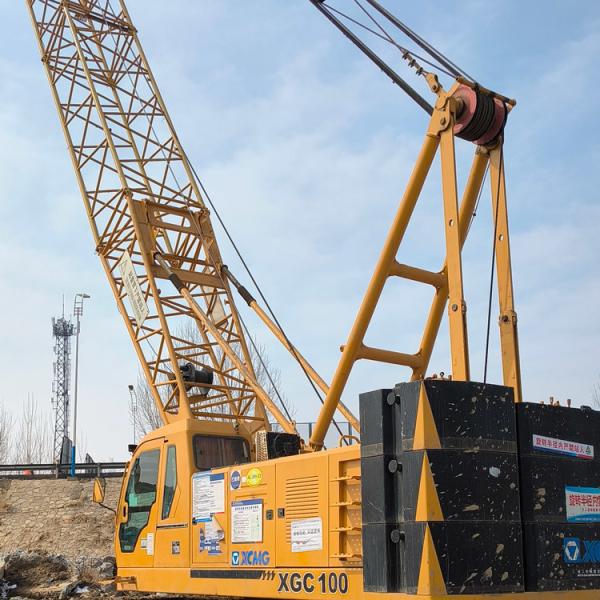

Urban Construction Used Crawler Cranes Xcmg Crawler Cranes Second Hand
Urban Construction Used Crawler Cranes Xcmg Crawler Cranes Second Hand
Specifications
Brand Name :
XCMG
Model Number :
XGC100A
Place of Origin :
China
MOQ :
One Crane
Price :
200,000-6,000,000 RMB per unit
Payment Terms :
L/C,T/T
Supply Ability :
Supply According to Customer Needs
Delivery Time :
According to Order Confirmation
Packaging Details :
Packing According to Customer Requirements
Max Travel Speed :
1.5km/h
Max Working Radius :
50m
Jib Length :
18m
Max Lifting Capacity :
100 tons
Max Lifting Height :
80m
Model :
XGC100
Slewing Speed :
0.7rpm
Boom Length :
61m
Max Gradeability :
30%
Engine Power :
298kW
Description

Second-hand 100T Crawler Crane With Many Applications In Urban Construction

XGC100A Crawler Crane Technical Specifications


Crawler crane models: XGC100A
Max rated lifting capacity: 100t/4m
Max rated lifting moment: 425 t.m
The longest combination of main boom working conditions: 61 m
The longest combination of single pulley working condition at the main boom end: Boom 61 m+Single pulley at arm end 1.1 m
The longest combination of fixed jib working conditions: Boom 52 m +fixed jib 19 m
Max transportation weight per piece: 24.1t
Max transport width per piece: 3.4m
Max transport height per piece: 3.04m

Typical working condition lifting performance table

XGC100A Fixed jib performance table - 30° installation angle (without main boom hook)

Table 5-1 XGC100A Fixed jib 7m Performance table - 30° installation angle (without main boom hook) Unit: t

Counterweight 34t

Radius(m)

Main boom length(m)

31

34

37

40

43

46

49

52

12

10.7

10.9

11.0

14

10.1

10.3

10.5

10.6

8.0

8.0

16

9.6

9.8

10.0

10.1

8.0

8.0

8.0

8.0

18

9.2

9.4

9.5

9.7

8.0

8.0

8.0

8.0

20

8.8

9.0

9.2

9.3

8.0

8.0

8.0

8.0

22

8.4

8.6

8.8

9.0

8.0

8.0

8.0

8.0

24

8.1

8.3

8.5

8.7

8.0

8.0

8.0

8.0

26

7.9

8.1

8.3

8.4

8.0

8.0

8.0

8.0

28

7.7

7.8

7.8

7.7

7.6

7.5

7.4

7.2

30

7.3

7.1

7.0

6.9

6.8

6.7

6.6

6.4

32

6.6

6.5

6.4

6.2

6.1

6.0

5.9

5.7

34

5.9

5.8

5.6

5.5

5.4

5.3

5.1

36

5.2

5.1

5.0

4.9

4.8

4.6

38

4.6

4.5

4.4

4.3

4.1

40

4.1

4.0

3.9

3.7

42

3.6

3.5

3.3

44

3.1

3.0

46

2.7

48

2.4

Table 5-2 XGC100A Fixed jib 13m Performance table - 30° installation angle (without main boom hook) Unit: t

Counterweight 34t

Radius(m)

Main boom length(m)

31

34

37

40

43

46

49

52

16

6.1

6.2

6.3

18

5.8

5.9

6.0

6.4

6.4

6.5

6.6

20

5.4

5.6

5.7

6.0

6.1

6.2

6.3

6.4

22

5.2

5.3

5.4

5.7

5.8

5.9

6.0

6.1

24

4.9

5.0

5.1

5.5

5.6

5.7

5.8

5.8

26

4.7

4.8

4.9

5.2

5.3

5.4

5.5

5.6

28

4.5

4.6

4.7

5.0

5.1

5.2

5.3

5.4

30

4.3

4.5

4.6

4.8

4.9

5.0

5.1

5.2

32

4.2

4.3

4.4

4.7

4.8

4.9

5.0

5.0

34

4.1

4.2

4.3

4.5

4.6

4.7

4.8

4.9

36

4.0

4.1

4.1

4.4

4.5

4.6

4.7

4.7

38

4.0

4.0

4.3

4.4

4.4

4.5

4.5

40

3.9

3.9

4.2

4.2

4.3

4.2

4.0

42

3.9

4.1

4.0

3.9

3.8

3.6

44

3.8

3.6

3.5

3.4

3.3

46

3.3

3.2

3.1

3.0

48

2.9

2.8

2.7

50

2.5

2.4

52

2.1

54

1.9

Table 5-3 XGC100A Fixed jib 19m Performance table - 30° installation angle (without main boom hook) Unit: t

Counterweight 34t

Radius(m)

Main boom length(m)

31

34

37

40

43

46

49

52

20

3.8

3.8

3.8

3.9

22

3.6

3.7

3.7

3.7

3.8

3.8

3.8

3.8

24

3.5

3.5

3.6

3.6

3.6

3.7

3.7

3.7

26

3.3

3.4

3.5

3.5

3.5

3.6

3.6

3.6

28

3.2

3.3

3.3

3.4

3.4

3.5

3.5

3.5

30

3.1

3.2

3.2

3.3

3.3

3.4

3.4

3.4

32

3.0

3.1

3.1

3.2

3.2

3.3

3.3

3.3

34

2.9

3.0

3.0

3.1

3.2

3.2

3.2

3.3

36

2.8

2.9

3.0

3.0

3.1

3.1

3.2

3.2

38

2.7

2.8

2.9

2.9

3.0

3.0

3.1

3.1

40

2.6

2.7

2.8

2.8

2.9

3.0

3.0

3.1

42

2.6

2.7

2.7

2.8

2.8

2.9

2.9

3.0

44

2.6

2.7

2.7

2.8

2.8

2.9

2.9

46

2.5

2.6

2.7

2.7

2.8

2.8

2.9

48

2.5

2.6

2.6

2.7

2.7

2.8

50

2.5

2.6

2.6

2.7

2.6

52

2.5

2.6

2.5

2.3

54

2.3

2.2

2.1

56

2.0

1.9

58

1.7
