55 Ton Used Crawler Crane XCMG 13m-52m Long Boom XGC55 Crawler Crane
55 Ton Used Crawler Crane XCMG 13m-52m Long Boom XGC55 Crawler Crane
Specifications
Brand Name :
XCMG
Model Number :
XGC55
Place of Origin :
China
MOQ :
One Crane
Price :
200,000-6,000,000 RMB per unit
Payment Terms :
L/C,T/T
Supply Ability :
Supply According to Customer Needs
Delivery Time :
According to Order Confirmation
Packaging Details :
Packing According to Customer Requirements
Max. Travel Speed :
1.5 km/h
Engine Rated Power :
242 /2100 kw/rpm
Dimensions :
13.7 x 3.4 x 3.4 m
Jib Angle :
15,30°
Weight With Boom :
61 t
Counterweight :
250 tons
Fly Job Length :
9-18 m
Max. Lifting Radius :
150 meters
Max Lifting Capacity :
55 t
Fuel Tank :
400L
Color :
Yellow
Hoist Speed :
128 m/min
Description

55T Crawler Crane With Good Adaptability In Harsh Environment, Good Quality

XGC55 Crawler Crane Technical Specifications

Crawler crane models: XGC55
Maximum rated lifting capacity: 55t/3.7m
Maximum rated lifting moment: 203.5t.m

Main technical parameters

XGC55crawler crane main technical parameters

Project

Unit

Value


Max rated lifting capacity

Main boom working condition

t

55

Single pulley at arm end working condition

t

6

Fixed jib working condition(Without main hook)

t

11.4

Fixed jib working condition(Without main hook)

t

10.4


Max lifting moment

Main boom working condition

t.m

203.5

Fixed jib working condition

t.m

128.4

Single pulley at arm end working condition

t.m

97.2


Size parameters

Main boom length

m

13～52

Main boom luffing angle

°

-3～80

Fixed jib length

m

7～16

Angle between main boom and fixed jib

°

10,30

Single pulley at arm end

m

1.1


Speed ​​Parameters

Max single rope speed of hoisting mechanism

m/min

125

Max single rope speed of main boom luffing mechanism

m/min

87

Max slewing speed

rpm

2.45

Max traveling speed

km/h

1.37


Engine

Engine Model

-

SC7H210.1G3

Engine rated power and speed

kW/rpm

155/2000

Emission standards

-

-

Machine weight (based on 13m basic boom, 55t hook)

t

46.3

Average ground pressure

MPa

0.06

Gradeability

-

30%

Max single piece shipping weight

t

28.6

Maximum dimensions of a single piece (turntable) in transport state (length × width × height)

m

12.04×3.45×3.36

Typical working condition lifting performance table

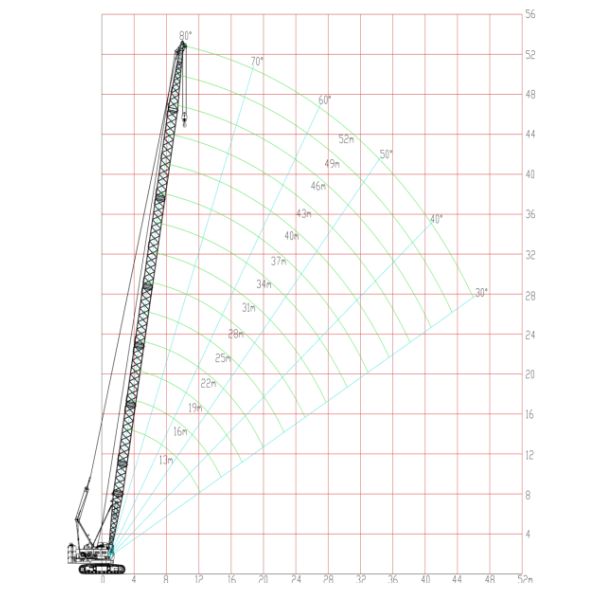

Crane working range diagram
