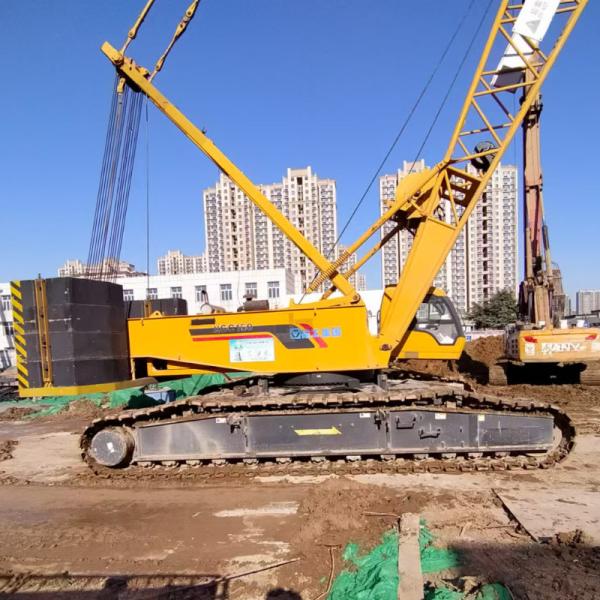

XGC130 Second Hand Crawler Cranes 55m Boom 130T Lifting Capacity
XGC130 Second Hand Crawler Cranes 55m Boom 130T Lifting Capacity
Specifications
Brand Name :
XCMG
Model Number :
XGC130
Place of Origin :
China
MOQ :
One Crane
Price :
200,000-6,000,000 RMB per unit
Payment Terms :
L/C,T/T
Supply Ability :
Supply According to Customer Needs
Delivery Time :
According to Order Confirmatio
Packaging Details :
Packing According to Customer Requirements
Max Boom Length :
55m
System :
Hydraulic
Maximum Gradeability :
30%
Hoist Speed :
128 m/min
Fly Job Length :
9-18 m
Max Weight :
50.2 tons
Model :
XGC 130
Gradeability :
30%
Engine :
200/183 KW
Operating Weight :
25 tons
Max Lifting Capacity :
130 T
Fly Jib Length :
13-25 m
Description

Second-hand XGC130 Hydraulic Crawler Crane For Construction Industry

XGC130 Hydraulic crawler crane

Ⅰ.Main technical parameters

Table 2-1 XGC130 Main technical parameters of hydraulic crawler crane

Project

Unit

Standard Configuration

Main boom working condition

Maximum rated lifting capacity

t

135

Main boom length

m

16～76

Main boom working angle

°

30～80

Fixed jib condition

Maximum rated lifting capacity

t

20

Fixed jib length

m

13～31

Main arm working angle

°

30～80

Main boom length

m

37～64

Fixed angle between jib and main boom

°

15°,30°

Speed ​​Parameters

Maximum lifting moment

t.m

721

Maximum single rope speed of main hoisting mechanism (No load, fifth floor)

m/min

118

Maximum single rope speed of auxiliary hoisting mechanism (no load, fourth floor)

m/min

112

Maximum single rope speed of main boom luffing mechanism (no load, fifth floor)

m/min

2×45

Maximum slewing speed

r/min

1.6

Travel speed (high speed/low speed)

Km/h

1.3/0.6

Gradeability

%

30

Average ground pressure

Mpa

0.083

Engine

Model

/

/

Rated Power

KW

206

Rated speed

Km/h

2200

Transport parameters

Machine weight (full configuration, main hook, 16m main boom)

t

125

Max mass of a single unit in transport state (including counterweight self-disassembly cylinder)

t

35.7

Maximum dimensions of a single unit (main machinery) in transport state (length × width × height)

m

11000×3000×3300

Ⅱ.External dimensions

XGC130 Second Hand Crawler Cranes 55m Boom 130T Lifting Capacity

Table 2-1 XGC130 Hydraulic crawler crane dimensions
