12Mpa Used Concrete Pump Trucks Euro4 46m 4 Section Vertical Reach
12Mpa Used Concrete Pump Trucks Euro4 46m 4 Section Vertical Reach
12Mpa Used Concrete Pump Trucks Euro4 46m 4 Section Vertical Reach
12Mpa Used Concrete Pump Trucks Euro4 46m 4 Section Vertical Reach
12Mpa Used Concrete Pump Trucks Euro4 46m 4 Section Vertical Reach
12Mpa Used Concrete Pump Trucks Euro4 46m 4 Section Vertical Reach
12Mpa Used Concrete Pump Trucks Euro4 46m 4 Section Vertical Reach
12Mpa Used Concrete Pump Trucks Euro4 46m 4 Section Vertical Reach
Specifications
Brand Name :
Sany
Model Number :
SY5310THB40B 46E
Certification :
CE
Place of Origin :
China
MOQ :
1 unit
Supply Ability :
10 units per month
Delivery Time :
30-35 days after down payment
Packaging Details :
RORO ship, Cargo bulk ship
Brand :
Sany
Chassis Brand :
Mercedes Benz Actros 4141
Engine model :
OM501LA.Ⅳ/3
Emission standard :
Euro4/11.946L
Max torque(N·m/rpm) :
2059/1800
GVW (Kg) :
40000
Overall dimension(mm) :
12600*2500*3990
Vertical reach :
46m/4 section
Pressure (Low/High-pressure) :
8.5/12Mpa
Description

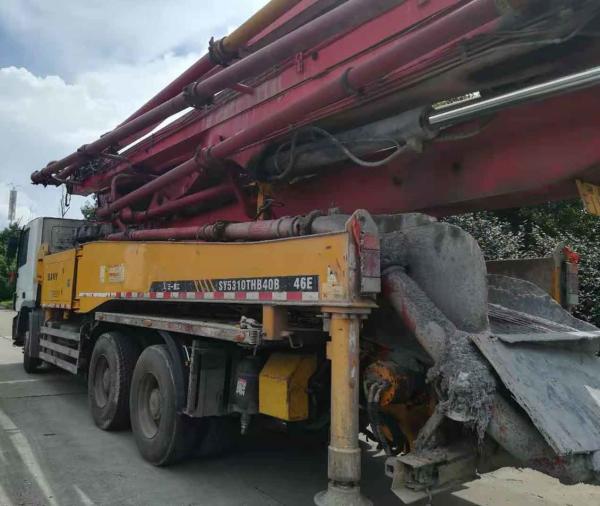

Used Sany 46M Concrete Pump Truck with Mercedes Benz Model 2013

Brand Sany
Chassis Brand Mercedes Benz Actros 4141
Model SY5310THB40B 46E
Released date 2013
Chassis Cabin Actros 4141
Drive mode 8*4
Engine model OM501LA.Ⅳ/3
Emissionstandard Euro4/11.946L
Max output power(Kw/rpm) 300/1800
Max torque(N·m/rpm) 2059/1800
Transmission model RTLO16918B 18 forward
4 reverse
Rear axle: ratio/loading capacity V Rod Left Rear/23.4 tons
Braking system Full air, dual circuit
Wheelbase(mm) 1700+4600+1310
Tire 315/80R22.5
GVW (Kg) 40000
Overall dimension(mm) 12600*2500*3990
Boom&Pump system Vertical reach 46m/4 section
Pipe size 125mm
End Hose(L*D) 3000*125mm
Output (Low/High-pressure) 140/100m³/h
Pressure (Low/High-pressure) 8.5/12Mpa
