196 Feet 60m Full HD 1080P Ethernet CAT 5e / 6 4K HDMI Extender
196 Feet 60m Full HD 1080P Ethernet CAT 5e / 6 4K HDMI Extender
196 Feet 60m Full HD 1080P Ethernet CAT 5e / 6 4K HDMI Extender
196 Feet 60m Full HD 1080P Ethernet CAT 5e / 6 4K HDMI Extender
196 Feet 60m Full HD 1080P Ethernet CAT 5e / 6 4K HDMI Extender
196 Feet 60m Full HD 1080P Ethernet CAT 5e / 6 4K HDMI Extender
196 Feet 60m Full HD 1080P Ethernet CAT 5e / 6 4K HDMI Extender
196 Feet 60m Full HD 1080P Ethernet CAT 5e / 6 4K HDMI Extender
196 Feet 60m Full HD 1080P Ethernet CAT 5e / 6 4K HDMI Extender
196 Feet 60m Full HD 1080P Ethernet CAT 5e / 6 4K HDMI Extender
Specifications
Place of Origin :
100pcs
Brand Name :
CANEOV
Certification :
CE ROHS
Model Number :
C
MOQ :
100PCS
Price :
$0.1 to $100/pcs
Packaging Details :
Bag or Giftbox
Delivery Time :
5 to 15 days
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500000pcs per month
Description
Product Description
196 feet 60m Full HD 1080P HDMI Ethernet Over ca5e/6/7 Extender Adapter with IR HDMI loop Out Option
Product description
Color:Gray
FEATURES and SPECIFICATIONS: Support HDMI 1.4a
Support 3D
Support IR control
Support highest video resolution 1080p/60Hz
Support 1.5Gbps data rate and tmds dock up to 148.5MHz
Support 8 bit deep color
Support AWG26 HDMI standard cable, input up to 10 meters, output up to 15 meters.
Signal transmission: By using single cat-5e or cat-6(recommended) cable instead of HDMI cable, it can extend the distance up to 60 meters between TX and RX.
Support video: 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support audio:DTS/Dobly/DSD
Max bandwidth:148.5MHz
Max Baud rate:1.5Gbps

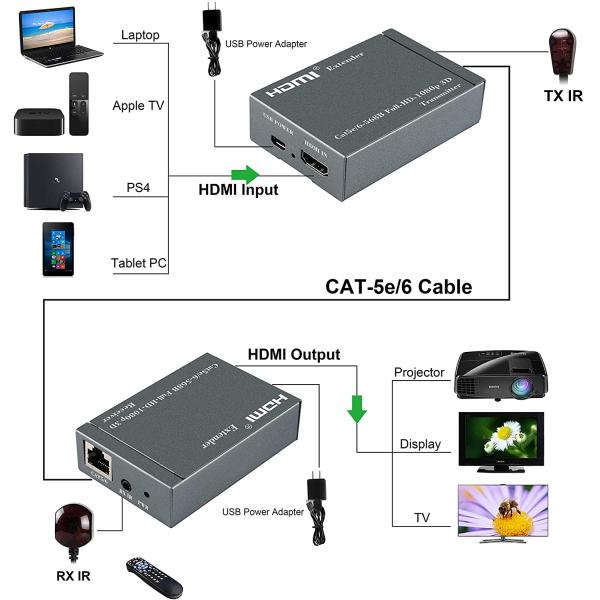

Operating and Connecting:
1. Connect one HDMI cable between source device and TX Extender, the max cable distance is 10 meters
2. Connect one HDMI cable between display device and RX Extender, the max cable distance is 15 meters
3. Connect TX and FRX Extender via single cat 5E/ 6 cable , the max distance is 60 meters.
4. Pls insert the IR RX cables and IR TX cables into the ports of IR RX and IR TX on Transmitter and Receiver.
5. Connect 5V power supply to the TX and RX.
6. LED indicator light
TX LED indicator light: When there is no signal input, it turns blue; When there is signal input, it turns red.
RX LED indicator light: When there is no signal input, it turns blue; When there is signal input, it turns red.


Package included:
TX HDMI Extender x 1pcs
RX HDMI Extender x 1pcs
DC 5V Power adapter x 2pcs
IR cable x 1pair
User Manual x 1pcs
