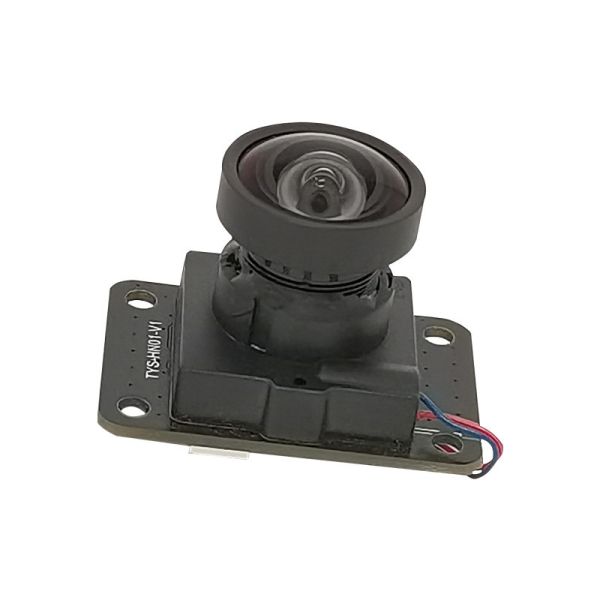

IMX415 4K 2K MIPI Camera Module:

TYS-HN01-V1 MIPI camera module use Sony IMX415 8MP 4K Rolling shutter CMOS image sensor with 1/2.8 inch 3840H*2160V approx 8.29 pixel And provide 12bit: 60.3 frame/s, 10 bit: 90.9 frame/s with MIPI interface.This chip has low power consumption,High sensitivity,low dark current and no smear are achieved through the adoption of R,G,and B primary color mosaic filters.

MIPI CSI-2 camera module IMX415 8MP 90fps FF built - in IR - CUT filter can automatically switch filters according to the ambient light intensity. In daylight conditions, it blocks infrared light to ensure the accuracy of color reproduction; in low - light or night conditions, it allows infrared light to pass through, improving the imaging effect in low - light environments.

Specification:

Technical & Mechanical:

• Power Supply: Analog=2.9V

  Digital=1.1V

  I/O=1.8V

• Stable image: -20°C to +60°C
• Operating Temperature: -30°C to +75°C
• Module Size : 32mm*22mm*26.5mm
• Windowing cropping mode
• Horizontal/Vertical direction-Normal/Inverted readout mode
• Synchronizing sensors function
• CDS/PGA function

More details of 8 million 4K 2K MIPI CSI-2 camera module:

Most popular 1/2.8 inch 3840*2160 4K 90fps fixed focus M12 fixed focus lens with IRCUT MIPI CSI-2 camera module for Sports cameras and handheld devices.The miniaturized module can be integrated into portable sports cameras to capture dynamic scenes such as cycling and skiing. The 4K video and high frame rate mode ensure smooth and non blurry images; It can also be used for handheld gimbal devices to improve the stability and image quality of mobile shooting.

Customization Sony IMX415 4K high speed 90fps IRCUT night vision wide angle lens MIPI security monitoring camera module. Suitable for indoor and outdoor medium distance monitoring (such as shopping malls, parks, warehouses), with a 1.45 μ m pixel sensitivity that can maintain clear images in low light environments (such as evenings, corridors), reduce noise, and facilitate the identification of suspicious behavior.

1/2.8 inch Sony 8MP IMX415 3840*2160 fixed focus IRCUT night vision M12 lens MIPI robot visions.Delivery robots or security patrol robots suitable for hotels, hospitals, and other places.Integrated into floor cleaning robots and delivery robots, environmental perception (such as obstacle avoidance and positioning) is achieved through image recognition.

High resolution and good color reproduction ability can accurately present various information on documents. MIPI FPC camera module with 8 million IMX415 CMOS color image sensor combined with OCR (Optical Character Recognition) algorithm, it can effectively improve the recognition accuracy of document text information. It has good recognition effect on various documents such as passports, ID cards, Hong Kong and Macao Home Return Permits, etc.
