Support customized ESP32 SMT32 MIPI Camera Module 5MP OV5640 AF FF 2K 1080P

OV5640 2K 1080P MIPI CSI-2 Camera Module:

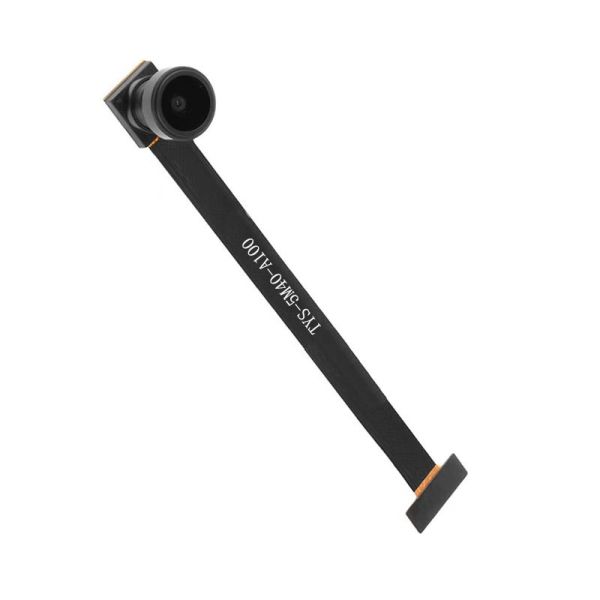

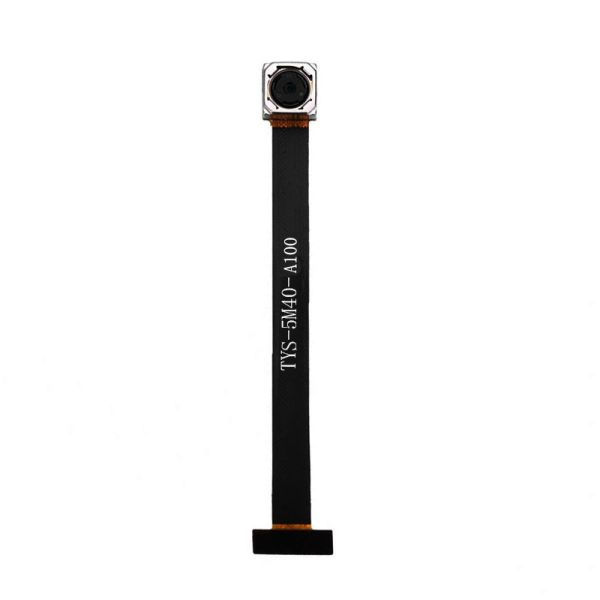

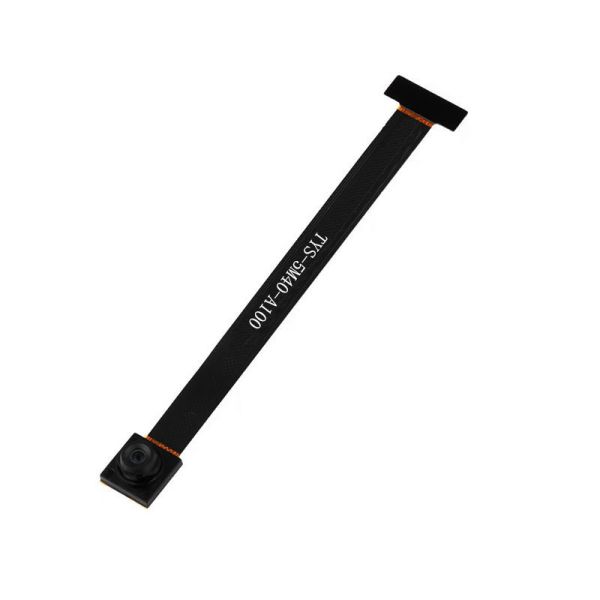

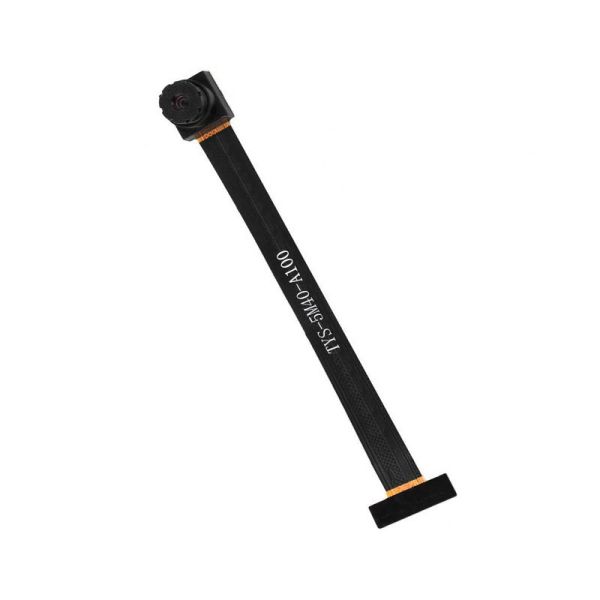

TYS-5M40-A100 MIPI CSI-2 camera module AF FF with ESP32 SMT32 Omnivision OV5640 2592*1944 5MP ISP CMOS sensor.Supports DVP and MIPI interface, and can choose the appropriate output mode according to different application scenarios and the interface requirements of the main control chip.

Support ESP32 SMT32 board 5 million 2K 1080P 30fps YUV ISP fixed focus night vision DVP or MIPI camera module.Equipped with functions such as automatic exposure (AEC), automatic white balance (AWB), automatic elimination of light stripes, automatic black level calibration (ABLC), and automatic bandpass filter (ABF), the image quality can be automatically adjusted to make the captured image more in line with human visual effects.

Specification:

Technical & Mechanical:

• Power Supply: Core:1.425-1.675(with embedded 1.5V regulator)

  Analog: 2.6-3.0V(2.8V typical)

  I/O: 1.8V/2.8V

• Power Requirements: Active: 140mA

  Standby: 20uA

• Stable image: 0°C to 50°C
• Operating Temperature: -30°C to 70°C
• Module Size: 8.5mm*100mm*5.15mm
• Dark current: 8mV/s @ 60°C junction temperature
• Support for internal and external frameSynchronization for frame exposure mode
• Support for auto focus control(AFC) with embedded AF VCM driver

More details of OV5640 2K 1080P application scenarios:

Support ESP32 SMT32 5 million OV5640 fixed focus 2K 1080P MIPI CSI-2 camera module for smart speaker and screen equipped device.It supports facial recognition unlocking, video calling (such as remote interaction with family), for example, smart speakers with screens capture user facial information or real-time images through OV5640.

High definition Omnivision OV5640 5MP 2592*1944 15fps 1080P 30fps ISP night vision wide angle smart toys MIPI camera module.used in children's companion robots, remote-controlled cars and other toys to achieve simple visual interaction (such as recognizing objects of specific colors and shapes and responding), or capturing images and transmitting them to parents' mobile phones (convenient for remote observation of children's play status).

Embedded development and DIY projects.Due to its mature driver and rich data, MIPI FPC camera module OV5640 YUV 5MP CMOS sensor is often used by developers for experimental projects on platforms such as Raspberry Pi and Arduino, achieving functions such as facial recognition, object tracking, and real-time image transmission.

In the field of robotics.OV5640 high definition 2K 1080P JPEG ISP no distortion lens MIPI CSI-2 camera module. it can serve as a visual sensor for robots, helping them accurately recognize the environment and objects, achieve autonomous navigation, target grasping and other functions, and enhance the intelligence level of robots.
