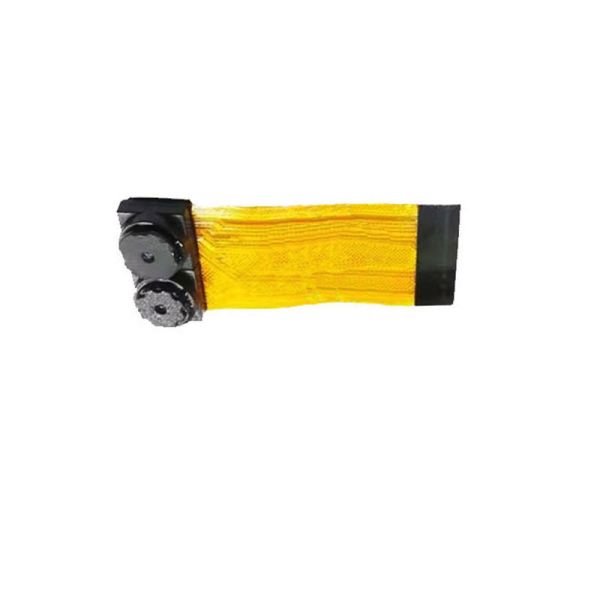

DVP Binocular Camera Module VGA 30fps No Distortion With 0.3MP GC0328 Low Power CMOS Sensor

GC0328 640*480 DVP Binocular Camera Module:

Sipeed-GA4A4.3 DVP binocular 650 and 850 IR filter camera module the 0.3MP 1/6.5 inch 640*480 resolution Rolling shutter GC0328 low power CMOS image sensor from GalaxyCore.Supports wide-angle lenses, with a larger field of view that can cover a wider range. Low power consumption, suitable for battery powered devices such as mobile robots, portable monitoring devices, etc.

Customization 0.3 million GC0308 VGA 30fps RGB+IR fixed focus with no distortion lens DVP dual camera module.As a low resolution camera module, it is relatively inexpensive and can reduce overall device costs, making it suitable for large-scale applications. Supports multiple operating systems such as Windows, Android, Linux, etc., making it easy to integrate into devices on different platforms.

Specification:

Technical & Mechanical:

• Power Supply: AVDD28: 2.7 ~ 3.0V

  IOVDD: 1.7 ~ 3.0V

• Power Consumption: 80mW @ 30fps VGA

  50uA @ standby

• Stable image: 0°C to 50°C
• Operating Temperature: -20°C to 70°C
• Module Size : 6mm*13mm*4.4mm
• Windowing support
• Horizontal/Vertical mirror

Details of VGA 30fps ISP RGB+IR DVP dual camera moudle applications:

For Access control and attendance system 0.3-megapixel GC0328 640*480 low power RGB and IR night vision low power DVP dual camera module.Commonly used for access control and attendance equipment in companies, schools, and other places. Binocular cameras can obtain three-dimensional information of the face and combine it with RGB images for face recognition. IR function helps to quickly and accurately recognize faces even in low light conditions.

Hot selling quality DVP binocular camera module robots vision 650nm and 850nm YUV GC0328 0.3 million VGA 30fps CMOS sensor with no distortion lens.Can serve as a visual sensor for robots, helping them perceive their surrounding environment. For example, a robotic vacuum cleaner can use the camera module to identify the location and distance of obstacles and furniture, and plan the cleaning path; Service robots can recognize pedestrians and objects, achieve autonomous navigation and obstacle avoidance, and can also be used to recognize user gestures, expressions, etc., achieving human-computer interaction functions.

Support OEM 0.3-megapixel GC0328 640*480 night vision low power RGB IR DVP dual security monitoring camera module can be used in places such as homes, shops, warehouses, etc. Through binocular vision, it is possible to more accurately detect the distance and motion trajectory of objects, achieving functions such as intrusion detection and cross-border alarm. At the same time, the combination of RGB and IR enables clear imaging during both day and night, while the infrared function can capture images in dark environments, enhancing the all-weather effectiveness of monitoring.
