Factory Direct Sales MIPI Camera Module IMX307 1080P 60fps HDR Wide Angle

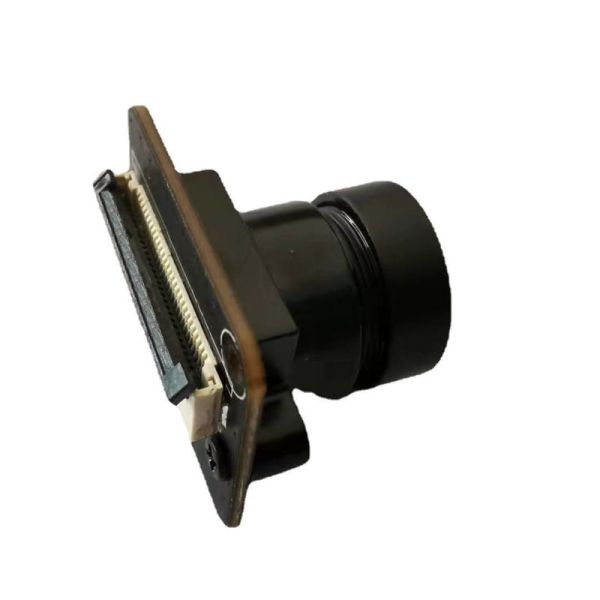

IMX307 1080P MIPI CSI-2 Camera Module:

TYS-3M07-V1.0 MIPI CSI-2 camera module 2.07-megapixel Sony STARVIS CMOS sensor resolution 1920*1080 low light for face recognition.The 1080P high-definition resolution combined with its excellent low light performance and wide dynamic range can clearly capture facial features under different lighting conditions, improving the accuracy and reliability of facial recognition.

Starlight level low illumination:

MIPI camera module Sony IMX307 1080P 30fps STARVIS backlit technology built-in ISP's 3D noise reduction algorithm for more stable color reproduction in low light conditions.

HDR and Wide Dynamic:

OEM IMX307 MIPI CSI-2 camera module 1920*1080 fixed focus support digital WDR implemented through multi frame synthesis.Wide dynamic range typically up to 120dB.

Specification:

Technical & Mechanical:

• Analog: 2.9V, Core: 1.2V, I/O:1.8V

• Bulit-in timing adjustment circuit,H/V driver and serial communication circuit

• Variable-speed shutter function(resolution 1H units)

• Input frequency:74.25MHz/37.125 MHz
• Module Size : 25*25*13.6mm
• CDS/PGA function

Details of IMX307 1080P MIPI camera module application scenarios:

Sony 1/2.8 inch 1920*1080 high speed 60fps HDR fixed focus low light MIPI CSI-2 camera module for auto drive system. The high dynamic range and fast response capability can help the vehicle better identify and respond to the surrounding environment, provide reliable data support for the vehicle's environmental perception, and improve the safety of automatic driving.

High qualiy 2 million 1080P 60fps WDR wide dynamic starlight night vision industrial testing MIPI camera moudle.For defect detection, size measurement, and other processes on industrial production lines. The high resolution and low noise characteristics ensure the accuracy of the testing results, and the wide dynamic range can adapt to different lighting production environments.

Full HD MIPI driving recorder camera moudle IMX307 starlight night vision FF 1920*1080 60fps support 24-hour parking monitoring function. When the vehicle is hit by a collision or makes abnormal noises, it can automatically start and shoot a video. With its high-definition, low-noise and other characteristics, it can clearly record the situation around the vehicle, providing safety protection for the vehicle when parked.

On sale 1080P high definition night vision 60fps IMX307 CMOS color image sensor with MIPI interface camera module in security monitoring field.It can be used in places such as banks, shops, and traffic intersections. Its wide dynamic range technology can effectively handle complex lighting conditions such as backlighting, indoor and outdoor strong light contrast, and clearly recognize key details such as facial features and license plate numbers. In home security, clear monitoring images can also be provided during both day and night to ensure home safety.
